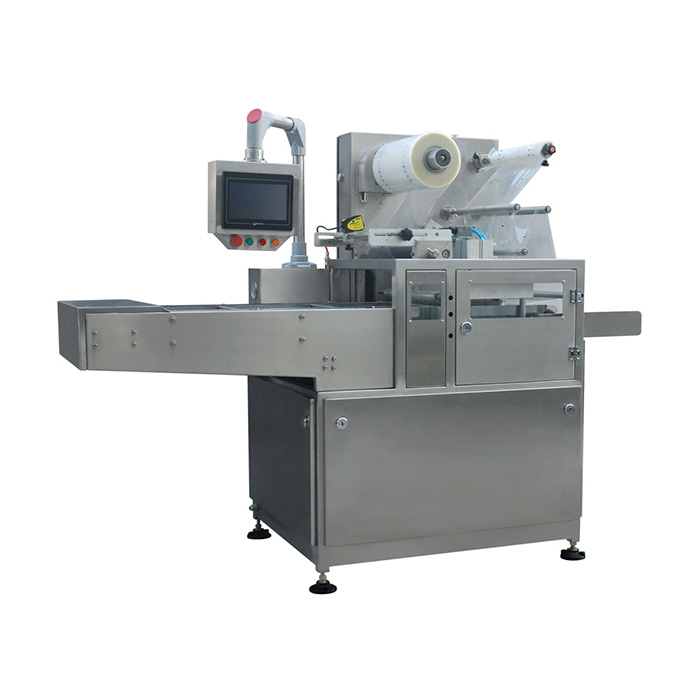

HVT-450A Tray Vacuum Gas flushing Packaging Machine



1.lt applicable to sealing kinds of PP or PE tray. could automatically finish the process of vacuuming, gas flushing, sealing and film cutting and so on.lt could do continuous packaging for higher efficiency.

2.Try Vlcum Gs-fushing Packaging Machinereplaces theais n the bag by protective mixture gas, inhibt the growth of most microorganisms which may make thefood prone to spoiling and trichinosis; decrease the respiration of the active food (like fruit) so as to prolong the fresh time.

3.lt is applicable to industrialized package of food or distribution of supermarkets.
The mould could be designed to meet the customers’ tray size.

4.lt adopts removable moulds which enable single machine to meet different sizes of moulds.

Product Detail:



Model HVT
Voltage (VHz) AC 380/50((three phases)
Power (Kw) 4.43
Sealing power (KW) 2
Ultimate vacuum pressure (KPa) 1
Flushing gas N2 or N2+CO2
Pump capacity (m3/h) 63
capacity(times/min) 10-12 for only sealing ;3-5 for vacuum,gas-flushing and sealing
Chamber Dimensions(LxW)(mm) 400x(200-400)
cooling type Water-cooling
External Dimensions (LxWxH)(mm) 2200×940×1750
Net Weight (Kg) Approx.670
