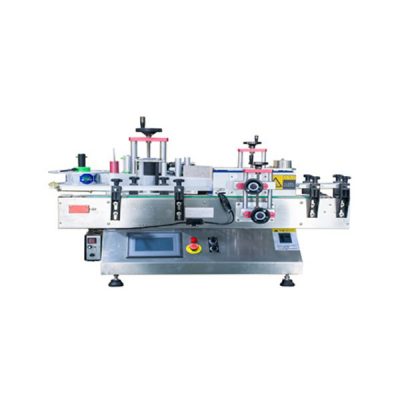

APC-T1 Round Bottle Side Face Labeler




Abel pre-feeding system makes the label feed stable, stickup smoothly and label position precise.Equipped with human-computer interface and PlC control system, Ensure more stable operation and easier handling.Label-feeding adopt tension design to ensure that the coding quality, and can accurately control the length and uniformity of the label.The label-rolling and label pressing adopt different structure by different bottles shape to ensure the quality of the labeling.

  1. All-cover type stainless steel host machine: the whole round bottle side face labeler is waterproof as well as rustproof.
  2. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life.
  3. Single positioning center guide pillar: a more stable for label delivery.
  4. Synchronous bottle divider: a more stable transmission for bottle.
  5. Bottom set of label brush: a more precision for casting label.
  6. Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
  7. Push-button control cabinet: a more humanized operation.
  8. Independent feeding material shelf: the position of the material shelf is optional at will.


Semi Automatic Tabletop Cans Side Face Adhesive Labeling Machine

1) How to choose the most suitable labeler for my need?

Answer: First of all, tell us what is the shape of your product, such as the cylindrical bottle, flat square bottle, elliptical shape, cone-shape, and then tell us the dimension of your labels, transparent label needs to be alone, we will recommend suitable machine to you according to your product.

2) Do you have manual or operation video for us to know more about the machine?

Answer: Yes, we will send the video link of the operating the machine to the customer, we have put all of the video on youtube website, convenience of our customers to see. After customers to buy the machine, we will configuration instructions in English to customer, together with the machine packaging.

3) If the round bottle side face labeler some spare parts damaged, how to solve the problem?

Answer: Under warranty, first of all please send pictures or shoot video tell us machine damaged parts, after the two sides confirmed, we can send the spare parts of the machine to you for free, the freight shall be the responsibility of the buyer, or send to you with next order from us.


Main technical parameters
Type Name Output Power supply Pressure Consumption air Net dimensions Weight
APC-T1 Round Bottle Side Face Labeler 20-120 220V/50HZ/0.15kw 0.4 0.2 2000*700*1650 280
