1.How to Define Automatic Liquid Filling Line?

The automatic liquid filling line as the name suggests, is an autonomous liquid processing and packaging line. It is an independent unit that guides and loads the bulk-capacity containers- either one by one or depending upon the number of filling heads in the machine- on the conveyors.

The containers are moved automatically through each station such as filling, capping, and labeling without any human supervision.

This machine is programmed to steadfastly load each container with a specified volume of varying liquid products.

Moreover, it is an excellent choice to fill and precisely dispense different viscosity products instantly in drums, kegs, bottles, gallons, etc.

2.Why it is Essential to Automate Your Liquid Filling Line?

Without an automatic liquid filling line, working staff fill products by hand, taking more time and effort. This also increases the error rate in the filling. Thus, it is essential to automate your liquid filling line as it offers several advantages such as:

High Filling Speed

The automatic liquid filling line is equipped with modern and advanced computerized, mechanical, and electric parts that work efficiently to fill hundreds of thousands of bulk-capacity containers per day.

It is estimated that on average, there are sixteen filling heads in the automatic liquid filling line which means about sixteen containers are filled simultaneously, resulting in more products in the market.

Superior Consistent Results

By using an automatic liquid filling line, you will have consistent and reliable filling results. If you require specific volume or weight products, so integrate this machine in your packaging line as it will give a specific outcome every time. Moreover, this equipment will ensure that there is no variation from batch to batch.

Customer Approval Assured

When you use an automatic filling line in your business then you are ensuring customer approval. This equipment fills and packages liquids with great precision and accuracy. Moreover, with this machine, you will deliver high-quality products in the market, gaining customer trust and in turn increasing buying chances.

Error-Free Filling

With an automatic liquid filling line, you are guaranteed error-free product dispensing. A minimal number of operators are required to manage and supervise it, therefore, decreasing the chances of human error while filling and packaging containers.

Simple Process

On the outside, it seems that an automatic liquid filling line has a complicated and difficult-to-understand operation. However, this is further from the truth. Operating this machine is quite easier as simple alterations on the HMI of the machine are required product changeover and it will configure itself with adjustments.

Lower Cleanliness Requirements

The automatic liquid filling line is furnished with state-of-the-art clean-in-place systems that make it easier to clean this equipment. It is superior hygienic construction which aids in sanitation efforts. Furthermore, it is disassembled conveniently for quick cleaning.

3.What Are The Industries that Require an Automatic Liquid Filling Line?

Almost every industry involves the filling of some kind of liquid product, hence, an automatic liquid filling line is an integral component of every industry. These industries rely on this equipment to deliver safe liquid products to the market.

Some important industrial applications of an automatic liquid filling line are discussed below for your understanding:

Food Industry

Hygiene and prevention of cross-contamination are essential in the food industry, therefore, this industry depends upon an automatic liquid filling line for dispensing food products. This equipment easily handles viscous, non-viscous, foamy, pasty, and particulate liquid food products such as jams, dressings, jellies, creams, ice cream, pastes, curry mixes, etc.

Beverage Industry

In the beverage industry, a wide range of liquids ranging from juices to water, milk to alcoholic drinks are filled. Often, an automatic liquid filling line is employed for the accurate dispensing of these liquids in clear and opaque containers. This machine measures and dispenses precise volumes in drums, kegs, and buckets.

Personal Care Industry

Since personal care products such as shampoos, liquid soaps, body washes, cleansers, face masks, etc. are loaded inside unique unusual shaped containers. This machine is employed in the personal care industry for handling these containers with care to avoid product spillage and splashes.

Chemical Industry

A safe filling is one of the most important aspects of the chemical industry, hence, an automatic liquid filling line in this industry prevents the risk of work-related injuries such as skin burns or fumes inhalation. In the chemical industry, this filling line dispenses disinfectants, liquid detergents, cleaners, acids, glues, paints, coatings, etc.

Agriculture Industry

In the agriculture industry, several liquid products such as pesticides, herbicides, bactericides, fungicides, nematicides, insect repellents, and liquid fertilizers are formulated and packaged. For this filling purpose, an automatic liquid filling line is used for obtaining superior quality and precise dispensing.

Automotive Industry

Automatic liquid filling line loads accurate amounts of automotive oils, coolants, lubricants, gasoline, etc. in large barrel drums, jerry cans, buckets, etc. This filling line is designed with anti-corrosive materials to handle harsh automotive liquids.

4.What are the Types of an Automatic Liquid Filling Line?

Now-a-day to run a factory or business one needs a different type of automatic liquid filling line. However, finding the right filling line can be difficult as many options are available in the market.  There are several ways to classify an automatic liquid filling line such as:

Classification Based on Type of Fillers

There are four kinds of automatic liquid filling lines when categorized based on the type of filler present in them.

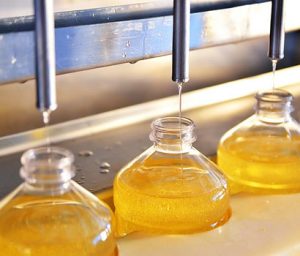

Gravity Automatic Liquid Filling Line

This gravity automatic filling line helps to fill accurate volume into the containers with the help of a tank above the filling head, here gravity plays a large part in completing the fill. There are valves present in the filling nozzles that can be opened and shut for a pre-set amount of time to allow products to flow from the tank into the waiting containers. As gravity plays an important role, that’s why it is best suited to free-flowing products.

Pump Automatic liquid Filling  line

Pump automatic liquid filling line not only allows for perfect volumetric fill but also adds a little boost to the movement of the liquid. This machine uses a single pump for each fill head that moves the product through the pipes.

Different pumps can be added like gear pumps, rotor pumps, cavity pumps, and lobe pumps, among others depending on the application. This filling line helps to fill thick liquid into the container.

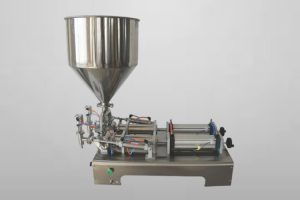

Piston Automatic Liquid Filling  Line

The piston automatic liquid filling line uses the opposite mechanism to fill the cylinders, liquid moves in and out of the piston cylinder. As the piston withdraws, the liquids are forced inside the cylinder. The piston returns after filling and again pushes material into another cylinder. This machine has accurate filling and is best for filling viscous products.

Overflow Automatic Liquid Filling Line

This automatic liquid filling line is not filling a specific volume but fills the container up to a certain level. The product flows inside the container until it reaches the desired level. The extra liquid is then returned to the tank via an overflow nozzle. This automatic liquid filling line is ideal for liquids in a transparent container where a product line on the shelf is obvious.

Classification Based on Design Configuration

There are two kinds of automatic liquid filling lines when classified on design configuration.

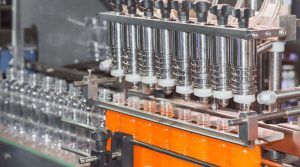

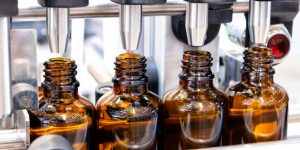

Inline Automatic liquid Filling line

The inline automatic liquid filling line is designed in a straight-line or U shape or Z shape configuration. This machine dispenses liquid by moving a container in a line. This machine has low production capacity because the filling process stops while the container filling.

Rotary Automatic liquid Filling line

The rotary automatic liquid filling line consists of a rotating table with multiple stations or filling heads positioned around its circumference. Empty containers that need to be filled are placed on the rotary table and are guided through the filling process.

It has a rotary star wheel in which various filling heads as well as capping and labelling heads are present. It has more production capacity than that of an inline automatic liquid filling line because filling is continuous in this machine without stopping while filling takes place.

Classification Based on Filling Material

On the based of filling material automatic liquid filling line is classified into the following:

Household Cleaning Packing Line

This automatic liquid filling line is used to deal with household cleaning products like disinfectants, soap, and liquid detergents in various containers.

Lubricant Oil Packing Line

The lubricant oil fillers are specially designed to fill oily, greasy, low or high-viscosity products effectively.  For example, lubricant oil, motor oil, engine oil, etc.,

Foodstuff Packing Line

The food industry mainly use automatic liquid filling line for packing food products either in cans, jars, bottles, gallons, etc., such as ketchup, frozen products like purees, pulses, etc.,

Edible Oil Packing Line

The automatic liquid filling line for edible oil packing is another important classification used for filling edible oil safely into assigned bottles, or cans. For example, cooking oil, therapeutic oil, aromatic oil etc.,

Chemical Packing Line

For the chemical filling, an anti-corrosive and highly safe automatic liquid filling line is used that is not only user-friendly but environmentally friendly too. The following filling line is used to treat products like bleaches, acids, alkaline, solutions in either moderate or large cans.

Personal Care Packing Line

The personal care packing line is designed for flexible filling of liquid products like shampoo, handwash, body wash, and mouthwashes into packing material.

5.What Is Safety Device Of Automatic Liquid Filling Line?

Automatic liquid filling line processes several kinds of liquid products. Some of which require specialized handling measures such as ‘explosion-proof device’.

This is required as the automatic liquid filling line handling processing of hazardous chemicals, ignitable liquids, and petroleum.
An explosion proof device such as intrinsically safe input-output components like sensors as well as different alarm systems. The device also includes reinforced wiring, explosion proof electric cabinets, anti-static conveyor systems, and motors as well as 100% explosion proof stainless-steel design.

The purpose of these explosion proof device is that they can withstand explosion while processing liquids that generate explosive gas or vapors. These gases have chances of ignition when catalyzed with sparks or flashes. Also, automatic liquid filling line comes with anti-static devices and high-quality ventilation systems that have little chances of sparking and release fumes and vapors in the atmosphere to eliminate detonation of such materials.

6.What are Unique Products Filled in Automatic Liquid Filling Line?

An automatic liquid filling line is the best solution for filling unique products because it can be customized in several ways depending on the nature of the products.

Some unique products dispensed by automatic liquid filling lines are detailed below for your information:

Liquid Materials with Particulates

These products have tiny chucks that cause issues in the product passageway therefore, the piston liquid filling machine with a wide-diameter cylinder is employed for filling jams, jellies, sauces, dressings, soaps, etc.

Molten Products

These are the materials that solidify at room temperature but also, melt at the high temperature. Consequently, these products are loaded inside the bulk-capacity container by the automatic liquid filling line as the hot liquid. After the filling process is complete, these products are set upon cooling. They include candles, crayons, deodorants, and lip balms.

Corrosion Resistant Feed

Certain acids, alkalis, and bleaches are harsh chemicals that interact with stainless steel tubing and result in its corrosion. These products are also filled using an automatic liquid filling line by replacing stainless-steel tubing and nozzles with plastic such as HDPE (high-density polyethylene).

7.What are the Machines Present in Automatic Liquid Filling Line?

Different high-tech and cutting-edge machines are integrated into the automatic liquid filling line. They work together to accomplish secure packaging of different liquid products.

All these machines are discussed one by one for your knowledge:

Manual Barreling Machine

It has a tumbler or drum-like component in which containers are loaded for their cleaning and polishing. This machine also assists in removing scratches and dents from the surface of reused containers.

Servo-Tracking Capping Machine

This machine secures the inner contents of the containers by capping or lidding them. Different kinds of caps such as ROPP, screws, and metallic lids are fixed at the opening of large-volume containers with a servo-tracking capping machine. As the name indicates, this machine has a servo motor system for regulating the motion of a capping device.

Labelling Machine

After the servo-tracking capping machine, next in sequence is the labeling machine. It sticks or attaches the film roll labels or stickers on the body of the liquid-filled containers. This labeling improves the product's shelf appeal and aids in product remembering.

Automatic Inkjet Printer

As the name suggests, this high-definition and superior-quality printing device prints important information such as bar code, manufacturer name, address, and product information. This machine is designed to handle high-capacity uninterpreted printing and has a higher resolution to handle small meticulous labels.

Stacker

Since it is quite difficult to carry heavier loads manually, a stacker machine is used for lifting and piling bulk-capacity containers. It is a hydraulic lift or an electric carrying machine that carries the containers and stacks them one over another.

Robotic Palletiser

For fast and efficient stacking of large-volume containers such as drums, IBCs, and buckets, robotic palletisers are utilized. It is a robotic arm that lifts the containers and piles them on the wooden pallet for secure packaging. This pallet supports and protects the containers.

Horizontal Strapping Machine

After palletising, a horizontal strapping machine ties the container pallets from the sides. Moreover, it compresses and squeezes the pallets before strapping them with heavy-duty PET or steel cables or tapes. It ensures the pallet shipment reaches the destination in one piece and averts the chances of containers fleeing from pallets.

Automatic Sword-Piercing Strapping Machine

This machine straps the pallets vertically via a blade-like component that goes through the pallet's bottom and ties it close to the surface. This strapping completely secures the pallets as well as stabilizes them.  Moreover, it keeps the container in place while transportation.

Automatic Wrapping Machine

This equipment fully encloses the pallet inside a stretch film. It is equipped with a robotic arm or turntable that wraps the film around the pallet and prevents the risk of mechanical damage to pallets during shipment.

Forklift Machine

It is the lifter machine that carries the completely packed pallets from the packaging area to the final shipment area for storage.

8.How to Determine the Best Type of Fill for Your Liquid Products in Automatic Liquid Filling Line?

Are you planning to launch a new product in the market or are you reevaluating your fill? It is best to choose the right type of fill for your liquid product in an automatic liquid filling line.

There are three ways to fill liquid materials such as:

Fill By Level

In this fill type, an automatic liquid filling line loads liquid products in containers up to a specific level irrespective of weight and volume of materials. This is usually done to improve the visual appeal of the container so that it seems that every product container holds the same quantity of liquid.

Filling by level is employed for filling beverages, beer, and cosmetic liquids in clear containers. These products appear uniform on the display shelf and there is no visual difference in the level of products.

Fill By Weight

Automatic liquid filling line dispenses weighed quantity of liquid materials if they are filled by weight. When this approach is used, there are slight differences in the level of the filled container, but, they have the same quantity of product. This filling method is used for dispensing food products such as jams, jellies, sauces, etc.

Precision in the weight of these products is more important than the fill line of containers.

Fill By Volume

This is a widely employed filling approach in an automatic liquid filling line. In this case, a set volume of fluid liquid product is dispensed inside bulk-capacity containers. When products are filled by volume, they occupy the same space, however, there are some small differences from container to container.

This method is commonly employed for filling glass and plastic containers with chemicals, pharmaceuticals, oils, water, etc.

9.Why Maintenance of Automatic Liquid Filling Line is Essential?

Regular maintenance goes a long way in upholding the productivity of a well-functioning automatic liquid filling line. If any part becomes faulty due to the non-adherence to proper maintenance schedule, then you would encounter severe packaging delays causing a loss of profits.

There are various benefits of maintaining your automatic liquid filling line including:

Economizing Benefits

Downtimes usually happen without any warning and result in unforeseen consequences, ranging from low productivity to high repair expenses. Missing shipment deadlines lead to dissatisfied customers which in turn increases expenses. Therefore, doing daily preemptive maintenance assists in preventing these consequences and helps in saving repair expenses in the longer run.

Boosting Filling Efficiency

In addition to saving expenses, routine preventive maintenance of an automatic liquid filling line also reduces part failure which in turn boosts efficiency. Due to regular maintenance, components work at their full capacity and also load the liquids in a much shorter time.

Improved Safety

Working personnel inspect electrical, mechanical, and safety system daily and can foresee hazardous situations well before time. In this way, maintenance of automatic liquid filling line help to improve the safety of the production plant and prevents the risk of work-related injuries or other accidents.

Maintaining Spare Part Inventory

Last but not least, by keeping a routine maintenance schedule, you can estimate how much longer old components last and you can order spare parts before their breakdown. This saves the hustle and lengthy wait for shipment and also prevents production downtime.

10.What are the Basic Problems and Solutions foran Automatic Liquid Filling Line?

Technical Problem	Cause	Solution

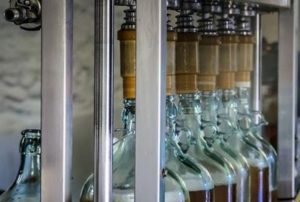

Varying Liquid Filling	Uneven level of machine Mis-match spacer and nozzles Wrong programming of fill time Blockage or dripping from the filling nozzles	Properly level the machine on the floor Use compatible spacer and nozzle Adjust the settings of fill time Inspect the nozzles for product dripping and rinse them with detergent water
Nozzle and Hose Become Clogged	Dust and debris buildup Stickiness of liquids with nozzle and hose	Clean the nozzles and hose with detergent water Thoroughly rinse the filling unit after each batch
Dripping	Untighten or faulty ball valve Corroded or defective O rings Obstruction in the syringe assembly Defective or old nozzles	Tauten or replace the ball valve Repair or replace the O ring Clean the syringe assembly Replace filling nozzles
Filling System Do Not Dispense Liquids inside Containers	Valves in the nozzles are closed Incorrect pressure of compressed air Fuel injection cylinder drips	For the opening valves, again turn on the machine Alter the pressure settings of compressed air Repair the leakage in the fuel injection line
Immovable Head Dive	Interruption in a compressed air supply Wrong setting for head dive on HMI Pipelines that control the movement of head dive become faulty	Fix the compressed air supply line Modify the setting of the head dive Repair the pipelines
Leakage	Faulty O rings Untightened filling nozzle clamps The positioning of gaskets is incorrect	Replace O rings Properly tightened nozzle clamps Correct the positioning of gaskets

Conclusion

An automatic liquid filling line is an essential component of industries where liquids are processed and packed. This machine comes with several benefits and streamlines your production. With this equipment, production control is achieved by automating and speeding up filling. This helps in reducing operational costs and also bringing high profits. Quick alteration of fill setting increases precision and lowers product wastage. If you need any assistance regarding this machine, you are more than welcome to contact us.
