Bottle Packing Machine: The Complete Buying Guide In 2024

Scrolling down to get the best bottle packing machine? That's great! You have come to the right place. Well, this buying guide about Bottle Packing Machine is especially composed to bring in your knowledge not only the access to suitable machine but also enlighten you with different aspects of a bottle packing machine.

Bottle packing machine is becoming inevitable in medical industry, veterinary sector, food industry, and other non-food industries like cosmetic where the quality of products is retained by accurately packing them in bottles. So, these filled bottles must be packed in a safe way for which Bottle Packing Machine is used. What this machine basically is? How it functions? And what are its benefits? To know keep reading!

Add a header to begin generating the table of contents

1.What Is A Bottle Packing Machine?

JF-A160-16 Medium Speed Automatic Multifunction Capsule Tablet Pill Counting Line

Bottle packing machine refers the large assembly of interconnected machines which perform the task of packing different types of bottles. These machines include a bottle unscrambler, tablet counting machine, desiccant inserting machine, capping machine, induction sealer, and labeling machine.

In this way, bottle packing machine can be described as a comprehensive bottle packing line where the machine is responsible to process bottles from different phases. The machine can handle multiple products encompassing tablets, capsules, pellets and various sizes and shapes of bottles. Moreover, it is highly efficient and support precise way for bottles packing.

2.Explain The Benefits Of A Bottle Packing Machine?

Bottle packing machine can give you lots of benefits by ensuring the safety and integrity of products as well as bottles. These advantages are as follows:

High Automation

High level automation icon- Picture Courtesy: supplygym.com

Medium and large-scale industries are the busiest places consistently working to meet the best possible production targets. Similarly, bottle packing machines will always give you efficient work with least manual interference and high accuracy rate. It can be easily understood by looking into the fact that high speed bottle packing machine by Allpack has the highlight output ratio of packing 90 bottles per minute.

Enhance Protection

Bilayer tablets bottle- Picture Courtesy: usana.com

Bottle packing machine can give your bottles high level of protection against dust, moisture, and light. For instance, their corrosion resistant stainless-steel body ensure that tablets, capsules, and candies being processed are in protected environment.

Multi Tasking

Another most fascinating attribute of a bottle packing machine is that it is multi tasking in a way that it performs the task of bottles unscrambling, filling, desiccant inserting, capping, sealing, and labeling etc. So, it removes all the bothers being made for undergoing the bottles from different stages separately.

Versatility

Bottles of different flavored gummies- Picture Courtesy: pipelinevalor.globo.com

Another most significant advantage of a bottle packing machine is its versatility that extends to numerous industries and multiple types of bottles with varying shapes and sizes. So, no matter what kind of bottles and products you are processing, this machine will always be ready to pack them.

High Precision

Softgels precisely arranged in heart shapes- Picture Courtesy: usana.com

Bottle packing machine has automatic system to carry out the different steps of bottle packing. All these units have fitted detection system to counter the errors; counting unit remove the broken pallets, bottle detector reject unfilled bottle, desiccant inserting unit fill one bag in one bottle. Similarly, the machine gives you high precision in each and every step of bottle packing.

3.What Type Of Bottles Can Be Packed By Using A Bottle Packing Machine?

A bottle packing machine is best suitable to process all kinds of small to large bottles with varying shapes and material. Following is the brief description:

Plastic Bottles

Capsule plastic bottles- Picture Courtesy: helloglow.co

Plastic bottles are commonly used bottles for packaging of pills, confectioneries, chocolate balls, and laundry powder etc. So, all kinds of durable and thin plastic bottles are suitable to be packed by a bottle packing machine without harming their structure.

Glass Bottles

Woman multi vitamin gummies display- Picture Courtesy: mariannetaylor.com

Glass bottles are highly hygienic and completely safe from corrosion and bacterial presence due to which pharmaceutical solid drugs, food tablets, and chemical chlorine tablets are often delivered in glass bottles. Therefore, different types of small to large glass bottles can be easily packed together by using a bottle packing machine.

Jars

Jars

Mouthwash tablets in jar- Picture Courtesy: zerowastenest.com

Jars are large, big containers usually made from durable glass. As they are having larger capacity to hold products, most of the confectioneries like gummies, jellies, and beans are delivered in jars. Hence, jars can also be packed by a bottle packing machine.

4.Enlist The Products Which A Bottle Packing Machine Is Capable To Process?

You may wonder after knowing that how many products are eligible to be counted and packed by a bottle packing machine. Let's explore these all one by one!

Tablets

Tablets

Tablets presentation idea- Picture Courtesy: plentylifestyle.usana.com

Tablet is a solid form of dosage made from the compression of dry powders. Tablets are the top priority of most of the healthcare industries to deliver drugs. Apart from this, confectioneries can also be in form of tablets like milk tablets and chocolate tablets etc. So, a bottle packing machine can perfectly count and pack all forms of tablets into bottles.

Capsules

Softgel capsules- Picture Courtesy: hubshifa.com.au

Capsule is among other form of drugs through which both liquid and solid dosage can be delivered. Hence, all kinds of hard gel and softgel capsules are eligible to be processed by this machine.

Candies & Bubble Gum

Multiple colorful candies in jar

Candies and bubbles are hard confectioneries often in sweet and occasionally in sour taste. They are also meant to be packed in bottles after precise counting for which a bottle packing machine is best suitable.

Chocolates & Gummies

Gummies

Chocolate gummy bears in bowl- Picture Courtesy: gazedandenthused.com

Chocolate balls are the most favored by people of all ages. Similarly, gummies are now found everywhere in pharmaceutical, nutraceutical, and food industries. That's why, you can employ this bottle packing machine to not only count but undergo them through all the essential steps of bottle packing.

Pellets & Seeds

Seeds

Pumpkin seeds- Picture Courtesy: treehugger.con

Pellets, seeds, and similar granules are often abundant in amount that it is impossible to pack them manually. Hence, a bottle packing machine is made in such a way to support all these goods for their correct packing in bottles.

Laundry Pods & Shooting Balls

Laundry pods

Laundry pods are small plastic film pouches encasing liquid detergent, while as shooting balls are spherical soft balls used for shooting by kids. A bottle packing machine can be utilized to pack these items in different bottles.

5.How Does A Bottle Packing Machine Work?

Bottle packing machine adopts a very straightforward and consistent operation. Starting from bottle unscrambling, it ends with providing a finished bottles after labeling step. The underlying steps will clearly demonstrate its working process in detail:

Bottle Unscrambling

Bottle unscrambling- Picture Courtesy: Icon equipment

The very initial step of a bottle packing machine starts with bottle unscrambling. This task is performed by the bottle unscrambler. The bulk of bottles is loaded onto the machine's rotary disc. When the disc adopts rotary movement, these bottles start taking the place in molds which are located at the corner.

Similarly, the position of bottles is set in a way where the bottles stand in upright position with opening on the top side. These bottles are then sequentially moved towards filling machine through conveyor.

Bottle Filling

Bubble gum filling into bottles- Picture Courtesy: cremer.com

The second step is bottle filling which is carried out by the second unit of a bottle packing machine. This unit perform dual tasks of product counting and their filling into bottles. In addition, the material is dropped from hopper onto vibratory trays and then counted in counting compartments.

Afterwards, these counted objects are accurately filled into bottles through filling heads. When the bottles are filled, they are detected by the sensors located on conveyor. If any bottle remains unfilled, it will be rejected by the machine.

Desiccant Inserting

Desiccant bag inserting into bottles- Picture Courtesy: accutekpackaging.com

When bottles get filled with counted products, they are conveyed to the desiccant bag inserting machine. The machine when detect the presence of bottles, start pulling the adjoined desiccant bags from roll, cut the bags, and dispense these silica gel bags into bottles by following the principle of one bottle one desiccant bag.

Bottle Capping

Bottles capping process- Picture Courtesy: accutekpackaging.com

The fourth step encompasses bottles capping and screwing. When bottles are conveyed to capping machine, it first supplies the filled bottles with caps. Similarly, the caps are well screwed by the spindle on both sides. Ultimately, an airtight closure of bottles is realized.

Induction Sealing

Bottles undergoing induction sealing- Picture Courtesy: trumarkindia.com

Proceeding further, the capped bottles are processed for stringent sealing by induction sealer. As the bottles move by the induction sealer, an electric current is applied to the induction coil which in turn radiate magnetic field. This magnetic field heats the foil to melt at an exact temperature and stick to the neck of bottle. Hence, airproof sealing of bottles get completed.

Bottle Labeling

Bottle labeling- Picture Courtesy: Wire Labeling Machine

This is the final step of a bottle packing machine where filled and sealed bottles are passed through the labeling phase. When bottles are conveyed to this unit, the machine start pulling labels from label rolls, peel them, and apply them around the bottles. At the same time, fur brush tightens the labels around every passing bottle.

Bottle Discharging

Bottles discharging is the last step, when finished and packed bottles are conveyed by the conveyor from bottle labeling machine to a bottle collection unit.

6.Describe The Different Units Or Components Of A Bottle Packing Machine?

Bottle packing machine is a long assembly of different units which perform respective task to carry out appropriate bottle packing. Their explanation is given below:

Components of Allpack's JF-2000-32 Automatic Multifunction Capsule & Tablet Pill Counting Line (High-speed Line)

No	Machine	Description	Structure

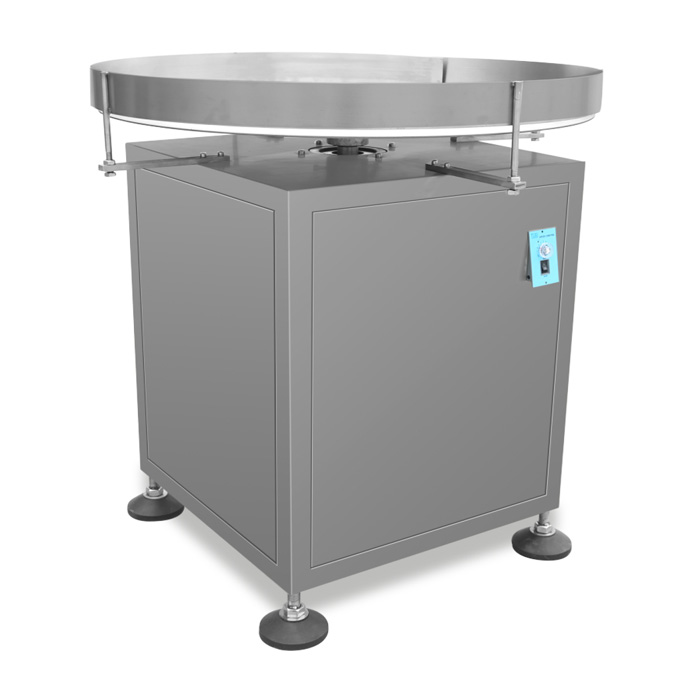

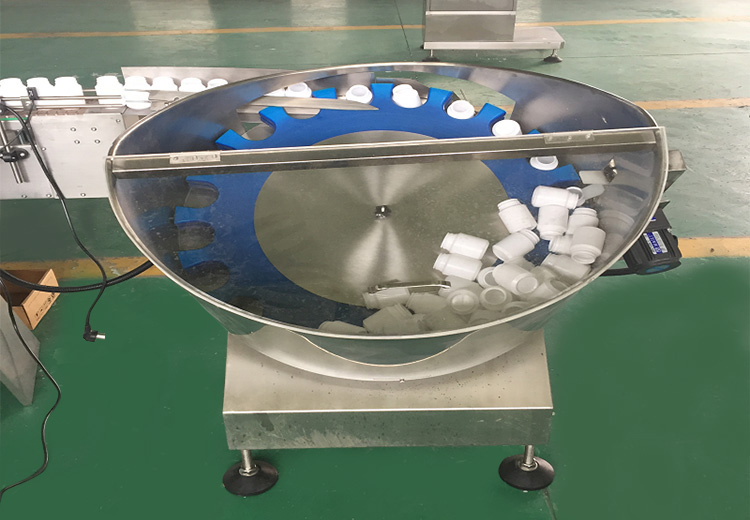

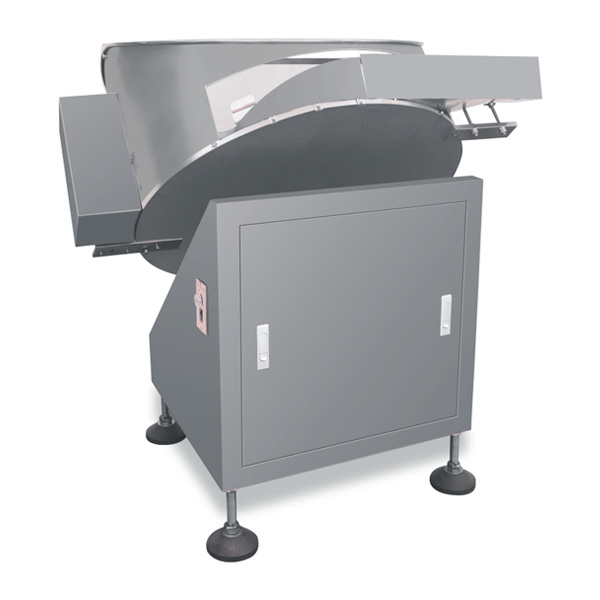

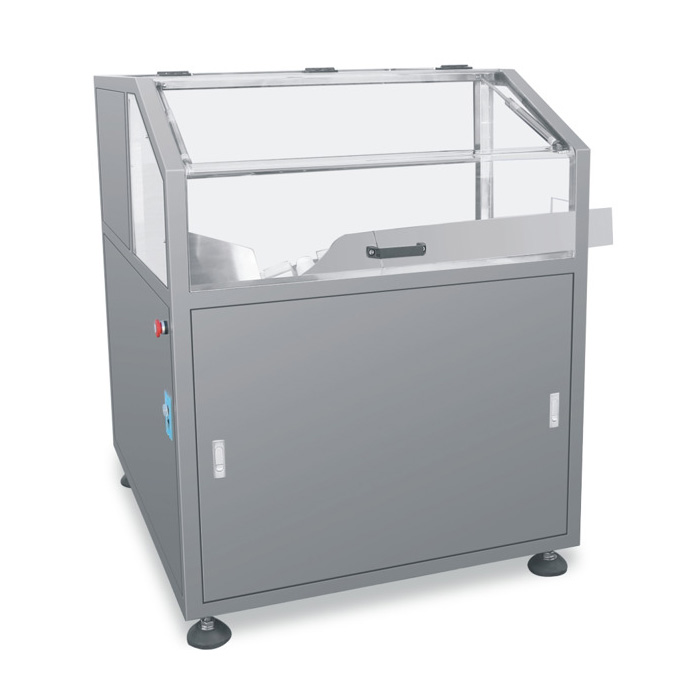

1	Bottle Unscrambler	Bottle unscrambler is an automatic machine that constitute the very initial part of a bottle packing machine. It is used to align the randomly positioned bottles by processing them in a rotary disc.	It is made up of several components including a hopper, unscrambling station, conveyor, electric cabinet, main frame, and control system etc.
2	Electronic Counting Machine	Electronic counting machine is one of the core part of a bottle packing machine. Its function is to accurately count the large number of objects and precisely fill them in separate bottles.	The structure of an electronic counting machine is robust with main parts including a stainless steel body, hopper, rotary trays, counting compartments, detection system, dust collection system, empty bottle rejection system, touch screen, and filling heads.
3	Automatic Desiccant Inserter	Automatic desiccant inserter is yet another crucial part of a bottle packing machine integrated for the purpose of supplying filled bottles with silica gel bags.	It consists of a feeding supplier, support roller, jog belt assembly, sensor, fix guide, cutting knives, outfeed, adjustment screws, electric panel, and control system etc.
4	Capping Screwing Machine	Another unit of a bottle packing machine is a capping screwing machine. This unit perform the function of supplying bottles with caps and screwing them tightly.	The machine is made up of a cap elevator, bottle separator, cap feeding chute, cap pressing part, capping part, synchronous belt, conveyor, and machine frame.
5	Induction Sealer	Induction sealer is an excellent part of the bottle packing machine designed to ensure the capped bottles with stringent sealing. It uses an electromagnetic radiation to melt the foil of caps, so, that it will stick to bottle mouth	The overall structure of an induction sealer is made up of a compact structured stainless steel body, induction coil, heating system, conveyor, speed regulator, and induction sealing head etc.
6	Labeling Machine	The labeling machine constitute the last part of a bottle packing machine. It simply works to label finished bottles with self adhesive labels.	It is an assembly of various components comprising label plate, label pressing fur brush, conveyor, label pulling wheels, electric system, and label peeling mechanism.

7.What Is The Classification Of A Bottle Packing Machine?

Bottle packing machine by Allpack can be simply divided into three types on the basis of their speed. They are as follows:

High Speed Tablet, Pill, Capsule Bottling Line

As the name indicates, this is the most efficient bottle packing machine with exceptional production output of 90 bottles per minute. This machine is highly suitable for large and extra-large production facilities such a as pharmaceutical industry, veterinary industry, and food industry etc.

The body of high-speed automatic bottling line is complex enough due to the integration of a high-speed bottle unscrambler, 32 channel tablets counting machine, automatic desiccant iserter, high speed capping screwing machine, water-cooled induction sealer, and high-speed round bottle side face labler

Medium Speed Tablet, Pill, Capsule Bottling Line

Allpack JF-A160-16 Multi-function Tablet, Pill, Capsule Bottling Line (Medium-speed Line)

Medium speed bottling line is another type of bottle packing machine made for meeting the daily production targets of medium to large industries. It has excellent capacity of finishing up to 80 bottles in a minute.

Its structure is medium sized compared to high-speed bottle packing machine. The different machines used in its formation include a bottle unscrambler, electronic counting machine, automatic desiccant inserter, capping screwing machine, induction sealer, and round bottle side face labeler.

Low Speed Automatic Bottling Line For Capsule/Tablet

Allpack JF-A100-12 Low Speed Automatic Grain Capsule Tablet Pill Counting Line

Another most precise bottle packing machine is the low-speed bottling line. It is cost-effective compared to the other two types yet give you utmost production figure of packing 50 bottles in just 60 seconds. So, you can get benefitted from this reliable bottle packing machine whether you are running a medical industry, processing cosmetic supplements, or producing food items.

The body of a low-speed counting line is small compared to other types of tablet counting lines and is composed of a rotary bottle unscrambler, automatic tablet counting machine, desiccant inserting machine, capping machine, induction sealer, and a labeling machine

8.Where Do A Bottle Packing Machine Is Used?

Bottles are the most convenient packaging objects which are used for storing and delivering different types of products encompassing tablets, capsules, and candies etc. It thus implies, that almost every industry has a demand for bottle packing machine to ensure security to their goods. Let's discover few of the prominent ones!

Nutraceucal Industry

Presentation of nutraceucal gummies- Picture Courtesy: usana.com

The use of various nutraceuticals in form of tablets, capsules, and gummies tomato is common nowadays. Similarly, their packaging in bottles is the first choice of every manufacturer. That's how the relevance of a bottle packing machine can be found in nutraceucal industry.

Confectionery Industry

Various confectioneries- Picture Courtesy: dollarsweets.com

Another notable field where the use of a bottle packing machine is appreciated is confectionery industry. Here, with the help of this machine, bottles of candies, chocolate, gummies, and bubbles can be packed through different stages.

Healthcare Industry

Supplements presentation idea- Picture Courtesy: biovitamine.calivita4.me

Healthcare industry is an area which is constantly engaged in the manufacturing and packaging of drugs both in solid and liquid form. In this way, bottles are always preferred to keep the drugs safe and protected against environmental elements. Hence, a bottle packing machine is then used to ensure further integrity to all these bottles at the end.

Cosmetic Industry

Women picking hair vitamin gummy from bottle

Another area is cosmetic industry which is having a good demand for a bottle packing machine to pack the assembly of bottles containing softgels, gummies, and tablets for glowing skin, healthy hairs, and strong nails.

Agricultural Industry

Plant growing from seed- Picture Courtesy: thisismygarden.com

Agricultural industry is one of the notable areas where the use of a bottle packing machine is inevitable. It is because this sector is continuously working to deliver seeds, grains, and pellets which are counted and then packed into bottles through a bottle packing machine.

Chemical Industry

Chlorine tablets- Picture Courtesy: walmart.com

Last but an important one is the chemical industry where bottle packing machine is employed to count and pack the tablets, laundry pods, and pesticides pellets into range of bottles.

9.How To Clean And Maintain A Bottle Packing Machine?

Including in your manufacturing line a bottle packing machine is a big decision and good investment that require your constant involvement in its successful functioning. You need to keep it clean and maintained all the time for smooth working throughout its working life. The below easy steps are helpful in this way:

Operators maintaining a machine- Picture Courtesy: insidernavigation.com

Cleaning:The presence of debris and dust on your bottle packing machine can badly affect the quality and hygiene of bottles especially those of food and pharmaceuticals. So, make sure to clean your bottle packing machine regularly with non-abrasive, clean, and dry cloth especially the hopper, knives, and conveyor etc.

Lubrication:For a bottle packing machine, it is always a conveyor and chains which contribute to the smooth running of bottles from one place to another. It is thus necessary to keep these parts lubricated all the time.

Parts Changeover:It is important to examine the machine before and after completing its daily task. It will help you identify the wear and tear of parts in machine whose timely replacement is significant. You can make the most frequently changeover parts ready on your shelf, so, that the possible downtime in production can be minimized.

Machine Adjustment:Bottle packing machine also require regular adjustment of its parameters such as the speed of conveyor, frequency of heat, and length of film etc. Hence, before starting new operation, it is crucial to adjust the relevant commands in advance.

Keep it Dry:When processing products like detergent pods there is a chance that the liquid spill over machine which result in the corrosion. Here what you can do is to keep the machine dry and clean all the time.

10.What Quality Standards Should A Bottle Packing Machine Meet With?

A bottle packing machine is meant to securely pack the empty bottles by passing them through different stages. These stages are responsible for ensuring whether the product inside bottles is processed in hygienic environment or not. Now, how can it be examined? The answer lies in checking the quality standards of machine. These are explained below:

ISO quality standard icon- Picture Courtesy: qualitymag.com

ISO:A bottle packing machine must comply the safety standards established by International Organization for Standardization.

GMP:The structure of a bottle packing machine should be made from 304 stainless steel as regulation by Good Manufacturing Practices.

CE:If a bottle packing machine is to be used in European Union, it should first comply to the CE's safety regulations.

FDA:As bottle packing machine is often used for drugs and food materials, therefore, it is necessary for it to be certified by the Food and Drug Administration.

11.Diagnose The Common Errors Of A Bottle Packing Machine?

To troubleshoot the common errors of a bottle packing machine, it is necessary to have clear information about each component and its function as we have explained above. In this question, we have highlighted some of the major issues along with their possible solutions which can occur during operation:

Bottle Unscrambler

Encircled transmission gear of bottle unscrambler- Picture Courtesy: Icon Equipment

False unscrambling of bottles

It is caused by the error in sensor, moving disc, or machine setting.

You need to restart the machine and clean sensors for accurate functioning.

Bottle get stuck in moulds

Sometimes, the friction of transmission gears results in the stagnancy of rotary disc which in turn leads to bottles jamming.

It can be solved by lubricating friction plate, fixing it, and modifying its working specifications through control board.

Electronic Counting Machine

Encircled vibratory trays- Picture Courtesy: cremer.com

Incorrect counting

The wrong placement of rotary trays causes under counting and polluted sensors results in over counting of objects.

Such issues can be tackled by ensuring the right positioning of vibratory trays and keep the sensors free of dust and pollution.

Bottle filling issue

When the size of bottle is small and the height of filling head is up, the counted objects get scattered while their filling into bottles.

So, you can simply fix the problem by adjusting the height of filling head in accordance with that of the bottle size.

Desiccant Inserting Machine

Encircled supporting shaft of a desiccant inserting machine- Picture Courtesy: accutekpackaging.com

Jamming of desiccant strip

The only reason responsible for this issue is the wrong setting.

To solve it, you need to reset the machine with all the essential parameters required for desiccant inserting into bottles.

Wrong cutting of desiccant bags

This happen when the length for cutting each bag is false.

Therefore, you are required to adjust the length for cutting each desiccant bag as per the length of each bag.

Capping Machine

Encircled bottle capping machine- Picture Courtesy: accutakepackaging.com

Loose capping

The reason is wrong positioning of caps and application of pressure.

This can be resolved by adjusting the machine and rightly placing the caps on bottles.

Cap Breakage

Using inappropriate and small size of caps often get break when screwing pressure is applied.

Make sure that you use the caps with suitable sizes to that of the bottle opening.

Induction Sealer

Presenting induction sealing issue- Picture Courtesy: quatropack.com

Burning of foil liner

It happens when the speed of conveyor is too slow due to which the foil gets more heat and gets burned.

Increase the speed of conveyor and adjust the temperature of machine to avoid burning.

Weak sealing of foil

Various factors are responsible for this issue comprising the inadequate temperature and too heightened induction sealer head.

So, you are required to increase the temperature of induction sealer and adjust the height of sealing head.

Labeling Machine

Encircled fur brush- Picture Courtesy: Wire Labeling Machine

Blistering of labels on bottles

This happen when external particles trapped inside the label during their application over bottles.

It can be solved by placing clean bottles on labeling machine and making sure that the surrounding environment is free from dust and pollution.

Weak adherence of labels to bottles

This result when label is not approximately pressed by the fur brush around bottle.

Tightening the place of fur brush can end this issue.

12.Factors To Consider When Buying A Bottle Packing Machine?

Now, after studying the different types of bottle packing machine, it would be clear to you that there are multiple types of machines available in the market for meeting the end of bottle packing. But how will you choose the ideal machine for your business? This is conundrum most of the manufacturers confront. So, we have some essential tips for you to follow:

Desired Output

Multiple vitamin tablets bottles- Picture Courtesy: packageinspiration.com

The most important factor to determine on part of manufacturer is the expected ratio of production. For instance, are you running a moderate level local business or controlling the large scale international business? Answering this question will indeed help you to opt for the machine that can give you desired output.

Quality Assurance

Quality assurance icon- Picture Courtesy: medium.com

No doubt the quality of bottle packing machine which you wish to buy must be in your top priorities for consideration. It simply implies checking the brand reputation, the quality assurance given by supplier in form of warranty policy, and machine's compliance to national and international quality standards.

Cost of Machine

Checking the cost- Picture Courtesy: k-house.in.ua

Considering cost of the machine is something that must not be neglected as it can lead you to further troubles regarding expensive packaging. So, make sure you have a broad insight about different types of bottle packing machine and their prices and opt for the pocket friendly one.

Availability of Spare Parts

Multiple spare parts in & outside carton boxe- Picture Courtesy: anzael.com

It is a matter of fact that machines are made up of small to large components and spare parts which, at some point, need to be replaced. Therefore, it is necessary to ask the vendor for the availability of spare parts and if possible, purchase the most useful spare parts in advance.

Conclusion

We are about to conclude this comprehensive buying guide about a Bottle Packing Machine with a reminder that bottle packing machine is the inevitable requirement of today's industries. The reasons are numerous; however, the ultimate one is rapid globalization where a thing produced in one corner of the world has a chance to reach the other corner. It is only possible when you ensure the best possible safety of your goods in form of primary packaging by using a bottle packing machine. So, if you want to be the first in taking this step then contact Allpack to get the best bottle packing machine. For further information please visit our website.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Bottle Counter Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Bottle Packing Machine: The Complete Buying Guide In 2024 Read More »

Bottling Line: The Complete Buying Guide In 2024

Bottle Unscrambler

Bottling Line: The Complete Buying Guide In 2024

The complexities of product packaging especially in bottles has compelled the manufacturers to look for an alternative that perform each and every task for perfect bottling. This ultimately resulted in the creation of bottling line which holds in it the vary machines to facilitate the precise bottle processing from cleaning to filling, capping, and labeling.

Are you planning to invest in a bottling line? Or intending to make your own bottling line by combining together multiple sophisticated machines? If yes, you are at the right place. As this buying guide is particularly made to facilitate you in exploring bottling line and getting every information related to it. So, make sure to read it thoroughly!

Add a header to begin generating the table of contents

1.What Is Bottling Line?

Allpack Medium Speed Automatic Multifunction Capsule & Tablet and Pill Counting Line

A bottling line is the collection of multiple interconnected automatic machines who are systematically arranged in order to perform various tasks in a single run. These machines typically involve a bottle unscrambler, tablet counting machine, desiccant inserting machine, bottle capping machine, induction sealing machine, and labeling machine etc.

At Allpack, the bottling line is manifesting a unified packaging line that administer the bottles processing by filling inside them precisely counted capsules/ tablets and undergoing them through stringent sealing and packaging process. Hence, you can employ it for enhancing the efficiency of your relevant industries.

2.Explain The Benefits Of Bottling Line?

Bottling line is highly advantageous for all the infants and experienced experts in the realms of bottle packaging. Some of the significant benefits of bottling line are highlighted as under:

Exceptional Efficiency

Excellent efficiency indicator- Picture Courtesy: berkonomics.com

As bottling line is a composite whole of cutting edge machines, it supports the non-stop functioning and resulting in giving exceptional production output. In addition, high speed bottling line by Allpack is capable of filling up to 50-90 bottles in a single minute.

Enhanced Precision

Process of bottling- Picture Courtesy: Parle Global

Manually bottling your tablets and capsules is a tiresome task and bring with it multiple challenges of inaccurate counting, the proclivity of getting contaminated or inconsistent packaging like sealing and labeling issues. On the other hand, bottling line perform this task with high degree of responsibility via advance detection system which ultimately provide you with precise bottling.

Easy-to-use

Operator using HMI- Picture Courtesy: kitamura-machinery.com

Bottling line is extremely convenient to use. There is no need of technical specialists or trained staff to operate it. Instead, one trained operator is enough to run the batch by simply communicating commands in it through intuitive Human Machine Interface.

Product Versatility

Pills presentation idea

Bottling line is not just used for tablets and capsules of particular specifications as well as the bottles of same size. But, if setting is adjusted, it supports different sizes and shapes of tablets, pills, candies, and containers, including bottles, jars, and cans etc.

Long-term Use

Bottling line is built with innovative features to last for longer production without wearing out. It enables you to grow your business and keep it under operation for years by simply ensuring the weekly and monthly maintenance checks.

3.What Products You Can Process Through Bottling Line?

Bottling Line can be used for wide range of products from tablets to candies and laundry pods. Some of the popular objects are as follows:

Tablets

Tablets

Bulk tablets

You can process tablets of different sizes, shapes and nature by bottling line. In fact, our bottling line is known as tablet counting line.

Capsules

Various softgel capsules- Picture Courtesy: creativemarket.com

Counting capsules is a difficult task due to their sensitivity to moisture, contamination, and light. Therefore, bottling line is best suitable not only to count but also pack both types of hard gelatin and soft gelatin capsules in bottles.

Candies

Candies

Multicolor candies filled jar- Picture Courtesy: foodnetwork.com

Confectioneries like candies are hard in form but at the same time their sugar rich nature make their texture sticky. So, they are meant to be well counted and packed through systematic process. Hence, they are easily processed by a bottling line.

Laundry Pods

Laundry pods in bottle- Picture Courtesy: parents.com

Laundry pods are small detergent pods filled with liquid cleaning agents. These laundry pods can be perfectly processed by a bottling line and packed in bottles, jars, and containers.

Chocolate Balls

Multihead chocolate balls bottles- Picture Courtesy: packaginginspiration.com

Likewise, candies, chocolate balls are also heat sensitive and require safe environment to be counted and welll packed. Thus, chocolate balls are also suitable to processed by a bottling line.

4.What Are The Working Principles Of Bottling Line?

Bottling line follows a sequential order to carry out the function of bottling. This process is based on few steps which will be explained in the upcoming paragraphs. Make sure to understand them thoroughly!

Material Loading

Tablets feeding in machine hopper

In order to operate the bottling line, the first step you need to take is loading the various materials or objects into their respective places. For instance, load the empty bottles in bottle unscrambler disc, pour bulk tablets or capsules in hopper, place the film roller and silica gel in desiccant inserting machine. In same manner, you have to load the capping machine with bottle caps and labeling machine with rolls of labels.

Parameters Setting

Once the loading of material gets done, the next and most crucial step is to set the parameters of respective machines. It is important to perform this task responsibly and fix the speed of conveyor belt, quantity of tablets to be filled in each bottle, the temperature of induction sealer and adjustment of tools with respect to the height and size of bottles. After accomplishing parameters setting, just start the bottling line.a

Bottle Unscrambling

Bottle unscrambling process

Now, the process of bottling line starts with bottle unscrambler processing disoriented bottles through a rotary disc. Here, the randomly positioned bottles are aligned in such a way that their neck or mouth is upward and the body is standing on lower side. These oriented bottles are then moved forward towards bottling line via conveyor belt.

Tablets/ Capsules Counting & Filling

Tablets bottle filling

At this point, the tablets or capsules are gradually released from the hopper onto vibratory trays. These vibratory trays, when vibrate, result in the segregation of tablets and align them in a serialized way. At the same time, these tablets or capsules get into the counting channel where counting phase is taken place. Afterwards, the counted tablets or capsules are discharged into bottles through the filling head.

Desiccant Bag Inserting

Desiccant inserting into bottles

Proceeding further, desiccant inserting machine create bags from film, load the bags with precise amount of silica gel and seal them tightly. When the presence of bottles is detected by the machine, it cuts the desiccant bags and deliver the bags into bottles by following the principle of one bottle one bag.

Bottles Capping

Bottle capping process- Picture Courtesy: ipharmachine.com

The bottles, when receive a desiccant bag, move forward through conveyor belt for capping. Firstly, the machine drops caps over bottles and then push the bottles for screwing. Hence, the tight closure of bottles is realized here.

Induction Sealing

Working principles of induction cap sealing- Picture Courtesy: inductioncapsealing.com

This step involves the induction sealing of capped bottles. The machine generates heat through electromagnetic radiation which leads the foil, a linear located inside caps, to tightly stick to the bottle neck. In this way, an airtight and moisture proof sealing of tablets filled bottles is achieved.

Bottles Labeling

Tablets bottle labeling- Picture Courtesy: EPI

Last but not least, the sealed bottles are assembled to be labeled. This function is carried out in a systematic way where the label is pulled by labeling wheel and applied around the bottles. These labeled bottles are then passed through a fur brush to stick the labels tightly around bottles.

Bottles Discharging

Finally, all the processed and finished bottles are discharged by the bottling line. Here, a collection chamber is attached to the line for assembling bottles.

5.What Machines Make Up The Bottling Line?

Bottling line is made up of several automatic machines. These are described below in detail:

Bottle Unscrambler

Allpack APC-A160 Bottle Unscrambler

Bottle unscrambler is machine that constitute the very first unit of bottling line. It is made up 304 stainless steel body and equipped with advance technology to orient scrambled bottles. The machine is composed of a hopper, taper plate, aligner, mould, blower, and turntable tooling channel. Together these components enable the machine to pick randomly positioned bottles and align them in a straight direction towards conveyor.

Automatic Tablets Counting Machine

Allpack APC-32 auto counter 32 channel tablets counting machine

As the name shows, this machine is an electronic equipment tailored with unique features to facilitate the counting of various types of tablets, capsules, and candies etc. It is generally made up of hygienic and corrosion resistant material that provides safe environment for the counting of tablets and capsules. Moreover, the vibratory channel, detection system, and automatic counting enable the machine to precisely count and dispense the tablets or capsules into different bottles.

Desiccant Inserting Machine

APC-C120 Automatic desiccant inserting machine- Allpack

The desiccant inserting machine is another important machine found in the bottling line. It is used to create the bags out of film strips, fill these bags with silica gel and insert these small desiccant bags into tablets filled bottles. The machine is an assembly of certain small to large components including bottle feed screw, bottle rejection mechanism, feeding supplier, fix guide, support roller, jog belt screws and others.

Capping Machine

Allpack APC-D902 Capping Screwing machine

Capping machine is an equipment that is included in the bottling line to stably perform the capping of filled bottles. It is strongly compatible to different sizes and shapes of bottles caps. The machine is made up of three pairs of friction wheels, intuitive PLC control panel, cap dropping and wearing device, stepper motor, photoelectric sensor, and other components. It performs the capping of bottles when they are taken by conveyor belt where caps are applied and tightly screwed.

Induction Sealer

Allpack APC-M2 Induction Sealer(water cooler)

An induction sealer is another important machine present in bottling line. It uses electromagnetic field to generate a strong sealing over tablets filled bottles through which the foil get stick to bottles' neck and keep the content intact until opened. The machine is an assembly of several parts including a stainless steel main frame, an emergency alarm, power supply, sealing head, controller and conveyor.

Labeling Machine

Allpack APC-T2 Multi-function labeler

Labeling machine constitute the last part of bottling line. It has been made with an astonishing features to apply multiple types of labels over square, round, oval, and flat bottles at the same time.

Its synchronization chain mechanism enable the machine to pull labels from roller and precisely apply around the bottles efficiently. This ultrafast performance is the result of integration of various small to large components including stable body, screw adjust device, label applicator, and coder etc.

6.Describe The Multiple Types Of Bottling Line?

Bottling line can be divided into three basic types on the basis of speed. These are described below in detail:

Low Speed Automatic Bottling Line

Allpack Low Speed Automatic Bottling Line For Capsule/Tablet

This low speed automatic bottling line by Allpack is an intelligent assembly of various machines encompassing round bottle unscrambler, electronic counting machine, automatic desiccant inserter, automatic capping machine, induction sealer, and round bottle side face labeler.

The bottling line is having small size body, compared to other types of bottling line, and consume low power. Despite being smaller, the line fulfill all essential attributes of automatic detection, alarming system, and precision of operation.

Hence, you can employ this low speed automatic bottling line for your small to medium size batch production which is capable of finishing up to 50 bottles in a single minute.

Medium Speed Automatic Bottling Line

Allpack Medium Speed Automatic Multifunction Capsule & Tablet and Pill Counting Line

The second type of bottling line is medium speed automatic bottling line which is composed of a bottle unscrambler, electronic counting machine, automatic desiccant inserter, capping screwing machine, induction sealer, and round bottle side face labeler.

This bottling line has higher speed with output ratio reaching out the figure of 90 bottles per minute. Along with that, it supports multiple languages and has the capacity to save up to 20 different settings. So, you can simply switch the setting instead of resetting it from start.

Moreover, this bottling line is best suitable for eclectic sizes and shapes of tablets, softgels, and hardgels etc. Hence, you can use it for your medium to large scale production facilities.

High Speed Automatic Bottling Line

Allpack High Speed Automatic Multifunction Capsule Tablet Pill Counting Line

High speed automatic bottling line is the cutting edge unit of several machines including bottle unscrambler, electronic counting machine, automatic desiccantnserter, high speedcapping screwing machine, water-cooled inductionsealer, and high speed round bottle side face labler

It has a large complex body that proficiently carry out the bottling of hundreds of bottles in an hour. Its bottling output frequency stood at 90 bottles per minute with excellence in processing various shapes and sizes of bottles.

This bottling line is the best ever choice for your large to extra large manufacturing industries of pharmaceutical, chemical, and cosmetics.

7.What Are The Applications Of Bottling Line?

When it comes to count the applications of bottling line, you will always find diverse sectors on the list. Let's discover some of these!

Pharmaceutical Industry

Doctor in pharmacy store- Picture Courtesy: techbullion.com

Pharmaceutical industry is always on the top where the use of bottling line is realized. It is because hundreds and thousands of tablets and capsules are produced everyday to meet the growing demand for medicines to cure ills.

Nutraceucal Industry

Multiple nutraceucal pills & capsules- Picture Courtesy: icontentmart.com

Similar to pharmaceutical industry, nutraceucal industry is also expanding rapidly. Now, this sector has been involved in providing patients with essential nutrients and minerals filled pills across the globe, for which definitely bottling line is the dire need.

Veterinary Industry

Veterinary doctor treating cat- Picture Courtesy: urbansplatter.com

Pet and animal care now go side by side with that of human care. In this way, veterinary industry is on the front line to produce and process tablets and capsules for animals. To achieve this end, bottling line is the prime solution to be employed.

Cosmetic Industry

Cosmetic softgels- Picture Courtesy: honestlyjamie.com

As we know that beauty care is an undeniable step for almost all of us, cosmetic industry is running in same direction and trialblazing new methods for fulfilling our demands. Consequently, the manufacturing and processing of capsules like vitamin E, Omega-3, and vitamin C is the practice adopted in cosmetic industry. Ergo, bottling line becomes eligible here.

Confectionery Industry

Multicolor gummies- Picture Courtesy: candyclub.com

Confectioneries are all time favorite of kids, adults, and older people in all its forms including candies, gummies, chocolate, and jellies. Therefore, the industry is taking help of bottling line to accurately count these confectioneries, fill them in bottles, and pass them through further packaging steps.

Chemical Industry

Chlorine tablets bottle- Picture Courtesy: dennyshop.co.uk

Chemical industry is yet another area where different kinds of tablets are produced and packed. Hence, medium to large scale chemical industries can use bottling line.

8.How To Maintain A Bottling Line?

Maintenance plays a key role in the successful functioning of your bottling line it is the only means through which you can improve the work efficiency as well as working life of your bottling line. Let's discover some of the prominent steps that must be carefully taken for maintaining a bottling line!

Adjusting Specifications

Adjustment of the bottling line is first and foremost step that must be carried out on daily basis. It simply involves the modification of external parts of bottling line in accordance with changing objects like the width of conveyor, the heads of various units including tablet counting machine, capping machine, and induction sealing machine. The purpose of specification adjustment is to ensure that your bottling line is fit for initiating new task.

Lubrication

Lubrication of movable parts- Picture Courtesy: nexxis.com.au

Keep in mind that poor lubrication decreases the efficacy of bottling line and ultimately leave you with insufficient output. Hence, make sure to regularly inspect the moving parts of bottling line and add new lubrication oil to each point on weekly basis.

Cleaning

The bottling line must be kept clean in order to undertake safe and hygienic processing. So, you need to strictly follow the daily and weekly cleaning of all its parts especially those where product is directly placed such as the hopper, counting channel, and label applicator etc. Different means can be used for disinfecting bottling line including washing, rinsing, and use of compressed air.

Parts Changeover

Parts changeover of knob

It is obvious that at any point the unit or part of your bottling line may initiate abnormality. First, you need to examine the cause. Secondly, if found that any part or tool has been damaged you should replace it timely or it will lead to create further problems in functioning.

9.What Quality Standards Should Bottling Line Meet With?

ISO quality standard icon- Picture Courtesy: qualitymag.com

Tablets and capsules are highly sterile and sensitive in their nature that they are meant to be processed in a protected environment with zero bacterial presence, which can otherwise badly affect their quality. To meet this end, international community has established certain quality standards which every bottling line must meet with. These include:

Good Manufacturing Practices (GMP)

GMP or cGMP is the most notable quality standards formulated to promote safe regulation of goods and machines in pharmaceutical, biotechnology, and chemical sectors. Therefore, a bottling line must adhere to the principles of GMP.

International Organization for Standardization (ISO)

ISO is another quality standards which is often issued by the state authority to concerned industries related to food and gods manufacturing. Hence, bottling line is supposed to be on the list of ISO rules followers.

Food and Drug Administration (FDA)

FDA is US based quality standards which every bottling line must meet with in order to be eligible for tablets and capsules processing.

Conformite Europeenne (CE)

Bottling line must also be certified by CE which confirms its eligibility in European Union.

10.Common Operational Errors Of Bottling Line?

It is a matter of fact that despite being made up of quality tools, at any point the machine will cause malfunctions. Similar is the case with bottling line not because its essence is lost but because of the constant working which result in minor issues. You will be able to tackle these problems simply by getting information about them which is provided below:

No	Error	Cause	Solution	Picture
Bottle Unscrambler
1	Jamming of unscrambler disc	The issue is caused by the failure of transmission gears and friction plate	It can be adjusted by replacing friction plate and modifying the specifications of transmission gear	Jammed unscrambler disc
2	Incorrect unscrambling of bottles	Sometimes bottles get jammed and disoriented bottles move towards conveyor	You are required to reset the machine, check sensors, and blowers to make sure bottles are properly aligned	Operator setting bottle unscrambler
Electronic Counting Machine
3	Tablets and capsules counting error	This is a common problem often have roots in the false setting of counting amount or the error in sensor	It can be corrected by adjusting the counting amount in machine through control panel and removing dust from sensor	False capsules counting- Picture Courtesy: pharmacompass.com
4	Vibratory channel creating noise	It happens when the vibratory tray is disconnected to discharging channel	Resolve the issue by tightening the screws and making both the components attach to each other	Noisy capsules counting vibratory channel- Picture Courtesy: pharmacompass.com
5	Tablets spilling out of bottles	The gap between tablets filling head and bottle result in tablets scattering around bottle	You need to reduce the distance between filling head and bottle to the size of tablet diameter	Encircled distance between bottle & filling head- Picture Courtesy: maharshi.com
Desiccant Inserting Machine
6	Desiccant strips get jam in the machine during operation	The fault is common but serious which can ruin the entire processing. It occurs due to multiple factors associated with machine setting	Here, you are supposed to reset the machine including the adjustment of film pulling speed, the placement of film over feeding roller and its connection to various pulling shafts	Jamming of desiccant strip in machine
7	False cutting of desiccant bag	This is one of the major issues caused by the incorrect sensor functionality	You need to calibrate the machine with right bag specification, so that, the cutting of bags will be done on right place	Falsely cutted desiccant bag- Picture Courtesy: healthline.com
8	Feeding of two desiccant bags in bottles instead of one	Sometimes, two desiccant bags enter in one bottle while few bottles have no bags. It happens when the speed of feeder supplier is too much, and sensor is contaminated to detect presence of bottles	The problem can be resolved by adjusting the speed of feeder supplier to make it compatible to that of conveyor belt. Along with that, you need to clean the sensor for effective performance	Absent desiccant bag in capsule bottle
Capping Machine
9	Cap is too loose on bottle	Either the cap is not applied on right direction or false capping technique has been used	Remove the cap and reposition it. Use right capping method by allowing even pressure for application	Faulty adjusted cap screwing heads
10	The cap get deform or crack	The size of cap is not compatible to that of bottle or the pressure of cap applicator is excessive	Use correct size of caps and adjust the cap applying pressure of machine by decreasing	Bottle with broken cap- Picture Courtesy: reddit.com
Induction Sealer
11	Burned pulp-board liner	This issue is the result of slow conveyor speed and excessive sealing power	Adjust the speed of conveyor belt and that of sealing power to maintain equilibrium	Burned aluminum foil- Picture Courtesy: technopackcorp.com
12	Bad sealing	It may be due to insufficient or excessive sealing temperature and the incorrect application of torque	Make sure the temperature of sealing head is neither too high nor too slow. Also, check the torque for proper closure of bottles caps	Poorly sealed capsules bottle- Picture Courtesy: technopackcorp.com
Labeling Machine
13	Label pulling shafts do not function properly	The issue lies in substrate motor which is in static condition or the driving belts are loose	You need to lubricate the substrate motor for proper functioning and tight the driving belts	Jammed labeling pulling wheels- Picture Courtesy: directindustry.com
14	The label is creased	It is because the speed of label delivery wheel is to fast which create wrinkles over label	Reduce the speed of label application wheel to suitable level	Labeled bottle with wrinkles over it

11.Factors To Consider When Choosing A Bottling Line?

Purchasing a bottling line is one of the responsible tasks you will do for determining the fate of your business. Hence, you must be cautious and have considered some of the essential factors which we have provided below. These include:

Speed

Speed

Speed indicator

While bottling line is in itself provides an automatic production line, there are still different types of bottling line available in market with varying speed specifications. So, by keeping in mind the length of your production, like medium scale, large scale, or extra-large scale, you need to set the desired speed and opt for compatible bottling line.

Budget & Scalability

Another factor is to take your current budget in your mind and look for the upfront cost that will occur on buying a bottling line. Along with that, the most paramount aspects is to evaluate the productivity gains and bottling line's potential for your business expansion.

Space & Layout

Tablets counting Line- Picture Courtesy: countec

It is obvious that a bottling line is comprehensive enough in its structure whether it is low speed or high speed. What significant here is to examine your facility of placing the bottling line. It will enable you to alter the layout drawing like installing the bottling line in a swing positive than in linear way, if place is small.

Spare Parts Availability

Spare parts placement- Picture Courtesy: ett.de

The unavailability of spare parts has been the major issues most of new buyers confront especially the overseas. Therefore, make sure to have the supplier who provides remote services for replacement parts or at least have available alternative.

Supplier Reputation

Quality assurance icon- Picture Courtesy: Open Library

When investing in a bottling line it is pertinent to establish long-term contact with your vender. It is only possible if the supplier is trustable, having been recognized by international quality standards, and most importantly care for customers by providing technical support and warranty policy etc.

Conclusion

The bottom line is that bottling line is one of the best creation to support all kinds of small to medium and large size tablets/ capsules/ grains production facilities. By employing bottling line into your firm, you will determine the brighter future for your lucrative business. It is because opting for individual machines might cost you more both in price and trust. But here, Allpack is offering you broad range of choices with approved machines along with one year of warranty. So don't make delay and save your time, money, and future of your business by contacting us.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Bottle Counter Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Bottling Line: The Complete Buying Guide In 2024 Read More »

Bottle Counter Machine: The Complete Buying Guide In 2024

Bottle Unscrambler

Bottle Counter Machine: The Complete Buying Guide In 2024

Looking for bottle counter machine? Welcome readers! You’re possibly at the right place where you can find A to Z and Basic to Deep streamline guidance about bottle counter processes, integration, machine types, pricing, and much more.

This guide provides you with comprehensive detail about its significance and how it can unlock the journey of success for tugging your time and money. Our experts have provided tailored information for you to explore the knowledge about bottle counter machine.

So, Familiarize yourself with What’s inside!

Add a header to begin generating the table of contents

1.What is a Bottle Counter Machine?

Allpack Bottle Counter Machine

The bottle counter machine is a remarkable equipment of technology that simplifies the bottle-counter process in industries such as beverage production and pharmaceuticals. You can consider it to be an exceptionally smart helper seamlessly integrated into your production line. Utilizing advanced sensors and specific parameters, this machine precisely tallies the bottles in movement, ensuring you always have an accurate count.

From a technical perspective, it provides a high degree counting mechanism and a user-friendly collaboration, making customisation seamless. Its flexibility is a game-changer, effortlessly handling various bottle shapes and sizes. Think of it as the supervisor of your production process, guaranteeing precision, efficiency, and a problem-free counting experience. Whether dealing with small batches or large-scale productions, this gadget has you covered, making bottle counter a straightforward task.

2.Where is the Bottle Counter Machine Used?

A bottle counter machine has a wide dimension of it’s applications across several industries. This is due to it’s great amount of precision, reliability, and speedy output. Here are few important industries that generally bring use of this equipment.

Pharmaceutical Industry

Applications in Pharma Industry

A bottle counter machine is a phenomenal machinery that is of due importance for the rapid and correct dosage delivery e.g., tablets, capsules, pills, and caplets. This machine assures you that individually counted and filled tablets are accurately packaged and processed for further sale without any mistakes or risk of contamination.

Nutraceutical Industry

Applications in Nutraceutical Industry

Similar to the benefit of use taken by the pharmaceutical industry, the nutraceutical industry as well require the role of this machine for packaging department to enable accurate and precise, error free delivery of products such as vitamins, supplements, and probiotics, in the dosage form of gelatinous capsules, tablets or any others.

Food and Beverage Industry

Applications in Food and Beverage Industry

A bottle counter machine is not only limited to the above two industries, it is also found in the food and beverage industry. This machine is employed by manufacturers for counting and filling of products like chewing gums, toffees , chocolate beans, gummies or jellies, etc.,

Cosmetics Industry

Applications in Cosmetics Industry

Interestingly a bottle counter machine can be found in cosmetics industry too, where it is utilized to enumerate and package products such as serums, waxing beads, and hair products present in powderous or granular form, that are usually filled in gelatin capsules or other dosage forms. The machine makes sure that it’s packaging is carried out perfectly accurate and reliable .

Chemical Industry

Applications in chemical industry

Chemical industry is the production setups where precise and accurate products are considered mandatory. For this purpose, you will need a bottle counter machine for quick and proper dose measurements in the filling of chemical products such as buffer pellets, tablets, and some other chemicals in the form of solid tablets, granules, or pellets form.

Veterinary Medicine

Applications in Pet Industry

Veterinary industry also requires the use of bottle counter machine for the dispensing of their pet medicines such a as tablets, capsules or other animal based products like pet food etc re supposedly counted and filled using this equipment.

Herbal Industry

Application in Herbal Industry- Picture Courtesy: life botanics

Alike other industrial uses of this machine, herbal industry have also employed this equipment for counting, filling and packaging it’s herbal based ingredients or medicines such a as herbal supplements, capsules, tablets, pellets or granules .

Research and Development (R&D)

R&D Applications

The research and development departments across many industries are the one that utilizes this bottle counter machine primarily for test and trial studies on the tablets. Therefore each task is conducted with great monitoring and extreme finesse .The bottle counter machine has highlighted importance in R&D sectors.

Electronics Industry

Bottle counter machine uses in electric department

This industry manufactures hardware items that are needed for engineering, construction and automobile services and projects, and also in some other construction industries. Examples of the items are: nails, screws, screw bolts, buttons, electronic chips, and other mechanical small parts can also be enumerated using bottle counter machine.

Stationery Industry

Bottle counter machine application in stationery Industry

The stationery industry is also essential sector for production of items like pencils, erasers, sharpeners, staple pins, thumb pins, clips etc that finds its purpose for proper counting of these things with the use of bottle counter machine.

3.How Beneficial a Bottle Counter Machine?

Frankly speaking! Your business would be in loss if you are running it without adding a bottle counter machine. The reason behind this point is that it offers number of significant benefits to you. Some of very important benefits are jotted down.

Numerous sectors depend on bottle counter machines as they provide significant advantages for any customer choosing this option in manufacturing procedures, such as:

Precision in Dosage

Bottle Counter Machine with high Accuracy Percentage

Utilizing advanced technology, the machine ensures accurate counter and filling methods.

Avoiding Contamination

Pure and Original Product with Bottle Counter Machine

It aids in prevention of cross-contamination by facilitating the filling and packaging of medication with minimal physical exposure. The machine is composed of high-quality stainless steel and equipped with safety characteristics, ensuring product safety and eliminating the risk of any microbial or dirt invasion.

Streamlined Detection

Digital Detector with Ultra Finest Scanners

Equipped with electronic and digital features, including scanners and detectors, the machine identifies errors or malfunctions in tablets or the machine itself, addressing issues through notifications.

Enhanced Efficiency

Fast Touch Screen System with enhanced Efficiency

By automating the assembling, calculating and filling of pills, tablets and capsules, the bottle counter machine streamlines the production leading to enhanced efficiency by flexibility in process without the necessity of manual intervention.

Cost-Efficiency

Cost Effective Addition to your Business!

Industries, pharmacies, and various sectors experience cost savings by avoiding the need for technicians to manually monitor and package tablets. Additionally, the machine cuts down on time and energy too, contributing to increased productivity and throughput.

4.What products can be Counter in Bottle Counting Machine?

Now you can enjoy dispensing various products in bottles with high accuracy, rapidness, and precision ratio with bottle counter machine. Some of commonly used products are mentioned below:

Sweet Candies	Whether gummies candies, chocolate beans, gummy bears, gummy dragon, or colorful enticing confectionery. They’re filled with bottle counter machine without worry for cross-contamination.
Laundry Pods	In laundry and dishwashing tablets counting, the bottle counter machine is of worthwhile invention for separating, counting, and filling of these products with promising outcomes.
Pills	Small or large pills with various shapes or sizes can be counted and filled into each bottle with bottle counter machine. The machine is significant in dispensing small or bulk quantities.
Tablets	In delivering and packaging of medicinal or general tablets can be counted and filled by using a bottle counter machine.
Capsules	You can count softgel, hard gel, animal based or plant-based capsule into individual bottle using this reliable and robust machine.
Chewing Gum	You can find bottle of chewing with precise quantity of product in market. This is all because of bottle counter machine that helps in the packaging of these products.
Biscuits	The biscuits in bottles are counted and packed using bottle counter machine.

5.What is the Composition of the Bottle Counter Machine?

The structure of the bottle counter machine is almost very basic and easy to understand. Some of the basic parts of the machine are illustrated in the figure with descriptions.

Allpack Bottle Counter Machine

Part	Description
Hopper	The topmost position of the bottle counter machine is equipped with a flat and hollow tank known as a hopper. This property allows flexible control on releasing counter items from the hopper to further units of the machine via force of gravity.
PLC Touch Screen	This is also known as the brain of the machine. A programmable logic controller is basically a digital manager of the equipment that regulates various parameters such as the speed of counting items, vibratory channel movement, run time, memory, processing, and so on.
Vibratory Channels	To run and supply counting items into the bottle, vibratory channels facilitate a smooth pathway to move and pass through items from sensors where detection of correct and faulty products can also be caught. The movement of these channels allows items to transfer from the hopper to the filling nozzle for accurate counting.
Counter Monitoring Unit	The bottle counter machine offers an amazing feature where you can monitor the movement of counting material via a transparent sheet of glass or plastic. The passing of items or in case of any problem one can easily troubleshoot by opening the passage.
Bottle Filling Nozzle	This is the main component of a bottle counter machine where a narrow passage known as a filling nozzle accompanies the filling bottle directly. Once the bottle reaches the site, it senses and allows precise and accurate counting of items and directly pours onto each bottle. upon filling, the nozzle detects and stops further filling and sends the bottle to further steps which is of course discharging unit.
Infeed	A predetermined number of bottles enters the machine using an infeed passage which is guided by supporter units. This passage is also known as a conveyor which moves whether continuously or intermittently depending upon the type of machine or manufacturer choice.
Discharging Path	Once bottles are filled with a predetermined amount of items such as capsules/tablets/pills/etc., then it is time to leave the machine; a discharging path is a connection where bottle filling machine is attached to other machines of the production line such as capping machine, or other units of the system.
Bottle Adjuster	A proper spacing between each bottle as well as an aligned number is followed and maintained by the bottle adjuster. This unit supports the bottles of various shapes and sizes.
Electric Cabinet	An electric cabinet is meant for the safe enclosure of all electrical components, plugs, connections, motors, etc in a cabinet that ensures 100% safety and lesser chances of short circuits or heating up of the machine. so this machine is safe to use.
Universal Wheel	The mobility, installation, and fixation of the machine are easier when comes to using a universal wheel. These wheels are of prime importance when it comes to moving your machine from one place to another.

6.What is Step by Step Working of Bottle Counter Machine?

Step 1: Starting & Bottle Feeding

Illustration of step 1

The procedure starts by switching on the power button of the bottle counter machine and adding information on PLC Touchscreen. This begins the inside mechanisms and working of gears, getting the equipment ready for the counting operation.

Bottles are supposed to be fed into the conveyor system, which is suited for perfect bottle motion so that they’re consistently and methodically aligned to ensure precise counting.

Step 2: Algorithmic Counter Ballet

This process is designed with extreme finesse, as the algorithmic tallying of bottles takes place via highly advanced sensors. The sensors are fitted in the machine to identify the presence of each bottle with definiteness, playing the role of gatekeeper of counting process.

The counting procedure is mechanized by high-tech algorithms that defines a collaboration of calculations. As bottles swiftly move through, this mechanism uninterruptedly tallies up the numbers, showcasing its aptitude in high-speed arithmetic.

Step 3: Live Bottle Counter Display & Discharging

Bottle Counter Machine- Final Step of counter and discharging

As the machine is equipped with a smart PLC screen device, it allows for super friendly operator interface by which operator can set parameters and functions for controlling the machine easily. The whole bottle counting session can be visualized as the screen displays the count of different items that are counted via the machine.

7.What are the Types of Bottle Counter Machine?

A bottle counter machine can be divided into broad category of types which relies on different technical aspects of the machinery. The major purpose of laying out this categorisation is for you to decipher the possible features of the machine in the market for helping out in better selection.

BOTTLE COUNTER MACHINE WITH AUTOMATION

In this type, the machine can be sub-classified into three broad categories:

Manual Bottle Counter Machine

Manual Bottle Counter Machine

A manual bottle counter machine indicates the presence and need of a user operating to count and fill medicines such as tablets and capsules. The mechanism is driven by manually placing the required medication on the counter tray where each tablet is counted using the aid of spatula and later separated to be dispensed into the filling container.
As the size of the machine clearly shows its conveyance for small scale industries it is not required in large areas for application. As each tablets are tallied by human hands individually, chances of error or contamination are minimized, helping in accurate results.

Semi-Automatic Bottle Counter Machine

Allpack Semi-Automatic Bottle counter machine

If compared with a manual bottle counter machine, the semi automatic bottle counter machine is developed technologically advanced as it can count and fill many tablets per hour, more than the former machine. However it does require some human interference too. The containers to be filled or the packaging material are manually loaded and discharged too. This machine finds it’s best purpose for medium scale production setups as it is cheaper than the fully automatic one, enabling new businesses to thrive and prosper taking it’s help effectively.

Automatic Bottle counter machine

Automatic Bottle Counter Machine

An automatic bottle counter machine is the most efficient working of them all. This equipment is reliably appropriate for large scale production setups where processes run around the clock without any probability for errors. Each step from bottle feeding, counter of tablets, filling the container and it’s discharge by conveyor belt is carried out automatically.

An operator is only required to input parameters into PLC system and the whole working doesn’t need to be supervised by any technician. This equipment can give hundreds and thousands of precise products filled and packaged per hour.

BOTTLE COUNTER MACHINE WITH COUNTING TECHNOLOGY

Based upon functional technologies, a bottle counter machine is further subdivided into rotary wheel, vibratory and slat procedures of counting. Although the basic structure and mechanism of these types are in contrast, but the major objective of counting is stayed similar.

Rotary Wheels Bottle Counter Machine

Allpack Bottle counter machine

This technology can be found to be inculcated in semi-automatic and automatic versions of bottle counter machines. The important advantage of this technology is that it’s easily maneuvered and convenience in change over is possible for many shapes and sizes of tablets, capsules or other medicines. The most important characteristic of this machine is swift mobility of rotary wheel that lets the tablets to fall down into filling nozzle section where the detector senses the presence of tablet and tallies or counts them and dispenses into their respective containers. The whole working mechanism is precise and convenient . This machine is found in comparatively cheaper rate and is not considered suitable for large production industries as its output volume is relatively lower than other machines.

Vibratory Bottle Counter Machine

Allpack Vibratory Bottle Counter Machine

This machine provides a more rapid approach than a rotary bottle counter machine in which tablets undergo feeding compartment for formatting; by inducing vibrations each tablet moves from a scanning device individually and falls down to the feeding nozzle for further counting and filling process.

This machine is applicable for operations of large-scale manufacturing sectors where the necessity of packaging is almost higher. Moreover, this equipment is further categorized in the availability of number of compartments such as single, eight, sixteen or twenty-four vibratory compartments ensuring counting and filling task in huge quantities without any probability of mistakes.

Slat Bottle Counter Machine

Slat Bottle Counter Machine

Comparatively seen this is a rapid version of rotary wheel and vibratory bottle counter machine. The slat system takes advantage of specialized partitions where individual tablets or pills are counted and moved towards containers that are to be filled with them.

This allows quick filling of many tablets per hour. These cavities enable certain shapes of pills to fix accordingly in it for further operation, without the slightest chance of leaving any empty or double filled. In this method, it gives almost precise results. However, a drawback lies in this machine having a limitation of continuously changing parts for accommodating different sizes or shapes of tablets where required.

BOTTLE COUNTER MACHINE WITH DIFFERENT COUNTER HEADS

Bottle counter machine can be found in two general types, categorized according to the number of filling head they have. Single head and multiple head bottle counter machine are two of them. Now you’ll be reading about these types below:

Single Head Bottle Counter Machine

Allpack Single Head Bottle counter machine

This equipment has the most convenient structural design and is cheaper in costs for achieving automatic tablet counting and filling purposes. A single head bottle counter machine is like an advanced facility for those who prefer to work at small setups. However it only has one counting and filling nozzle, alongside all other essential features that are present in multi-head counter machine such s sensors, PLC system, camera etc.

Multi- Head Bottle Counter Machine

Allpack Multi- Head Bottle counter machine

A Multi head bottle counter machine has many numbers of filling and counting nozzles that are placed adjacent to each other. Due to it’s structural design it allows high speed of counting and filling enabling greater production capacity every time. Hence it perfectly collaborates with large industries providing them with flexible bulk quantity of production.

BOTTLE COUNTER MACHINE WITH DIFFERENT COUNTER CHANNELS

Counting channel of a bottle counter machine is considered to be an essential characteristic as it facilitates convenient orientation and movement of tablets. These channels are also fitted with scanning device that can judge the tablet structure and analyse if it is to be approved or discarded from the batch. There are single or multiple channels that will be classified according to it’s usage per production output required. These are:

Single Channel Bottle Counter Machine

Single Channel Bottle Counter Machine

Single channel bottle counter machine can be perfect for a small industry as it has only single section indicated for lower volume production, hence ensuring it’s precise counting and filling for a limited capacity . As the name says it has only one unit that is responsible for filling of tablets or pills by the feeding mechanism.

Multi- Channel Bottle Counting Machine

Multi- Channel Bottle Counter Machine

This machine has the capability feature that has multiple units that processes tablets for counting and their filling in containers simultaneously. Both functions work and move adjacent to each other with greater rate of counting and filling of those tablets. Each section for counting is incorporated with detection sensors that can identify any damage or issue present. This equipment is suitable for large scale industrial setups as it can handle bulk sized products efficiently.

8.What is the Complete Production line of Bottle Counter Machine?

Bottle Unscrambler

This is an important machine that initiate the process line of bottle counter machine. Imagine a process of bottle counting without an alignment and proper orientation of bottle can be hectic and full of errors with huge costs.

But using this machine can simply bring bottles in a uniform way. Overall process can take place by using of movement of base with speedy blower which helps in acquiring an upright position of bottles. Once bottles are perfectly in position, they’re sent to the next machine which is of course a counter machine.

Bottle counter machine

This machine is the second part of the production process where the counting of products takes place and send the bottle to the next machine.

Desiccant Inserter

This is the next phase once bottles are filled. You know this, due to weather conditions humidity may develop inside the bottles or jars. To avoid the progression of moisture inside the bottles. Various manufacturing companies prefer inserting a desiccant inside each individual bottle. yes, this is done by using a desiccant inserter, the machine is featured with a roller cutter that cuts each strip prior to dropping it inside each bottle. once it is introduced in bottles, the conveyor helps in discharging bottles to the next machine.

Bottle Capping Machine

You can’t market bottles without properly enclosing them. For that, a bottle capping machine is of prime importance as it helps in the placement and twisting of caps to secure the present content inside the bottles. The machine is equipped with auto-grippers that facilitate picking and twisting caps around the bottle neck and sending the bottles to the next machine of the production line.

Bottle Induction Sealing Machine

Now tampering is difficult as bottle induction sealing machine is here in the markets. Today, every manufacturing company must have this machine in order to sustain integrity of brand and security of their products. An induction sealing machine by the help of electromagnetic radiation melts the placement of the inner lining of the caps. These melting upon cooling solidify and form a tough bond with bottles known as seals. This seal can only be opened by customers ensuring that they get an original product.

Labeler Machine

For better presentation and conveying important information, a labeler machine is used which is also known an essential marketing tool. A labeler machine is meant to stick a label with informative messages such as doses, manufacturing date, expiry date, etc. The machine works by unfolding a label coil with the help of attached roller feeders; the presence of roller presser ensure fixation of each label over bottle evenly and firmly.

9.Is Bottle Counter Machine and Tablet Counter Machine Same?

A Bottle Counter Machine

Yes, a bottle counter machine & a tablet counter machine almost serves similar responsibilities in the filling and packaging processes.

Both apparatuses are designed to sense and notify the presence of dropping items over detecting channels such as tablets, capsules, pills, or any products that we discussed above.

The machine is featured with same properties such as hoppers, vibratory channels, filling nozzles that cumulatively offering identical operations.

So, you should be confused when it comes to purchasing or requiring bottle counter machine or tablet counter machines.

10.What is Maintenance & Cleaning of Bottle Counter Machine?

Maintenance & Cleaning of Bottle Counter Machine

The maintenance and cleaning tips of bottle counter machine are discussed below:

It is recommended that a bottle counter machine should be operated in a room temperature and avoid operating in high temperature or humid environment.
The presence of dust or debris over vibratory or rotary plate or channel should be cleaned regularly.
The monitoring or connecting bolts must be inspect on regular basis.
After completing each batch, the surface of the bottle counter machine should be cleaned using 70% IPA spraying and wiping with light cloth to bring polishing and finishing over surface and minimizing chance of microbial growth.
Regularly monitor and clean the surface of the sensor.

11.What are the Problems & Troubleshooting of Bottle Counter Machine?

After reading above description, this is understood that a bottle counter machine is promising machine in the term of technical and mechanical complexities. But every machine sometime encounter problem. The ideal thing is that user must be aware of solving the technical problems. The few and major problems and solution of bottle counter machine are described below.

Blockage of Items

A Bottle Counter Machine

The flow of counting products becomes jammed or interrupted.

Solution

Schedule the cleaning and maintenance program of the machine, including proper oiling of movable parts of the machine, the smooth movement of the plates allows seamless flow of the particles/items so no chances of jamming or blockade.

Double Counting of Items

Bottle Counter Machine

This is commonly occurring problem where a bottle counter machine addressing counting items twice and affecting overall accuracy of the product and making batch toward rejection phase.

Solution

This problem is mostly occurred when you ignore frequent or regular cleaning and maintenance of the machine. It is suggested that after running each batch clean the machine with duster and re-calibrate units such as scanner, vibratory channels, sensors. This would help in fast and sharp counting of each falling object over detector.

Vibration More than You Expect

Bottle Counter Machine

The machine vibrates more during the working process.

Solution

Monitor and correct the alignment of the machine by checking its universal wheel system. Check and calibrate the vibratory parts and lubricate them. Check the flooring or installation surface of the machine; try installing it on a smooth surface.

Conclusion

Dear readers! We hope you have found this blog up to your expectations. A bottle counter machine is a worthwhile investment that can bring success to your business. Thinking of buying Now? Allpack Team welcomes you to contact them to unlock the horizon of unlimited bottle counter machine types. If you’re having very specified budget! Then we also have a solution for you. For Product Purchases or Any Queries please Message us. We promise to offer tremendous customer services Free of Cost.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Bottle Counter Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Bottle Counter Machine: The Complete Buying Guide In 2024 Read More »

Desiccant Inserter: The Complete Buying Guide in 2024

Bottle Unscrambler

Desiccant Inserter: The Complete Buying Guide in 2024

Ever wondered how various products are maintained with freshness, quality, and proper shape? The answer is very simple! A desiccant inserter that takes your business to a high level by sustaining the impeccable integrity of your product for a longer time.

Today, where entire manufacturing and packaging industries face intense challenges, a desiccant inserter is a game changer that helps in offering what you look for. Now, do not worry about intense temperature, humidity, and other factors, because a desiccant inserter is growing in popularity as it can sophisticatedly place a desiccator inside each container and prevent against humidity. Looking to purchase a desiccant inserter? This is the right place for you! Go through this article and find answers that will help you grab the right machine.

Add a header to begin generating the table of contents

1.What Is a Desiccant Inserter?

A desiccant inserter is an advanced device which is designed to insert desiccant into products in order to extend their shelf life. Most of the products require desiccants as it helps in absorbing extra moisture present in the inside atmosphere of the material. By this, it improves protection against progression of microbial growth such as fungus, spores, or bacteria.

Desiccants are mostly composed of silica gel that has affinity to absorb humidity present in the surrounding. That’s why, this is commonly inserted in the medicinal packaging, food packaging, and other. Because these sectors are mostly concerned with maintaining stability and quality of the products. A desiccant inserter is useful machine in this way that speed up the process by automatically sensing the presence of packaging container and placing an individual strip inside each packaging and allow them to move to the next machine. This machine is typically works in an integrated way or packaging production lines offering a seamless operation.

2.Where Is a Desiccant Inserter Used?

A desiccant inserter has various applications on the industrial sector. Some of them are discussed below.

Medicine Industry

A desiccant is used to keep medicinal products safe and effective against moisture content. For that reason, a desiccant inserter is used to ensure that production processes are carried out smoothly and rapidly.

Food Industry

Food products such as breads, chapatis, dry-fruits, spices, sugar, rice, or related grains, snacks, etc needs to be dry to maintain taste, fragrance, and quality. Food industries are equipped with desiccant inserter to keep food packaging effective till end-user.

Nutraceutical Industry

Picture Courtesy: Dryndry

Nutraceutical industry deals with manufacturing and supply of nutraceutical items such as vitamins, proteins, enzymes, that are also prone to oxidized in the presence of moisture content. This is why, desiccant inserter is used to place desiccant inside packaging of nutraceutical products to prevent humidity and damages caused by moisture during transportation.

Cosmetic Industry

Moisture is the culprit behind damaging cosmetic products. That’s why products like powders, bars, creams, lip-glosses, etc. should be kept in a dry environment. For that, manufacturers and packaging industry use desiccant inserter to keep their product safe from moisture-related problems.

3.What Are the Benefits of a Desiccant Inserter?

When it comes to placing a desiccant inside products; it is much more difficult to handle manually or alone. Today, desiccant inserter has occupied an eminent place in competitive sector due to mentioned below benefits:

Machine Cuts and Places Desiccant Automatically

Desiccant inserter shows fast automation in the term of detecting containers, cuts the pack from the roller strip, and position each strip inside the container. If there’s any problem whether in container or strip; machine rejects the products and transfer them into the rejection unit.

Flexible Integrate to Production Line

Picture Courtesy: ValueLink

This is an adaptable machine that allows flexibility in the term of setting with other machines so production line can be speed up following right configuration as required.

No More Labor Cost

Picture Courtesy- BellaRx

The automatic desiccant inserter has cut down the labor cost as the machine is designed to perform entire functions itself ensuring the right track and precise piece of desiccant is inserted as required by manufacturer.

Reduced Chances of Production Error

The machine working strategy is highly planned and fully controlled so that one can’t expect any big blunder from this robust device. Feel free to add this reliable machine as it is considered as master in accuracy and precision that has minimized the chances of production errors.

Space Efficient

Picture Courtesy:Capplustech

The desiccant inserter has taken up a concise footprint, you can install this machine for larger and smaller facilities without worrying about its adjustment.

Can Control Large Production Batches

Indeed, a compact solution that can often work with large production batches showing huge output smoothly. You need to put data and press the button; the machine is highly advanced to carry out complicated tasks sensibly.

4.What Are Parts of A Desiccant Inserter?

Components of Desiccant Inserter

Emergency light	As the name indicates, it is provided for the safety of the machine as well as the user by immediate alertness in the form of a visual indicator light. For example: red light for emergency or when seeking immediate action, yellow for caution, and green when the system is in the safe zone. Due to its timely safety feature; the user, unit, and work environment is considered as secure.
Feeding Supplier	A desiccant inserter is equipped with a feeding supplier at the top of the machine that is meant to provide a consistent and regulated supply of desiccant strips toward the insertion zone of the machine. The unit is designed to offer a fast and uninterrupted desiccant insertion procedure sustaining a continuous flow of packaging process.
PLC Touchscreen	This is the Brain of the machine. A programmable Logic Controller refers to a functional unit that receives signals from User-in-feed data and sends messages to mechanical parts of the machine to proceed with input action. However, you can visualize procedures, store memory, modulate settings, and troubleshoot the problems using a PLC touchscreen.
Support Roller	Once the desiccant film is fixed on the feeding supplier, the roll is guided by support rollers that facilitate an uninterrupted movement without any chances of twisting or winding. These rollers align the strips during the procedure and contribute an important role in sustaining an accurate and even cutting by offering a fixed pattern of desiccant roll.
Jog Belt Assembly	This unit is also meant to provide a consistent movement of desiccant strips contributing to the precise and accurate cutting of individual packets.
Fix Guide	As the name indicates; this unit helps assist in maintaining the fixed position of the desiccant roll during the cutting and inserting procedure.
Cutting Knives	This is the main component that facilitates an even cutting of each desiccant packet that directly drops down the container. The cutting knives receive desiccant strips in aligned forms therefore it promotes uniform and clean separation.
Sensors	Sensor plays an important role in detecting the presence of bottles and regulating the process of desiccant insertion effectively. The unit is responsible for ensuring each container is treated properly however in the case of any error it sends the product to the rejection unit.

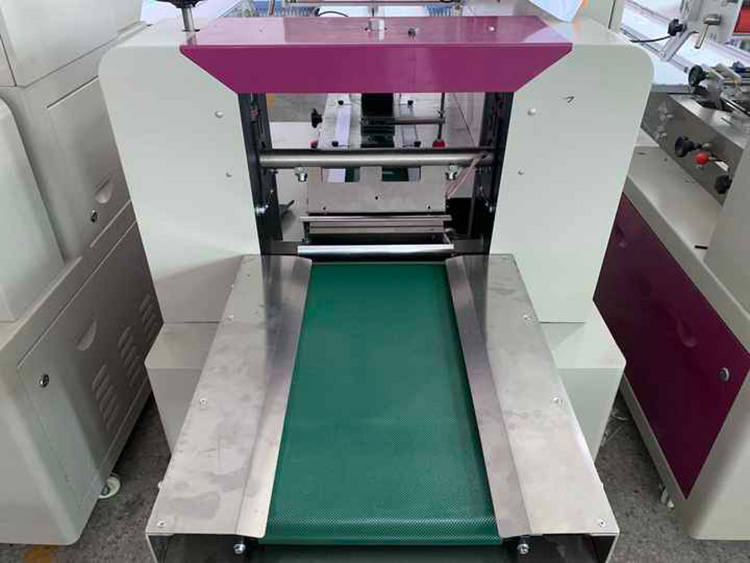

Conveyor	The entire activity and movement of the product take place smoothly with the help of a conveyor. This unit is meant to facilitate a continuous and uninterrupted flow of products inside and outside the unit.
Outfeed	Once a desiccant is placed inside the bottle; it is existed via an outfeed unit. This is the unit where filled products leave the system and enter the next machine for the packaging process.
Adjustment Screws	For different size containers, bottles, jars, and others, the running pathway’s settings are regulated by using adjustment screws. This unit is required to facilitate a consistent flow of products.
Electric Panel	This unit is specialized for assembling all electrical components such as switches, connections, wires, plugs, and circuits. This unit is bounded which allows safe performance by controlling electric operation consistently.
Frame Supporters	To provide stability and integrity to the desiccant inserter, frame support plays an important role in facilitating holding the machine and ensuring smoothing functionality with proper alignment and reducing vibration during operation.

5.How A Desiccant Inserter Works?

A desiccant inserter works sophisticatedly to position individual packets into each packaging container by using the following steps:

STEP 1: Desiccant Feeding Supplier Unit

The strip of desiccants is always available in the form of a film roll. These are marketed in various shapes and sizes which is selected by user according to their needs. Users need to fix the desiccant roll manually using a feeding supplier unit of the machine. This unit helps in the smooth movement of the desiccant strip when used by the unit. The machine is featured with holding units that help in supporting the roll which moves upon receiving signals from the PLC. Always ensure that desiccant film is compatible with the unit.

STEP 2: Introducing Packaging Product

A desiccant Inserter- Picture Courtesy: COUNTEC

Step 2 is accompanied by the entrance of packaging products i.e., bottles, containers, jars, and others into the unit for the purpose of desiccant placement. An oriented and aligned number of bottles along with filled material comes inside the machine for acquiring desiccants. The movement of containers is easier with the help of a conveyor belt which assists the integration of the machine with the production line.

STEP 3: Sensory Detection and Desiccant Positioning

The desiccant inserter is equipped with sensors and detectors that help identify of product. Plus, you can also monitor/visualize the process as it is interpreted on the screen. Once, the packaging material is right there on the feeding unit, the machine detects and accurately places individual desiccants into each container and allows it to be the next. As desiccants are rolled in the film. Therefore, they are separated by the help of cutting knives located just above the feeding section. The purpose of a scanner is to determine and verify if each container is accompanied by a desiccant packet or not. Therefore, no sign of failure is possible when the product passes through the machine.

STEP 4: Final Journey

This is the final step where the inserted desiccant inside the packaging material leaves the desiccant inserter and moves to the next machine for the proceeding subsequent processes.

6.What are the Types of a desiccant inserter?

A desiccant inserter has various different types depending on automation and machine design. Please find below one by one.

Desiccant Inserter: Based on Automation

Based on automation, a desiccant inserter has the following types.

Semi-Automatic Desiccant Inserter

A semi-automatic desiccant inserter the fastest version of desiccant placement inside the packaging product that is involved with automation and manual processing. With machine, user must stand beside the equipment throughout the procedure; for example, placing and removing the packaging product. Beside this, remaining of function can be achieved automatically, for example, cutting, speed, troubleshooting etc., This machine is suitable for running small to moderate production.

Fully-Automatic Desiccant Inserter

This machine is highly advanced technology that can works with high-production lines. The machine can perfectly sense the presence of packaging product hence allow cutting, inserting, and discharging processes. The movement of packaging products takes place with the help of conveyor attached to the machine. This is an ideal solution that can run large production batches effectively.

Desiccant Inserter: Based on the Working Principle

Based on working principle, a desiccant Inserter is divided into the following:

Rotary Desiccant Inserter

A rotary desiccant inserter machine that works on the basis of rotational pathway where empty container comes and leaves the system following a circular turret. This machine is suitable for managing various jars, bottles, or round packaging products. Moreover, the machine is recommended for fast functionality or high output.

Inline Desiccant Inserter

Inline or linear desiccant inserter are designed to follow a linear pathway where bottles come and leave the machine linearly. This is a simple machine that can be integrated with other parts of the production line to achieve fast and efficient outcomes.

7.What is the difference between rotary and linear desiccant inserter?

Points	Rotary Desiccant Inserter	Linear Desiccant Inserter
Working Principle	The cutting and placement of desiccant takes place via a rotary pathway; each packaging products come to the feeder using circular wheel that helps in the smooth transportation of each container.	The working principle of a linear desiccant inserter follows a linear or straight pathway for desiccant placement and leaving the system.
Working Capacity	The production capacity of the rotary desiccant inserter is way too high; gives you a high working yield.	The linear desiccant inserter is also giving you maximum throughput and can be recommended for high production.
Machine structure	Due to rotation, machine internal structure is bit complex.	Due to linear structure; the machine is simpler in structure as compared to rotary desiccant inserter.

8.What is the Production line of a desiccant inserter?

The production line of the desiccant inserter is composed of multiple sets of equipment. We have described the enlisted machines one by one with their importance.

Machine 1: Container/Bottle Unscrambler

To begin the process, your packaging containers must be in an aligned position following an upright face. This is helpful in the fast counting and filling process. A bottle unscrambler is a significant machine that ensures your bottles or containers can be subsequently provided in a corrected position. This machine follows easy working by using vibration and high air blowers to arrange random bottles in a single step.

Machine 2: Counting and Filling Machine

Step 2 belongs to the major category of packaging where a counter and filler can detect the products and insert them into the container; both actions take place simultaneously. The counting and filling machine works with highly advanced sensors and software equipped inside the machine that can rapidly detect the presence of packaging products and items to be packed. Such as tablets, capsules, beads, beans, etc.,

Machine 3: Desiccant Inserter

Some manufacturing lines use this step before counting and filling machines. As mentioned above, this is essentially important to add the machine to minimize workload and maximize production speed. The machine working principle is also based on detectors and movable supporting rollers that facilitate the desiccant strip once the sensor detects the presence of the container.

Machine 3: Capper

This is also known as a capping machine that helps in securing the bottles/containers/pouches and other relevant products. Machine pick the cap and twist it around the neck using strong grippers and torque to firmly close the product.

Machine 4: Induction Sealing Machine

Once the bottles/containers are received from the capping machine. It becomes tamper-evident foiled by using an induction sealing machine that radiates electromagnetic radiation which warms the inner lining of the cap which melts and adheres strongly around the neck upon cooling and preserves the freshness till the user opens it.

Machine 5: Labeling Machine

This is an important step as helps in improving, boosting, and identifying your brand and product. A labeling machine with the help of hot-melt glue, wet glue, or self-adhesive application can apply the label over the surface of the product that is mentioned with important messages, information, or logo about the product and company.

9.How to clean and maintain a desiccant inserter?

Cleaning of Desiccant Inserter

Regularly wipe off extra remnants present on the machine’s surface, debris around the supporting joints, rollers, and around the sensor.

For dusting, use a dry cloth and compressed air.

For sticky material, or rupturing of silica pack, ensure using detergent cloth first followed by compressed air and blower to confirm surface is fully hygienic and cleaned.

Maintenance of Desiccant Inserter

For maintenance, always follow regular lubricating schedule for movable parts of the machine, such as conveyor, joints, supporters, feeding suppliers, etc.

Keep monitoring and replacing worn out plug, electrical connections for safety.

Re-calibrate the machine’s setting regularly to avoid interruption, downtime, and irrelevant hanging or freezing of the system.

Adjust and observe the alignment of the conveyor and other supporting parts.

10.What Are Possible Problems and Solution Of A Desiccant Inserter?

Whether purchased from good sources or not; every machine strikes with some technical problems. Though, it doesn’t mean equipment is not good, but you need to know how to troubleshoot the basic complications. Discussed below are some very common and easy issues that can be tackle if you’re familiar with the machine. For example:

What to do if the machine cuts the strip inaccurately or incorrect?

This is the major problem when machine doesn’t separate the packs correctly that results in the tearing of the packet and gel beads can pop out, this results in rejection of the batch.

To solve this problem, you can align the desiccant strip properly around the guide supporters and re-evaluate if fixation is correct. Calibrate the machine and determine the sensor functionality. Check the strip speed and cutting time; both should be followed timely.

What should you do if desiccant strip is blocked in desiccant inserter?

The blocking or jamming of desiccant strip is not an uncommon condition. The packet mostly gets freeze inside the system that ultimately interrupt the whole process.

To solve this problem is pretty easy. You just must reset the whole process. For example, first clean the system and adjust the desiccant film properly. Check and regulate the speed of feeding supplier and re-connect the film over feeding roller, guide plate, and supporting roller and assess if it can move easily or not. Run the test and proceed the production.

What to do if two desiccants Inserted instead of one?

This condition is known as overdose or under dose. Each container is dealt with placement of either two or none of the desiccant material. To cater this situation; determine the setting of sensor. This is because it is unable to detect the presence of bottle or speed of the feeder supplier is more that can’t be manageable by the system hence result in over-cutting or over-dosing. Hence, cleaning of sensor and calibration of entire system can correct the set-up. Plus, slow down the speed of feeder supplier to regulate the movement of desiccant strip.

11.What are the tips for purchasing a right desiccant inserter?

Before investing in a desiccant inserter machine, consider the discussed points and determine how suitably it fits into your growth plans of production line.

Determine the Nature of Machinery

Picture Courtesy: ABOXautomation

Always take a sensible step when opting a machine by replacing the manual to semi-automatic and later automatic can help in speeding up the entire process. Moreover, determine if the new addition of desiccant inserter support your production machineries or not.

Enlist Necessary Points

Picture Courtesy: Moneycontrol

By expanding the packaging line is definitely a complex task, for that must enlist the essential requirement when selecting the machine. For example, conveyor and accessory needs to arrange along with machine and investigate how it will run the faster packaging process.

Reliable Manufacturer

Picture Courtesy: Baltimore Innovation

This is the key point that must be determined before purchasing the machine. The reason behind is, a reliable manufacturer can cater all your problems efficiently and promising services. If you’re worried about post-sale services; then trustworthy companies like Allpack is the right answer who strives hard to maintain their client's expectations and profitability.

Your Budget

Picture Courtesy: Wisesorbent

This is the most important aspect when buying a desiccant inserter. Today, you can find user-friendly and advanced machines on such an economical budget. Remember, always check the company’s and product’s reviews prior to making a purchase.

Conclusion

Indeed, a desiccant inserter is a valuable asset behind a company’s profile, profitability, and customer trust. Good packaging is the direct way to reach the customer’s heart. Similarly, a desiccant inserter can do this job very well; Allpack offers automatic packaging lines and accessories with complete customer and post-purchase services. Contact Allpack now to avail worthwhile services.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Desiccant Inserter from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Desiccant Inserter: The Complete Buying Guide in 2024 Read More »

Cotton Inserter: The Complete Buying Guide in 2024

Bottle Unscrambler

Cotton Inserter: The Complete Buying Guide in 2024

Why cotton plugs are there in pill bottles? Inserting cotton is a conventional practice that has been employed since Bayer first introduced this trend for aspirin bottles. As a result, their longstanding applications are still followed by pharmaceuticals, nutraceuticals, and many other industries.

Today, our topic is basically all about cotton inserter, their importance, work, and role in business and we will discuss their breakthrough benefits and much more. So, if you’re among those readers who’re planning to purchase the machine; you’re at the right place. Please read on!

Add a header to begin generating the table of contents

1.What Is A Cotton Inserter?

Cotton Inserter

A cotton inserter is a modern machine that basically relays on a series of cotton holding supporters and cotton roll knives and detecting sensors that help in detecting bottles and the presence of cotton roll and allow the machine to cut precisely and add cotton into individual bottles respectively. The machine performs this function accurately and safely. The machine is featured with high speed cotton moving rollers that allow smooth passage for un-rolling the cotton reel and driven by PLC unit and servo motor controlled.

This machine is significantly important in the healthcare system as it is capable to deal with large production capacity without the headache of manual inserting or continuous vigilance. This is an excellent addition that gives promising results in boosting your business.

2.Why Is Cotton Inserter Important For Packaging Containers?

A cotton inserter is widely accepted equipment that is important for packaging products, especially in the healthcare sector. This is because every consumer love to see their product welcome them when they open a new packaging. A cotton inserter plays a beneficial role across the different fields of packaging. Some of them are discussed below:

An Extra Layer of Protection

Inserting cotton in your medicine was a conventionally used method of packaging since hundreds of years ago. Today, cotton inserters do this job without the need for manual handling, manpower or error of contamination. Thus, you can achieve the safest packaging with cotton inserter with minimum risk of lost revenue.

Perfect of Broad Range Products

Not all solid dosage forms and products are the same. A cotton inserter is a robust solution that can grant you peace of mind as it is compatible with a broad range of products and packaging types, such as fragile, supplements, solid dosage, in bottles, containers, vials,.etc. Thus, the machine helps to offer products safely into the consumer's hands.

Easy to Do

Picture Courtesy-COUNTEC

Today, an advanced series of the cotton inserter is quick easy to use equipment where an operator clicks the following keys on the PLC touchscreen, and the remaining procedure is handed over to the machine. This machine is reliable for your packaging operation without worrying about errors.

Easy to Integrate

A cotton inserter is an excellent solution when it comes to attaining results in a production line. This machine allows easy integration and fast packaging solution.

Strong Detection System

This machine is equipped with strong sensors that can detect if cotton is finished or not aligned to the unit. Once it notifies you, it would be easier to manage the situation by correcting and proceed the process. Moreover, the machine is featured with a rejection unit where incorrect bottles or any issues can ultimately lead them to be put in the rejection unit and allow smooth processing.

3.Where Is A Cotton Inserter Used?

A cotton inserter has various industrial applications. Some major industries are discussed below:

Pharmaceuticals Industry

The pharmaceutical industry deals with manufacturing and supplying medication. There are various product packaging items such as vials, bottles, containers, jars, and others, w a cotton inserter is used to place cotton piece after filling the medicine. This is required as it safe pills, tablets, or other items from breakage, and scratches, or for easy transportation. Besides, this cotton placement ensures that medicines are protected from humidity, light, creating odor, or chances of tampering (if removed or disturbed).

Nutraceuticals Industry

A cotton inserter is involved in the nutraceutical industry offering similar benefits as in pharmaceutical companies. Nutraceutical products such as vitamins, and supplements in the form of capsules, pills, and tablets need similar factors for product protection, such as the need for stable packaging, avoiding humidity, protection against light, or prevention of odor. A cotton inserter is used to stabilize the quality standards of nutraceutical items.

Chemical Industry

A cotton inserter is an essential equipment used in the chemical industry for packaging various solid products such as pH tablets, salts, buffers, hygroscopic substances, and organic and inorganic salts. The purpose of inserting cotton into the packaging containers is to retain their stability and quality.

Cosmetic Industry

A cotton inserter is commonly associated with a cosmetic industry that offers individual packaging of cotton balls that are needed for various activities in beauty salons, or for personal use. For instance, skin cleansings, facials, relaxation, removing or adjusting makeup, etc.

4.How Cotton Inserter Works?

The working of the cotton inserter is a pretty simple process. We have explained them in a more simpler way with the help of some illustrations.

STEP 1: Material Feeding

This step has two sub-sections.

Cotton Roll Setting: This process is accompanied by the setting of cotton roll that is adjusted via spreading roll and fixed into the roller, and cotton feed support unit that helps in facilitating smooth run. A cotton roll starts unrolling when the process begins. This step is performed manually.

Bottle/Container Feed-in: Here bottles or containers are entered into the machine by the help of a conveyor belt which acts as a transporting medium.

STEP 2: Cotton Cutting and Inserting

Once the bottle reaches a cotton inserting unit, The presence of a bottle detector senses the presence of bottles and a cutting knife cut the cotton precisely and positions them into each available bottle. The process of cotton inserting become more efficient with the presence of a cotton pusher that helps in pushing a cut section to insert properly inside the bottle.

This filling of the cotton process is followed by rotary tube insertors that rotate and inserts cotton into each bottle.

STEP 3: Rejection

Those bottles that are not compliant with the process are sent back to the rejection unit for further assessment. The approved bottles are moved to the next machine for further production steps such as capping, induction sealing, etc.,

STEP 4: Bottle Discharge

Once the cotton inserting process is completed; the final product is discharged via an outfeed pathway such as a conveyor.

5.What Are Cotton Inserter Components?

A cotton inserter is a modern machine that is featured with various functional parts; each component has its own distinct function. These are described below:

Parts of Cotton Inserter

PLC Control	The Programmable Logic Controller or PLC unit works as the brain of the machine. User infeed required data using touchscreen interfaces. It receives various commands and signals and begins processing up to the command of the operator. Moreover, the machine also receives alerts, messages, store data, speed of conveyor, number of bottles, and troubleshooting parameters.
Cotton Inserter Pusher	A pneumatic unit that mechanically pushes the cotton pieces toward the cotton inserting nozzle to facilitate the smooth functioning of the process.
Cotton Feed Support	This unit is accompanied by supporting the cotton feed into the system and allowing easy and smooth movement toward the cutting and inserting units of the machine.
Infeed Conveyor	The machine is featured with an infeed conveyor which is responsible for providing a pathway for entry of containers that moves toward filling/cotton inserting unit followed by discharging.
Cotton Presence Detecting Sensor	This sensor is responsible for the availability and absence of the cotton roll for the filling procedure. If the cotton material is finished it senses and notifies on the PLC screen by a feedback system.
Rotating Tube Assembly	This is a circulatory tube assembly that releases the cotton piece into the cotton-inserting nozzles.
Reject Station	If bottles are not corrected, or reached with any error, the machine senses and rejects them into the reject station to separate the bottles from the accepted lot.
Outfeed	Once the bottles are fed with cotton or the process is finished. It is transferred to other machines using a conveyor or outfeed.
Cutting Rollers	These rollers are responsible for cutting the mentioned measurement of the cotton material prior to the insertion procedure.
Cotton Inserting Nozzles	These nozzles are accompanied by inserting cotton material in each bottle respectively.
Bottle Detect and Gate Unit	This unit is composed of sensors that pick and detect the presence of the bottle and allow processing and ensure the right movement of the bottles.
Electric Cabinet/Panel	All wirings, plugs, connections, switches, and other electrical components are placed safely in the electrical cabinet of the machine.
Frame Supporter	The frame structure of the machine is made up of stainless steel. However, the machine is supported and held by designated tyres and steel rods that protect the machine against vibration and ensure easy movement.

6.How Is a Cotton Inserter Classified?

The cotton inserter has various types according to size and working. For instance:

BASED ON AUTOMATION

Automatic Cotton Inserter

Picture Courtesy- NMJ

This machine works automatically that requires minimum involvement of manpower. User just need to click the INPUT and add the required protocol; rest of the function is performed by machine itself. This machine is ideal in running large production processes that offer accurate cutting and placement of cotton using fast detector system and features automatic and software functionality for reliable outcomes.

Semi-Automatic Inserter

This machine relies on manual involvement where placement and unloading bottles from the machine. User has to stand throughout the process and monitor the procedure. Semi-automatic inserter is suitable for small to moderate production lines as it can deals hundreds of bottles per hour. This is a cost-economical offer where user can obtain maximum benefits rapidly.

BASED ON WORKING PRINCIPLE

According to working principle, a cotton inserter is sub-categories into the following:

Pneumatic Cotton Inserter

Picture Courtesy- CVC

This machine utilizes mechanical arms that facilitate picking up and positioning of the cotton into each bottle or container. This is a flawless machine that uses Air Jet and vacuum pressure to operate the tasks.

Mechanical Cotton Inserter

Mechanical cotton inserter-Picture Courtesy:COUNTEC

Mechanical cotton inserter works by pushing cotton pulling rollers by use of cotton pusher by continuously up and down movement of pushing rods. These rods are responsible for inserting cotton inside the bottle accurately.

7.What Is the Production Line of A Cotton Inserter?

The production line of the cotton inserter is based on the following set of the machines such as:

Machine	Description	Working Principle
Bottle Unscrambler	This machine is required to orient bottles in an upright position for the next machine. A bottle unscrambler is a compact unit that offers time-saving properties by providing materials in the perfect direction for fast filling and counting tasks.	A set of random bottles mechanically sort the bottles with the help of a vibratory and shaky tray that allows the movement of bottles and fixes them and a narrow channel that facilitates them to the next machine.
Counting and Filling Machine	The production line of the cotton inserter is composed of a counting and filling machine that facilitates the counting and filling of pills.	The sensor detects the presence of the bottles and allows a number of pills, capsules, or tablet one by one as infeed by the operator. If the bottle is not there the counting and filling won't be occurred.
Cotton Inserter	Once the packaging material is filled in the bottles, a cotton inserter is required for placing a piece of cotton inside the bottle.	The cotton roll is opened upon applying pressure by cotton roll feeders that allow easy movement of cotton that are precisely cut by cotton roll cutters and positioned in the bottles with the help of equipped sensors.
Capping Machine	In the packaging line, a capping machine is also a significant piece of equipment that ensures 100% security by firmly tight capping over the neck of containers, bottles, stand up pouches, etc.,	The caps released from the hopper are dropped over the bottleneck and twisted using grippers equipped in the machine. This machine is automatic ensuring end-user with complete protection of their product.
Induction Sealing Machine	Every product packaging is incomplete without tamper-evident sealing. An induction sealing machine is worth-adding machine to the production line of a cotton inserter. Moreover, this machine ensures your product is safe against light, temperature, and moisture.	An electromagnetic heat frequency is radiated from the coil of the induction sealing machine that melts the layer of film fixed in the caps of the bottle. once the film is cool down, it forms a strong bond with the bottleneck in the form of an unbreakable seal.
Labeling Machine	The final and important machine of the cotton inserter production line; the labeling machine plays an important role in providing information, manufacturer message, improving aesthetics, and another relevant knowledge.	The labeling roll is fixed in equipped assembly supporter that helps in the opening of the film that firmly moves and sticks on the assigned container where the roller press allows the pressing of the label for the finest application. There are various types of labeling machines such as self-adhesive, wet glue, hot glue, and others that are selected on the type of requirement and shape of application.

8.Is Cotton Inserter and Desiccator Inserter Same?

Certainly not! A cotton inserter and a desiccator inserter both are different machines. Both of them are utilized in industries for different packaging purposes.

A cotton inserter, as you have read above is used to insert cotton pieces into the packaging container, bottle, jar, or bag for protecting the aesthetic, potency, quality, fragrance, and efficacy of the product. Whereas a desiccator inserter machine is used for inserting a desiccator in order to protect moisture sensitive products or those products that become degraded in the presence of moisture. Hence, this machine places a desiccator into each packaging container.

A cotton inserter machine has pushers that help in pushing cotton pieces inside the bottle. Whereas, a desiccator inserter machine does not need a pusher, though the desiccator directly drops down after passing through cutting knives.

A cotton inserter use rayon, cotton, and wool as a cutting material whereas a desiccator inserter uses a desiccator strip, and desiccant packs as a cutting material.

9.What Are The Problems And Troubleshooting Of Cotton Inserter?

Problem	Troubleshooting	Picture
Jamming of cotton feed support	Correct the alignment of the joints, and position them correctly. Reset the setting using PLC. Run a test to confirm the smooth operation.
Inaccurate Cotton Insertion	Adjust the setting of the machine. Visualize the mechanical and movable parts and correct the obstruction. Correct the alignment of feeding supports. Correct the cutting setting and measurement of the machine. Calibrate the cotton inserter and assess the blockage in the alignment.
The machine doesn’t Sense the presence of the Bottles	Clear the sensor by wiping them with a dry and clean cloth. Recheck the sensor setting on the machine and re-evaluate the process.
Bottle without Cotton Plug	Sometimes machines send bottles without cotton inside them should be dealt with by lowering the speed of the conveyor. Plus, correct the size of the cotton up to the bottle size. Check if the cotton roll alignment is flexible and easy to move and cut. Reset the settings using PLC. Determine whether the cutting roll cutting is accurate and capable to cut on time. Clean the sensors and determine test run.

10.What To Look for In A High-End Cotton Inserter?

A cotton inserter is an important equipment of every production line. Therefore, it is primarily important to look for the following high endpoints when buying a cotton inserter.

Your Production Capacity

Picture Courtesy- CVC technology

Determining production capacity and required output is mandatory when buying a cotton inserter. This will help you to select whether to pick a semi-automatic or automatic cotton insert with the expected outcomes. For instance, running a large scale and selecting a semi-automatic won't be a correct decision or vice versa.

Integrating with Other Machines of the Production Line

Picture Courtesy-CVC

If you’re looking for the machine that best fits your production line, then you must discuss it with your manufacturer. Let them know about the types of machine you have and find the features of cotton inserting machine if it offers flexible integration properties or not.

Reliable Manufacturer & Supplier

This is deemed important to contact vendors who offer promising services and reliable machinery to their customers. For that, we would recommend searching for Google reviews, and website, and contacting them for consultation.

Pocket Friendly Equipment

Picture Courtesy- SED

Last but not least! The purchase equipment must be in your budget. For this, assess the available models, and machines and pick the right one. If machine is a bit expensive and giving you incredible profit, then you must not compromise the deal instead. Moreover, look for options such as small or semi-automatic in this way is also a good option that gain expected revenue.

Conclusion

A cotton inserter is useful machine suitable for various shapes such as round, square flat with narrow or wide mouth diameters bottles. This machine performs promising task in medical, healthcare, chemical, food, and related industries. The machine is excellent for providing effective packaging and easy transportation of goods. If you’re planning to add this machine; do not hesitate to contact us. Allpack Team welcomes to all queries guidance and machine’s quotation in a timely manner. Happy Shopping.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Cotton Inserter from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Cotton Inserter: The Complete Buying Guide in 2024 Read More »

Bottle Unscrambler Machine: The Complete Buying Guide in 2024

Bottle Unscrambler

Bottle Unscrambler Machine: The Complete Buying Guide in 2024

Have you ever wondered how industry production can deal with bottles thoroughly organized in a row? A bottle unscrambler machine is a perfect answer that helps every industry that deals with bottles for the filling process. This machine is capable of sorting disoriented bottles and making them ready for either filling or the washing machine. With advanced bio-engineering technology, you can swiftly do this job in a continuous fashion to boost your business productivity. If you’re planning to purchase this amazing machine, then we would suggest to please look into this guideline to know important points about the bottle unscrambler machine.

Add a header to begin generating the table of contents

1.What Is A Bottle Unscrambler Machine?

Bottle Unscrambler Machine

A bottle unscrambler machine is an important piece of equipment for larger production facilities that helps in sorting and arranging disorganized bottles into uniformly organized orientations and ensuring orderly alignment for the next integrated machine. A robust and durable machine that gives a reliable result in simple and easy steps. Simply, the machine’s functions are systemically performed by mechanical components (conveyor, rotary plate) as well as advanced sensory units such as PLC.

This machine is essential for various industries as it exactly senses the bottle and corrects them in the right direction. Whatever, the size, shape, or orientation of the object; it has the ability to detect them and increase capacity to maximize the production output and lowers the manual labor cost.

2.What Are The Industrial Uses Of Bottle Unscrambler Machine?

A bottle unscrambler machine is a significant piece of equipment that is specifically designed for handling bottles in bulk quantities. That’s why, it compasses a broad range of industrial applications. Some of them are discussed as:

Beverage Industry

A bottle unscrambler is a useful and ‘must-have’ machine in the production line of the packaging department. This machine can handle bottles of various shapes, sizes, and dimensions, for filling soda, drinks, mineral water, fruit juices, shakes, etc.,

Pharmaceutical Industry

Picture Credit- Sleeves bottle

A bottle unscrambler machine is an integral part of the pharmaceutical manufacturing industry for arranging and positioning bottles before they’re subjected to washing or filling machines for a uniform supply of disorder bottles. This machine is required for production sectors involved in pills, tablets, capsules, syrups, or powders packaging.

Cosmetic Industry

Products like beauty lotions, moisturizing creams, lip balms, lipsticks, sunblocks, concealers, mascara, and other cosmetics formulations always require a bottle unscrambler machine before the filling machine for receiving bottles in a sorted manner.

Food Industry

Picture Courtesy- SKS Bottles

You have seen many food products like kinds of ketchup, salad dressing, sweets toping, various oils, sauces, spices, and other products packed in bottles. This is quite understandable bottle unscrambler machine has unlimited benefits for boosting business in the food industry for fast productivity and handling large capacities in no time.

Chemical Industry

Picture Courtesy- FDA

Whether small or large bottles, the chemical industry deals with all of them for the packaging of alkalis, acids, organic and inorganic solvents, salts, and much more. A bottle unscrambler machine can sort bottles carefully and precisely no matter what material they’re made up of e.g. glass or plastic.

Nutraceutical Industry

Picture Courtesy: SKS Bottles

This industry deals with the manufacturing of health related products such as vitamins, protein, probiotics, energy drinks, etc., Therefore, a bottle unscrambler machine is a mandatory component of their production line for handline bottles in bulk and giving excellent output.

Household Product Industry

Picture Courtesy- Guardian

This particular category of industry is involved with the manufacturing of detergents, floor cleaners, toilet cleaners, room sprays, etc., A bottle unscrambler machine is of great value in this industrial section for a swift work process.

Automobile Industry

Picture Courtesy- NS Packaging

Products like engine oil, brake oil, grease, distill water for car engines, etc., are mostly available in bottles. The automobile industry cannot ignore this machine for its fast and efficient working in the production line of manufacturing products.

3.What Are The Benefits Of A Bottle Unscrambler Machine?

A bottle unscrambler machine is a simple and cost-effective way of obtaining unlimited benefits for industries. Some of the very important benefits are discussed below:

Dealing with Large Volumes of Disoriented Bottles

Picture Credit- ETSY

A bottles unscrambler machine is a super efficient equipment that begins your production with high speed per minute and gives a perfect result every second with no chances of errors or receiving any damaged bottle. This ultimately improves the entire productivity with reduces human error or time waste.

High Sensory Detectors with More Smoother Runtime

A Bottle Unscrambler Machine- Picture Credit HO MA

This simple machine is well-equipped with the advanced technology of intelligent sensory detectors that can immediately identify faulty bottles and prevent mingling or reject them to interfere with the production line; you can get more smoother processing with reduced downtime.

No More Worries About Labour Cost And Production Expenses

Bottle Unscrambler Machine- Picture Courtesy-CPHI

A bottle unscrambler machine has solved the problem of manual handling that’s not only time consuming but also causing more expensive in the term of labor costs. So, you can engage your skilled staff and other tasks and save production expenses.

High Compliance And Integration With Other Equipment

Bottle Unscrambler machine- Picture credit Zonesun

A bottle unscrambler machine is highly compliant with other equipment of the facility. This machine is suitable either standalone or can be integrated flexibly with a production line such as a filling machine, capping, etc., to increase the working speed of your production.

No Chance of Bottle Damage

A Bottle Unscrambler Machine- Picture Credit Ho Ma

As the machine can sense the bottle and sort them gently hence there is no chance of bottle damage, scratches, or breakage either lightweight or delicate items.

Touch Screen PLC Control System

Picture Credit- Plastic Machinery

A bottle unscrambler machine is featured with a touchscreen plz system that ensures easy operability by the user with just a single click. You can input the data prior to beginning with the process, the rest of the job will be automatically done by this robust equipment.

4.How Bottle Unscrambler Machine Works?

A bottle unscrambler machine follows quite simple working principle. The step by step description is given below.

Loading

The machine receives random position bottles. A dumped set of bottles are loaded into the hopper of the bottle unscrambler machine. Hopper itself is capable of accommodating thousands of bottles.

Elevation

The bottles are elevated randomly with an inclined conveyor fixed to pre-feeder bowl which is continuously rotating around fix axis. This rotation helps in sorting of bottles that drops into narrow canal one by one.

Orientation

By the action of vibratory or air jet blowers as well as rotation of pre-feeder rotary bowl, each bottle gets properly sorted to funnel or pockets to an up-right position. Machine is equipped with corrector that allows bottles in an upright position on running trail.

Discharging

The final sorted bottles are discharged out of the machine by the help of conveyor belt. They mostly transferred with or without pucks for stable and firm movement. Moreover, anti-back up conveyor sensor ensure smooth transport of bottles without worrying for jamming.

5.What Are The Major Parts Of The Bottle Unscrambler Machine?

PLC Touch Screen

This is the brain of bottle unscrambler machine that allows you to touch the screen to feed the working data such as speed, time, RPM, etc., Plus, this technology allows you when there’s anything alarming by notifying message or beep sound. In some cases, it immediately stops the machine and stores the data.

Anti Backup Conveyor

This is a transporting device that not only integrates the machine with next equipment but also supports the smooth movement of sorted bottles against jamming or overlap over one another due to anti-backup feature.

Frame and Structure Supporter

A bottle unscrambler machine is supported by a strong frame system which is made up of stainless steel. This network can hold the entire system with optimum distance from the floor of facility. The aim of machine frame to protect unwanted vibrations or shaky movement that can affect the process and accuracy.

Bottle Elevator

A bottle elevator is helps in elevations of random bottles gradually from hopper towards the rotational disc. This is part of the machine is particularly useful as it falls the bottles that organizes themselves with the helps of vibratory surface and force of unionize air effectively. This section is composed of slated plates that can easily hold bottles.

Sensors

This is an integral part of bottle unscrambler machine that detects the presence of bottles and identifies the orientation and position. This device notifies the system and making them real-time to adjust in order to maintain the accuracy as well as proper alignment of sorted bottles.

Bottle Pockets

The bouncing bottles are randomly fixes themselves into cavities which is known as bottle pockets or funnel. This section ensures that each bottle is hold into individual pocket so as they can move toward discharging unit such as conveyor. In some devices, this unit is features with narrow passage so bottles can fixes themselves effortlessly and moves out of the system.

Vibratory Disc

This is also known as vibratory feeder, circular turntable or bowl. This is a major part of the machine which vibrates and rotate to make disoriented bottles aligned and fed them into pockets for further transportation. The vibratory disc shaking is gentle that allow bottles to line up in a regular pattern and in a continuous flow.

Electric Cabinet

The machine functionality is basically controlled by electricals connection which is in-housed in a electric cabinet. The electrical components such as modulators, drivers, sensors, are important elements which are enclosed in this cabinet.

Hopper

A hopper or bottles loader is the somewhat a first section where random or disorganized bottles are fed in a bulk quantity. Hopper is a hollow tank that stores and facilitates a continuous supply of bottles to an elevator for sorting procedure.

Levelling Screws and Moveable Tyres

Machine itself is levelled from the floor in order to protect the system shaking and stabilize its structure. The leveling screw enable attaining an even position for the device whereas moveable tyres help in movement of machine from one place to other or to relocate the position.

6.How To Classify Bottle Unscrambler Machine?

A bottle unscrambler machine can be classified into various categories. For example:

BASED ON WORKING STRATEGIES

Conventional Bottle Unscrambler Machine

Conventional Bottle Unscrambler Machine

This is a simple and compact machine that uses mechanical properties to sort and organize bottles. Such as vibration, rotation, and air blowers to fix disorganized bottles.

Vision Based Bottle Unscrambler Machine

Vision Based Bottle Unscrambler Machine- Picture Credit- Directoryindustry

This is a new and sophisticated unscrambler device that works with help of computer-based technology involved photo-sensory detection to position random and disoriented bottles into a consistent form for production line. This machine is very modern in the term of working, design, and production capacity. This is all because of sensory cameras equipped within the system that process the image to identify the position of object.

Gravity Based Bottle Unscrambler Machine

Gravity Based Bottle Unscrambler Machine

A specialized device utilized in production facilities for arranging bottles via help of force of gravity. This is the prime reason behind its cost-effectiveness for any consumer who purchase this machine because it consumes lesser energy as bottles naturally fells downward due to force of gravity and align and organize in respective pockets for further production steps.

BASED ON MACHINE DESIGN

Waterfall Lifting Bottle Unscrambler Machine

Waterfall Lifting Bottle Unscrambler Machine

The machine is designed with an upright lifting system which looks like waterfall. This lifter helps in gently raising of bottle from down to high with adjustable chute which helps upward movement.

Linear Bottle Unscrambler Machine

Linear Bottle unscrambler machine – Picture Credit- KWT

A linear bottle unscrambler machine basically works in a continuous, straight, and a linear fashion. This machine treats unsorted bottles to arrange in a single row.

Centrifugal Bottle Unscrambler Machine

Centrifugal Bottle Unscrambler Machine

A centrifugal bottle unscrambler machine is a type of bottle unscrambler that is designed with a circular rotary disc which works on centrifugal force to arrange and align bottles.

BASED ON ALIGNMENT

Horizontal Bottle Unscrambler Machine

Horizontal Bottle Unscrambler machine Picture credit CVC

This machine beneficial and used in industries where production line where bottle arrangement take place in horizontal fashion. This machine is compact in structure but as compared to vertical it covers more space.

Vertical Bottle Unscrambler Machine

Vertical bottle unscrambler machine

A vertical bottle unscrambler machine is a specialized structure where bottle alignment takes place in a vertical fashion. This is mostly suitable for those production lines where bottles are required to be presented in stand up or vertically. This machine is most often used in those industries where space area is narrowed or limited because the equipment is designed with a smaller footprint.

BASED ON AUTOMATION

Semi-Automatic Bottle Unscrambler Machine

On the basis of automation, a semi-automatic bottle unscrambler machine has a manual feeding system of bottle placement and the rest of the process is done automatically. The bottles move directly within the system through a conveying system and have a better efficiency rate.

Automatic Bottle Unscrambler Machine

As the name describes, a completely automatic process is carried on in an automatic bottle unscrambler machine. Any type of bottle can be moved in an automatic bottle unscrambler machine and also the sorting process is done automatically.

BASED ON PREPARATION

Aseptic Bottle Unscrambler Machine

Aseptic Bottle Unscrambler Machine- Picture Credit CPHI

An aseptic bottle unscrambler machine is suitable for industries that deal with sensitive products, such as, biological units for medicines, blood samples, protein estimation samples, nasal sprays, ear solutions, injections, etc., The machine itself is an enclosed system that is designed following cGMP practices and following quality standards for strictly obeying all requirements of healthcare production. The machine can offer dust protection and it does not follow compressed air working, thus a centrifugal force or rotation is used for unscrambling bottles with the greatest care.

General Bottle Unscrambler Machine

High speed automatic bottle unscrambler machine Picture credit- SED

For solid dosage formulation or general usage of bottle packaging, a high speed automatic unscrambler machine is used for producing high production output. This is an open system that does not strictly follow an aseptic environment. This machine is used for production lines of tablets, capsules, household, nutraceutical, and food industries.

7.What Types Of Bottles Can The Bottle Unscrambler Machine Handle?

There are many types of bottles, jars, and containers that can be handled using a bottle unscrambler machine. Some of them are:

PET	PET (Polyethylene Terephthalate) is a light weighted plastic material that has a transparent layer and also can be recycled easily. PET bottles can easily be used in bottle unscrambler that further packs beverages and liquids.
Glass	Glass is a delicate material that is prone to break if handled improperly. A bottle unscrambler machine can gently deals with random glass bottles and sort them perfectly for the next machine. This material is commonly used in nutraceuticals, pharmaceuticals and the chemical industry in order to prevent product against physical factors like moisture, heat.
Aluminum	Aluminum bottles are also used in a bottle unscrambler machine due to their environmentally friendly nature and resistance to moisture. Aluminum bottles of different sizes move efficiently within a bottle unscrambler machine.
PP	PP or Polypropylene is also another type of plastic material that has high adhesive properties. PP bottles show high resistance against heat and are more precise than a PET material bottle. PP bottles that pass through a bottle unscrambler machine are mostly used for packing of hot and high temperature material.
PVC	Polyvinyl chloride bottles are the most commonly used plastic material around the globe. A PVC material has resistance against chemicals and is relatively light in weight as compared to others. PVC bottles of any size but low temperature resistant can pass within a bottle unscrambler machine easily.
HDPE and LDPE	High Density Polyethylene and Low Density Polyethylene bottles are used in places where bottles can be recycled and used in rough conditions. Both of the bottles are rigid in nature and used for packing of material liquid type material.

8.What Is A Complete Production Line Of Bottle Unscrambler Machine?

A bottle unscrambler machine offer excellent advantage of integrating with other machines of production process easily. This property has ranked bottle unscrambler as an essential equipment for every packaging industry. Following below is the relevant machines of production line.

1	Bottle Unscrambler Machine	Before entering any process, bottle must be fully oriented in an upright position with bottle unscrambler machine.
2	Counting Machine	A counting machine is integrated with unscrambler machine which senses and counts the product and fills into each bottle up to fed data.
3	Desiccant Inserter	Desiccant inserters are also an important machine as it ensures each bottle has placement of desiccator in order to protect development of moisture.
4	Capping Machine	A capping machine is also incorporated in the production line of a bottle unscrambler machine where specific caps are placed on the top of different types of bottles.
5	Sealing Machine	A sealing machine is used to make caps firmly tight and product as tamper evident. An electromagnetic induction of heat waves generates to seal the bottle tightly and ensure the product is freshen, leak-proof, and compliant.
6	Labelling Machine	A labelling machine is important piece of equipment used in production line for printing and sealing labels on the exterior of the bottles with mandatory information related to product, brand, production batch number, production date, and expiry date of the product, etc.,

9.What Are The Technical Problems And Solutions Of The Bottle Unscrambler Machine?

Some of the technical problems that occur in a bottle unscrambler machine with their solutions are:

No	Problem	Description	Solution	Image
1	Breaking Of Bottles	Once the system gets stopped at final attend and the sensors does not close the previous step. The bottles will overlap each other and can cause the breaking of bottles.	The problem can be rectified by the installation of highly precise and new detecting sensors so that the system may not get affected by it. Secondly, adjust the unscrambler disc.
2	Incomplete Unscrambling	When the initial moving mechanism gets overlapped and slow in rate, the system pushes bottles and causes incomplete unscrambler.	a. Align the gears and check the standards of shaft.
3	Jamming of Bottles	Bottles get jammed into conveyor and affect the transport.	Install anti-back up conveyor or reset the setting of the machine.
4	Bottles Passes in disoriented Manner	Sometimes inverted or disoriented bottles are accepted by the sensors.	Check speed of blowers, settings of vibratory disc, or re-install sensors.
5	Creation Of Noise/ Vibratory Sounds	In some of the bottle unscrambler machines, noise or vibration can be observed due to the improper tightening of equipment’s and parts.	a. Checking of machine parts as per plan and the timely greasing can cause a reduction in noise and vibration.
5	Unscrambler Disc doesn’t Move	This problem can be occurred to due failure in transmission or malfunctioning of friction plate.	Replace the friction plate and adjust the transmission gears.

10.How To Compare Different Types Of Bottle Unscrambler Machine?

The bottle unscrambler machine is a versatile invention in bio-sciences engineering that keeps on flourishing and bringing more and more advancement by the progression of new types. See the comparison chart below to know more about basic differences.

Property	Conventional	Rotary	Vibratory	Vision Based	Gravity
Operation	Works using rotation and sensors	Uses rotary disc to fix bottles in the pockets	Utilizes vibrations and gravity force to separate and bottle orientation	Use computer vision technology to sense the correct bottle.	Uses a gravity based mechanism.
Throughput	moderate	High-speed output, this is suitable for large industries	Lower production output as compared to rotary, and vision.	High speed working output	Moderate production rate.
Maintenance	Very simple	simple	Simple	Tricky and computer-based.	Relatively easier.
Structure	Moderate and compact required medium space	Moderate space	Moderate space	Require more space	Moderate space for installation
Bottle orientation	Accurate	Accurate	Accurate	Accurate and consistent	Accurate
Cost	Economical	Cost-friendly	Cost- friendly	Expensive as it is designed with high technology features	Cost-friendly

11.Why Maintaining a Bottle Unscrambler Machine Is Necessary?

To extend the machine's life and save production and maintenance cost; you must take care of the bottle unscrambler machine. This can allow you to meet the production throughput and low downtime. Some of the maintenance tips are discussed below:

Monitormachine workability routinely; monitor loose connections, reset the operating parameters, and store the data if needed.

Replace worn-out or damaged components once it indicates it malfunctioning by producing abnormal sounds or alarming notifications.

Timely lubricationis required to apply to avoid the progression of friction or jamming of movable parts. This activity can ensure faster and smoother operation.

Cleaningof the machine must be done properly by using air rinser, compressed air, and dried cloth to wipe off dust and dirt. This eventually minimizes the chances of cross-contamination and securing overall system.

12.What Are The Major Consideration Factors When Purchasing A Bottle Unscrambler Machine?

When investing on a bottle unscrambler machine it is significant to know the major objectives of your production so you can be possible enough to get the right one. Please find major points to keep in mind prior purchase.

Production Capacity

Picture credit JDA & BCM

Dealing with low to moderate production line possibly leads you to select whether conventional, gravity, or rotary machine. If you’re requiring a machine for a high production line, then computer based (vision) or automatic system will be worth buying; you must know the exact production capacity.

Major Features

Bottle unscrambler machine- Picture credit PHARMAPACK

Will the machine offer a fast changeover, what shapes of bottles can the machine run efficiently? What is bowl diameter? You must be well aware of these questions and features of the machine to get right equipment up to the mark.

Your Production Space

Picture Credit- SMFGMBH

Buying a bigger machine without measuring or estimating your production area would be the biggest mistake. Before selecting a machine, you know the area specification of the equipment as well as the installation flooring of your production facility. This decision must be made prior to selecting any device.

Good Manufacturing Companies & Reliable Supplier

Picture credit- KN Packaging

Keep scrutinizing good and reliable manufacturing and supplying companies is the foremost decision that won't compromise your selection. A good supplier can be found via an internet search, watching good reviews, and contacting them directly to assess their consultation and pre-customer services.

Conclusion

A bottle unscrambler machine is a valuable asset of successful production manufacturing sectors to obtain fast, accurate, and an upright-positioned objects for filling and packaging procedures. This machine gives ultimate productivity and excellent outcomes in a competitive sector. The story is not ended here, day by day advancements bring more and more improvisation in its structure and features that will definitely give you more throughput in the future. Are you still in doubt? Please contact our Team- We will gladly send you further information.

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Bottle Unscrambler Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Bottle Unscrambler Machine: The Complete Buying Guide in 2024 Read More »

Plastic Bottle Washing Machine: The Complete Buying Guide in 2024

Bottle Unscrambler

Plastic Bottle Washing Machine: The Complete Buying Guide in 2024

Did you know your product is at High Risk of Contamination if not cleaned Properly? We know the solution! A plastic bottle washing machine is a perfect answer for general and sterile preparations. You can defy its importance as it ensures the filling container is free from foreign particles.

Before purchasing a plastic bottle washing machine, we would suggest reading this guideline. Here, our experts have collectively answered the major questions that everyone looks for. Have a look!

Add a header to begin generating the table of contents

1.What Is Plastic Bottle Washing Machine?

Plastic Bottle Washing Machine- Picture courtesy alibaba

A plastic bottle washing machine is a mechanical equipment that cleans and sanitizes the bottles by the action of various washing stages including pre-washing, rinsing, deep washing, and air-drying (optional) to offer contamination-free packaging material.

The machine has the ability to wipe not only the inner surface of the object but the exterior as well.

The washing action takes place by high nozzle sprays, water circulation systems, air filter blowers, and sensors. Plastic bottle washing machine is available in various types and sizes so it can be compliant with large and small production lines. The entire motive behind its development is to wipe off the presence and adherence of every minute particle that may progress an unwanted cause of contamination and affect the quality of your brand.

2.What are the Major Industrial Applications of Plastic Bottle Washing Machine?

When it comes to the uses of a plastic bottle washing machine; nevertheless you can find this robust machine everywhere in industrial manufacturing units. Some of the important applications are discussed below:

Chemical Industry

Picture Courtesy- Amazon

The chemical solution is always reactive in nature. One must keep in mind to use cleared and wiped plastic bottles prior to filling them. A plastic bottle washing machine is an essential tool used in this sector for cleanup bottles used to store products like alkali solvents, acidic solutions, buffers, salts, and organic and inorganic products.

Nutraceutical Industry

Picture Courtesy: SKS Bottles

Nutraceutical products include protein powders, probiotics, multivitamins, energy powders, supplements, etc. are available in solid, powders, or liquid form that must be stored in sanitized plastic bottles after being washed and dried by a plastic bottle washing machine.

Pharmaceutical Industry

Picture Courtesy- Tip Top Prop

A plastic bottle washing machine is used in this sector to clean plastic and glass bottles required for the filling and packaging of tablets, capsules, syrups, ointments, sterile preparations, and topical preparations like balms.

Food Industry

Picture Courtesy- Made in China

The filling of food products such as sauces, powders, kinds of ketchup, purees, dressing, topping, and spices, etc needs cleaned bottles which are achieved by using a plastic bottle washing machine.

Cosmetic Industry

Picture Courtesy- Primepac

Cosmetic formulations such as creams, lotions, face foundations, eye conclears, and other products are filled with high-grade sterile plastic bottles that must be passed from the plastic bottle washing machine.

Beverage Industry

Picture Courtesy- Medical News Today

Cleaning and washing plastic bottles prior to packaging and filling soda, juices, mineral water, and energy drinks must require this machine in the beverage industry.

Research and Development

Picture Courtesy CPLAB

This field of science is always looking for perfection. A plastic bottle washing machine is worth buying tool used in the research and development sector for storing sterile samples such as blood samples, plant extracts, biological samples, etc.,

Household Industry

Picture Courtesy Waster.com

Detergents, floor cleaners, floor disinfectants, powders, and shiners, are commonly used filling products used in this industry that are always treated with a plastic bottle washing machine.

Pesticide Industry

Picture Courtesy-Indiamart

Pesticidal filling products must be cleaned and washed as they’re prone to react with foreign particles and affect the potency. A plastic bottle washing machine is a must-have equipment in the pesticide industry production line.

3.What are Advantages of Plastic Bottle Washing Machine?

Plastic bottles washing machine has several advantages and checks all the boxes of hygiene, cleanliness and efficiency. Some common advantages that a plastic bottle washing machine offers are as follows.

Hygiene and cleanliness

Picture Courtesy- NPACK machine

Plastic bottle washing machine provides high level of hygiene and cleanliness by utilizing its multiple nozzles, directing water and soap at all possible angles ensuring a thorough wash in every cycle.

Labor saving and time effectiveness

All automatic plastic bottle washing machines usually require one operator to input machine parameters and perform the entire operations and as many as thousands of bottles can be washed in a given period. Thus cutting labor cost and providing clean bottles in just minutes.

Water saving

Picture Courtesy- Alibaba

Plastic bottle washing machines are designed in such a way that they utilize minimum water for each cycle i.e. water nozzles direct high pressure jets in preset quantities to wash every inch of bottles and save gallons of water which otherwise would have been wasted while cleaning.

Offering High Production Capacity

The quality of wash remains consistent for thousands of working hours provided that machine is looked after and maintained as recommended by manufacturer.

A trustworthy Choice

These machines are utilized in highly regulated industries such as food and pharmaceuticals therefore, these machines are designed to meet both local and international stringent regulatory requirements.

All rounder

Not only plastic bottle washing machine can wash bottles of different sizes or shapes, some models can be used to wash recyclable bottles. These special machines are provided with label removing unit that removes labels using water jets.

4.What is Step-by-Step Working of a Plastic Bottle Washing Machine?

The working principle of a plastic bottle washing machine is super easy. For your understanding, we’ve described them step by step.

STEP NO. 1: LOADING

The washing process began with the loading of upright and properly oriented bottles received from the conveyor belt which is usually connected to the bottle unscrambler. Here, presence of tipping cradle ensuring that bottles are loaded inverted toward the receptacles. This is an important mechanism that is offered with a safety switch which stops if any bottle is jammed between tipping cradle and conveyor so breakage of bottles can be avoided. The received set of plastic bottles is transferred toward the washing zone.

STEP NO. 2: WASHING

WASHING

The washing step is the major stage where several washing sessions are taken place such as:

Picture Courtesy-Traktech

Pre-Soaking

With the help of conveyor chain plastic bottles are first introduced toward pre-soaking zone where warm water around 35ºC helps in removing of foreign particles., This step is essential before the final wash where plastic bottles are subjected to general wash in order to loosen the sticky residues on the inner and outer surface of the plastic bottle.

Washing

Next washing of bottle using jetting system of hot water around 55ºC is jetted inside and outside surface of bottles to remove if any particle left over surface. A high pressure nozzle sprays explode water on the plastic bottle with high intensity. This ensures plastic bottles are washed and cleaned with unwanted particles.

Detergent Soaking

Next conveyor chain brings plastic bottle in detergent soaking zone where hot detergent solution around 75ºC helps in the dissolving greasy, fat particles and flushed out the solution.

Rinsing

In this section rinsing of plastic bottles is involved with water jet system around 65ºC hot water. In order to assure that plastic bottles are cleaned; final rinsing can be done by spraying either water for injection which will eliminate the chances of any remaining or leftover particles inside or outside the plastic bottles. For cooling, water jet around 15ºC is passed through bottles to assure suitable temperature.

STEP NO 3: Air Drying

Picture courtesy- Solvair

Machines are designed with high air-jet heated blowers that simultaneously blow air with high temperatures (75ºC) that can dry the plastic material rapidly and then discharge through the system via a conveyor.

5.What are the Primary Parts of Plastic Bottle Washing Machine?

Parts of machine may vary from manufacturer to model to degree of automation that is why it is always advisable to consult manual provided with your machine. However, basic components of plastic bottle washing machine remain same and include following components.

Parts	Description
Loading Unit	Depending on model a plastic bottle washing machine may be equipped with either infeed conveyer or both infeed as well as outfeed conveyer. The bottles for washing are loaded onto infeed conveyer and after the washing process the bottles are collected from outfeed conveyer. Operated by PLC control the conveyer system comprises of pulleys, conveyer belt etc.
Pre-wash unit	Many automatic and large plastic bottle washing machines contain a pre-wash unit where plastic bottles are washed before entering the main washing cycle. This pre-wash unit removes major chunks of debris and impurities and allow partially cleaned bottles to enter the washing cycle for a proper wash.
Sensor	The main function of bottle sorter is to remove damaged bottles from the main line allowing only the specified bottles to enter the washing cycle. Bottle sorter can be for different types and shapes of bottles.
Main washing unit	The main washing unit hold different multiple nozzles that spray water jet or soap thoroughly cleaning bottles from every angle, nook and corner. The machine first spray soap followed by multiple high pressure water jets for proper cleaning. The high pressure jet remove stubborn stains and dirt that might have escaped the pre-wash unit.
Steaming unit	In order to remove any chances of microbial contamination some machines have steaming unit where bottles are subjected to low temperature sterilization. Some models utilize hot water unit instead of a steaming unit for sterilization.
Drying unit	After washing the next phase in washing cycle is drying of bottles. This is carried out by using pressurized air jets for few minutes to remove water droplets. Alternatively, a low temperature heating unit can also be used that completely dries the bottles.
Control panel	Most machine these days have a digital control panel a part of human machine interface (HMI) which allows for entering required process parameters including machine speed, number of bottles, types of bottles, temperature of heating unit etc. Additionally, the control panel can also be used to switch on and off machine and abrupt halt of process in case of an emergency.
Stainless steel body	In order to limit contamination and reduce microbial growth main body of plastic bottle washing machine is made up of industrial grade steel as per regulatory guidelines. Steel not only reduces contamination, allows easy cleaning but also is sturdy and adds to working life of the machine.

6.What is the Basic Classification of Plastic Bottle Washing Machine?

Today, a plastic bottle washing machine is offering various types of models and types for their consumers. The basic classification of plastic bottle machine is given below:

Manual hh

ACCORDING TO MACHINE AUTOMATION

Manual Plastic Bottle Washing Machine

Manual Plastic Bottle Washing Machine- Picture Courtesy Indiamart

A low cost machine suitable for small batches where bottles are fixed on washing molds present in the machine and water rinsing began upon opening the water valve. This is a simple machine commonly used in education sectors, protype developmental sector or production with astringent budget.

Semi Automatic Plastic Bottle Machine

Semi Automatic Plastic Bottle Machine- Picture Courtesy- Indiamart

This is good solution for running moderate to large production batches that require manual handling for loading and unloading the plastic bottles. The remaining task is performed by the machine itself. This machine offers rapid changeover so suitable for various shapes and size of bottles. Like, manual machine; it is also an affordable equipment involved with cleaning of large capacity output such as washing hundreds of plastic bottles in one hour.

Automatic Plastic Bottle Washing Machine

Automatic Plastic Bottle Washing Machine- Picture Courtesy Alibaba

This is fully automatic device requires no manual intervention. Loading of bottles can be achieved by conveyor that receives sorted bottles from unscrambler machine. A sophisticated step by step procedure is followed by automatic system fed by an operator using PLC system. This machine is super giant in the term of working as it can wash and dry hundreds of bottles in minutes and thousands of bottles in each hour.

ACCORDING TO MACHINE SIZE

Benchtop Plastic Bottle Washing Machine

Benchtop Plastic Bottle Washing Machine- Picture Courtesy Bottle washer

A small solution for those sectors that require super hygienic material for their practicals or production procedure with a limited space, limited budget, or small batches. A benchtop plastic bottle washing machine is available in semi-automatic feature that can manage moderate bottles washing in each session.

A Large Plastic Bottle Washing Machine

Large Plastic Bottle Washing Machine- Picture Credit Qpack

This is an ideal machine for big industries where day and night production processes are carried out automatically. The entire setup offers rapid change over time and flexibly can be integrated with other machines of the production. This machine requires a large installation space and gives you higher washing capacity with 100% robustness and accuracy each minute.

ACCORDING TO MACHINE STRUCTURE

Tunnel Plastic Bottle Washing Machine

Tunnel Plastic Bottle Washing Machine- Picture Courtesy Indiamart

A large industrial plastic bottle washing machine where machine design resembles tunnel like structure which is used to treat bulk quantities of unwashed bottles and discharge cleaned bottles after passing through various transition of stages. For example, pre-washing, washing, rinsing, etc., Machine can wash various size, shapes, and different material bottles rapidly and delicately.

Linear Plastic Bottle Washing Machine

Linear Plastic Bottle Washing Machine-Picture Courtesy Watersman Engineering

These machines are designed with simple linear structure with conveyor unit that is responsible for transporting plastic bottles into pre-washing, washing, and other zone of the machine in a linear fashion. This machine is suitable for medium to large production batches.

Rotary Plastic Bottle Washing Machine

Rotary Plastic Bottle Washing Machine-Picture Courtesy Alibaba

As it names show, a circular carousal or turntable is responsible for subjecting bottles for various stages/units of the machine for efficient washing procedure. As compared to linear this machine can encompass with large batches.

ACCORDING TO DIFFERENT WORKING PRINCPLE

Air Jet Plastic Bottle Washing Machine

Air Jet Plastic Bottle Washing Machine- Picture Courtesy- Indiamart

This system basically utilizes a powerful pressurizes water nozzles to spray water and compressed air to eliminate dirt and sticky particles adhere on inner and outer walls of the bottle.

Ultra-Sonic Plastic Bottle Washing Machine

Ultra-Sonic Plastic Bottle Washing Machine- Picture Courtesy- SPM

This is also known as a sonicator that works upon generation of high vibratory waves in the form of striking bubbles that gently implodes over walls of the bottles to wipe the unwanted particles. This is suitable for highly sensitive laboratories or healthcare industries.

7.What is the Complete Production Line of Plastic Bottle Washing Machine?

The following picture above demonstrates auxiliary equipment used in a production line of plastic bottle washing machine. The function of this complete unit is discussed below:

Machine	Functions	Picture
Bottle Unscrambler	Before subjecting plastic bottles to washing machine it must be oriented in aligned and uniform pattern. Moreover, detection of damaged bottles also must be done. For this a bottle unscrambler machine is integrated with plastic bottle washing machine to receive bottles perfectly undamaged and in upright position.
Plastic Bottle Washing Machine	Upon receiving plastic bottles, they passes through the machine and cleaned bottles are discharged toward filling machine.
Tablet/Capsule Counting Machine	A cleaned set of plastic bottles are subjected for counting procedure using this machine. At this stage, one must assure that filling material is contamination free and product storage with no moisture content.
Capping Machine	Once plastic bottles are filled, they’re subjected to capping machine to secure insight product against leakage, spillage, and interacting with external environment. Machine has ability to twist caps around the next of bottles and discharge them for next machine of the facility.
Labelling Machine	This integrated machine offer significant job by printing and applies label over neat and cleaned external surface of the bottle. One must keep in mind, if external surface is uneven, labelling won’t be done properly. The labeling machine can stick label with mentioned information about the ingredients, date of manufacturing, expiry, dosage, batch number etc.,
Cartoning Machine	A ready to market filled product is always subjected to cartoning machine for safe transportation. A cartoning machine can flip the carton and insert the bottle with leaflet automatically.

8.What Other Things Plastic Bottle Washing Machine Can Wash?

Beside plastic bottles, a plastic bottle washing machine can wash several other things. For example,

Type	Description	Picture
Ampoules	These are commonly used in medical, nutraceutical, cosmetics, and pharmaceutical section. Plastic bottle washing is of great benefits as it features ampoule washing as well.
Vials	Different sizes vials can be washed using plastic bottle washing machine which is required for sterile preparations such as antibiotics, vaccines, chemotherapeutic agents, optic solutions, and so on.
Beakers	Glassware and laboratory objects such as tubes, beakers, funnels can be washed using plastic bottle washing machine.
Cans	Cans of various sizes are commonly used for storing beverage, food products are washed with this machine.
Jars	Plastic bottle washing machine can be adapted for cleaning various jars used in broad applications.

9.What are the Technical Challenges and Solutions of Plastic Bottle Washing Machine?

Technical Problem	Possible Causes	Solution
Plastic Bottle Jamming	This mostly happens when bottle stuck between tipping cradle and conveyor	Reset machine setting. Replace safety switch. Check and clear the passage between tipping cradle and conveyor.
Improper Bottle Cleaning	This happens due to low jet pressure of water. Clogging of pressure nozzles.	Set the parameters to achieve required water jet pressure. Check water temperature and unclog the nozzle sprays
Plastic bottle damage	This can be caused by excessive pressure during. The misalignment of grippers can also damage bottles by scratching the surface.	Adjust the speed of conveyor. Validate the positioning of bottle and readjust the alignment.
Bad Smell from Plastic Bottle Washing Machine	This can be due to low maintenance and improper cleaning.	This is recommended to clean and maintain machine on the regular basis to avoid development of mushy smell.

Conclusion

A plastic bottle washing machine is an ideal addition in the packaging line that ensures your products safety and security by clearing unwanted materials inside and outside the bottle. Of course, this robust machine is significantly important to gain customer’s satisfaction and maintain competitive reputation in the marketplace. Before, purchasing the machine, we would suggest to please contact our team for more information and machinery details. Send us short message now!

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Plastic Bottle Washing Machine from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Plastic Bottle Washing Machine: The Complete Buying Guide in 2024 Read More »

Automatic High Speed Bottle Unscrambler: The Complete Buying Guide In 2024

Bottle Unscrambler

Automatic High Speed Bottle Unscrambler: The Complete Buying Guide In 2024

In a world where only change is constant, technology is surpassing all the conventional means of industrial processing including manual filling, packaging, mobilization and much more. Now, whether you are running any liquid production firm in pharmaceutical field or food sector, chemical sphere or cosmetic zone, cutting edge equipment are available to address your problems regarding uplifting your production and convenience.

Among them, automatic high speed bottle unscrambler is one of the topnotch machines with the ability to revolutionize your existing manufacturing by replacing manual labor with advance automatic bottle feeding functioning. In this way, you can get dual benefits of cost reduction and superior output. If you want to take advantage of its resilience and speedy performance with simple maintenance, make sure to know all about automatic high speed bottle unscrambler by absorbing this review. Let's take a start and explore the information provided below!

Add a header to begin generating the table of contents

1.What Is An Automatic High Speed Bottle Unscrambler?

An automatic high speed bottle unscrambler is a machine designed to innovate the industrial processing by automating unscrambling of bottles. It works through systematic process of taking randomly positioned bottles from hopper and feeding them onto conveyor belt in a serialized manner while ensuring accuracy and efficiency.

Made with quality stainless steel the machine is highly compact and durable for processing bulk containers at once. In addition, the feature of adaptability and precision is adding more to its suitablility for all kinds of plastic and non-fragile bottles in a variety of shapes and sizes. Furthermore, the device is more desirable for large scale industries for fostering hassle-free bottle handling replacement of labor.

2.What Are The Benefits Of Using An Automatic High Speed Bottle Unscrambler?

Automatic high speed bottle unscrambler carries along with it vast array of benefits which can not only increase your production volume but also show great versatility in terms of applicability. Some of these features are as follows:

High Level of Automation

One of the key attributes of the machine is high level of automation it possesses. For instance, the bottle spreading, turning, transmission, positioning and detection are all done by machine automatically. This eventually reduces the time spent on manual feeding of bottles and leads to fast processing.

Resilience

This renowned machine is highly resilient for processing all and sundry bottles in terms of shapes, sizes and material. In addition, flat, square, round and special shaped bottles can be easily unscrambled by it.

User-friendly

With simple structure, scientific control system, and automatic nature, the machine has fixed setting in advance. Thus, it requires minimal training for execution and espouses uncomplicated method of operation.

High Speed

Another and most crucial benefit of automatic high speed bottle uncrambler is its speed proficiency. The automatic dispersal of bottles speeds up the process by feeding over 150 bottles in a minute, eventually, uplifting the production outcome.

Ensures safety

With integrated features of utility model and soft handling the machine ensures bottles's safety by keeping their integrity.

3.How An Automatic High Speed Bottle Unscrambler Works?

The machine’s course of action is quite simple and undemanding. By looking into the underlying steps, you will easily get how an automatic high speed bottle unscrambler works:

Loading

The process of unscrambling begins with loading bulk of empty bottles into hopper.

Transmission

Picture Courtesy: HO-MA

Now, with the help of exit conveyor, bottles are swiftly taken from storage hopper and transmitted into the unscrambling station.

Orientation

The bottles spread over the turntable, whose constant rotation enable them to fill the hollow molds. At this point, bottles are oriented through aligner and agitator.

Descent

Descent

Picture Courtesy: TRAKTECK

Once the bottles are accurately positioned, they will be moved forward in an upright position through moving disc. Meanwhile, bottles will be released from molds by a steel bar which works as barrier and align the bottles to move in linear direction.

Final Discharge

Picture Courtesy: TRAKTECH

Finally, the bottles will be delivered to conveyor belt in serialized manner with the help of vacuum.

4.Describe The Various Components Which Make Up An Automatic High Speed Bottle Unscrambler?

An automatic high speed bottle uncrambler is made up of several key components which are described below:

Hopper

Hopper is a hollow container where bulk of bottles is poured before unscrambling, to feed the machine with bottles. It is connected with exit conveyor which accomplish the task of transporting empty bottles by carrying them in portions.

Unscrambler Station

It is a large circular station made up of stainless steel where the unscrambling of bottles occurs. It holds inside it the distributor disk, molds, agitator, and turntable channel which collectively move the bottles and align them in right position.

Distributor Disk

Distributor disk is a round turntable located inside the unscrambling station with series of plastic molds in its border. Its function is to orient the bottles’ positioning by constant revolution.

Molds

Molds are empty holes present in series of form at the end of distributor disk. They help in holding empty bottles or containers.

Air Blower

A type of fan that is located right above the distributor disk whose constant revolution causes air blow thus prevent bottles jamming.

Agitator

Steel agitator is attached to the unscrambler station which change the direction of positioned bottles towards conveyor.

Conveyor

It takes the oriented bottles from unscrambler funnel and transports them towards further processing.

PLC Control System

It is considered as the brain of an automatic high speed bottle unscramble which control the entire processing of machine. Through attached HMI, user interacts with machine and communicates the desired commands to control system.

Electric Cabinet

Electric cabinet is the powerhouse of the machine which protects electrical wires and other equipment by preventing electric shocks.

Protector

Protector is the glass cover around the machine which is useful in providing safe and dust proof environment for processing.

Main Frame

Main frame of the machine is compact and durable made up of stainless steel. It is the supportive device for machine which prevent shaking and allow stable performance during operation.

Movable Casters

Wheels are usable for easy transportation of machine from one place to another.

5.Which Kind Of Bottles Can Be Processed By An Automatic High Speed Bottle Unscrambler?

An automatic high speed bottle unscrambler is capable of processing large number of bottles with respect to different sizes, shapes as well as material such as:

With respect to size

Bottles with diameter of φ20~φ100mm and height from 40~240mm can be easily unscrambled by using this machine.

With respect to Shape

All shapes of bottles including flat, square, oval, rectangle, round and irregular bottles are perfectly eligible to be processed by the machine.

With respect to Material

An automatic high speed bottle unscrambler is the best suitable for feeding all sorts of plastic and metallic bottles comprising PET, PE, PVC, HDPE, aluminum and steel respectively.

6.What Are The bottle unscramble Types Of Automatic High Speed Bottle Unscrambler?

An automatic high speed bottle unscramble can be classified into two broad categories. This division will make you enable to understand the potential nature of the machine. They are as under:

Fully Automatic Bottle Unscrambler

Picture Courtesy: CVC

Fully automatic bottle unscrambler is heavy-duty cutting edge equipment with superior quality stainless steel construction that independently carries out entire process of bottle unscrambling. With high speed, it has the potential to process highest possible number of 150 pieces per minute through self operated mechanism. Whether round or square, flat or irregular, the machine can feed flexible range of PET, HDPE, and PP bottles. This makes the machine appealing for almost all industrial sectors encompassing food, beverage, medical, cosmetic and other enterprises.

Semi-Automatic Bottle Unscrambler

Semi-automatic bottle unscrambler on the other hand requires minimal intervention of the user to feed turntable with empty bottles. However, the process is then automatically preceded via machine. It produces relatively less outcome as compared to fully automatic machine. Its precise and simple body leads to convenient handling and easy mobilization of the machine. Industries running small to medium capacity under 5000 BPH are likely to be benefited by this solution.

Automatic Linear Bottle Unscrambler

Picture Courtesy: KWT Machine System

Automatic linear bottle unscrambler is employed to handle the wide range of plastic bottles inclucing cylindrical, square and rectangular containers into production line. It is well known for its fast adaptation to different bottles without changing tools. It functions through centrifugal disc on which bottles are supplied and oriented with fast pace. Hence, it suits the need of producers from diverse sectors such as oil and lubricants, cooking oil, and beverage industry etc.

Automatic Rotary Bottle Unscrambler

Picture Courtesy: TRAKTECK

Rotary bottle unscrambler is highly proficient in its task of unscrambling bottles with height from H 50-300mm and diameters from D 25-90mm. The machine uses high pressure blowing fan for bottle orientation, thus reduces high energy cost spent on compressed air. The ingenious funnel system enable simple and fast changeover resulting in production of 12,000 bottles per hour, unfolding 40% increase in its efficiency. The machine is well-equipped to comply all the demands of food, non-food and personal hygiene enterprises.

Automatic Monobloc Bottle Unscrambler/Rinser

Monobloc bottle unscrambler is the composition of two equipment, designed for performing the task of rinsing and unscrambling bottles before they reach to production line for filling. This complex solution aims at facilitating the firms which are highly sensitive in terms of maintaining the hygiene in their processing such as pharmaceutical, surgical and food sectors. In addition, the unified management followed by high productivity and easy maintenance are making the machine cost-effective.

Robotic Bottle Unscrambler

TRAKTECH

As the name indicates, this advance and innovate bottle unscramble works by intelligent robotic system. The robot picks and places bottles by means of vacuum gripper. The robotic picking line mechanism is achieved by using detection system. This feature makes the area of machine more comprehensive where all types of plastic bottles can be positioned accurately irrespective of their size and shape. It is more suitable for pharmaceutical, daily chemicals, and cosmetic industries.

7.How An Automatic High Speed Bottle Unscrambler Is Different From Semi-Automatic Bottle Unscrambler?

There are certain differences between automatic high speed bottle unscrambler and semi-automatic bottle unscrambler which may be clearly understood by looking into the table below:

No	Features	Automatic High Speed Bottle Unscrambler	Semi-Automatic Bottle Unscrambler
1	Automation	Highly Automated, independent in processing	Semi-automatic, requires user intervention
2	Structure	Complex with different components	Relatively simple
3	Speed and Capacity	18,000 bph	5000 bph
4	Bottle Range	Multi-format no parts changeover required	May require change of tool for different bottles
5	Application	Large scale production line	Medium to small businesses

8.Enlist The Applications Of An Automatic High Speed Bottle Unscrambler?

This machine can be utilized in huge number of industries which are shown below:

Pharmaceutical Industry

It must not be surprising to say, that pharmaceutical industry will always be on the top of the list whenever the question arises about uses of an automatic high speed bottle unscrambler. It implies that, pharmaceutical industries from all over the world are taking advantage of this machine for processing tablets, pills, vaccines and syrups etc.

Chemical Industry

The machine also suits need of chemical industry where it is used for fulfilling their job of processing daily chemicals such as detergents, surface cleaners and other organic and non-organic chemicals.

Cosmetic Industry

Another industry, which is constantly engaged in the production and filling of lotion, shampoo, hand wash and other items into bottles also requires advance equipment. Therefore, an automatic high speed bottle unscrambler becomes an undeniable need for it.

Beverage Industry

All types of beverages including juices, wine, soft drinks and fresh pulp have non-stop consumption; consequently, industries are looking forward for efficient solutions. Here comes the need for automated liquid filling lines of which the automatic high speed bottle unscrambler is an inevitable part.

Food Industry

Like other firms, food industry is also involved in food supply chain where much emphasize is made on on ready-made food. Hence, this sector is also included in the broad spectrum of automatic high speed bottle unscrambler application for using it to accomplish the processing of products like ketchup, honey, sauces, edible oil etc.

9.Which Measures Can Be Taken To Maintain The Efficacy Of An Automatic High Speed Bottle Unscrambler?

Even though an automatic high speed bottle unscrambler is in itself a complete solution for undertaking bottle unscrambling, certain steps must be taken in order to keep it on right track and achieve maximum output. These are highlighted below:

Regular Maintenance

Before starting operation, remember to check the power connection of machine, also check the screws if they are loose and need to be tightened. Along with that, you may be required to check and reset the functional parameters of machine as per your daily need of production.

Lubrication

Lubrication of machine is essential to avoid friction and jam of machine parts. Therefore, the movable parts should be well lubricated to achieve faster and smooth performance of machine.

Proper Cleaning

Air rinser, compressed air and a dry soft cloth can be used to clean and wipe out all the dirt and dust of machine. It eventually helps in providing secure environment for bottles to process by eliminating the possible toxins released during continuous movement of PET bottles.

Timely Parts Renewing

It is important to monitor each part of machine before and during operation. In case of finding any abnormality or irregular noise, make sure timely renewability of parts as it may impact the overall performance of machine.

10.Can Automatic High Speed Bottle Unscrambler Be Integrated With Other Machines?

Automatic high speed bottle unscrambler can be easily integrated with other machines to make production lines for processing liquids, solids and other stuff. These machines include:,

Labeling machine

Labeling machine is a device used to apply adhesive stickers or labels over the empty or filled bottles of different sizes. Most of the industries prefer to integrate automatic high speed bottle unscrambler directly with labeling machine, while others may opt for a liquid or powder filling machine to be connected with it before labeling.

Liquid Filling Machine

Picture Courtesy: KWT Machine System

Liquid filling machine is used to fill the bottles and containers with precise amount of liquid. It is therefore, connected with automatic high speed bottle unscrambler for the ease of operation in producing large volumes.

Powder Filling Machine

Picture Courtesy: CVC Technologies

Products such as milk powder, medicine powder and condimentsetc., require advance technology to be filled in bottles and containers. For this purpose, powder filling machine has been introduced and to automate the process, automatic high speed bottle unscrambler is all time appreciated.

Tablet Counting Machine

Picture Courtesy: King

The machine can also be linked with tablet counting machine which is responsible for counting tablets, pills and capsules in bottles.

Bottle Capping Machine

Picture Courtesy: Bellartx

This machine is designed to cover the filled bottles with caps through technology. Hence, it is eligible to be included in the production line of which automatic high speed bottle unscrambler is already part.

Induction Sealer

Induction sealer is one of the key equipment when dealing with liquid or solid packaging in bottles. By using electromagnetic radiation, this machine tightly seals the bottles neck with aluminum foil which get stuck to the bottleneck when heated. It thus prevents inside content from harmful ultraviolet rays and humidity.

11.Elicit The Solutions To Common Problems Encountered While Using An Automatic High Speed Bottle Unscrambler?

While using an automatic high speed bottle unscrambler you may encounter minor issues which if not eliminated can create barrier in your way towards successful processing. Therefore, few possible troubleshooting are discussed below for your ease:

No	Problem	Cause	Solution	Picture
1	Bottles get chocked in mold	It happens when bottles are larger or smaller than adjustment of distributor disk	It can be solved by adjusting the height of distributor disk and width of outfeed unit
2	Bottle with mouth downward do not get rejected	There is insufficient air supply by air blower	Increase the blower supply
3	The distributor disk get stuck	It is due to friction or damaged gear	Lubricate the motor under disk and replace gear if damaged

12.Which Factors Must Be Considered In Order To Purchase Topnotch Automatic High Speed Bottle Unscrambler?

Choosing the right machinery for your business is not an easy job. Therefore, we have gathered some of the crucial factors which if followed will definitely lead you to make a sound purchase of the best automatic high speed bottle unscramble. These include:

Production Volume

Firstly, make sure to have a look towards your existing production and answer certain questions including your current production and how much increase do you want to make by adding automatic high speed bottle unscramble. It will help you to decide which model do you need like fully automatic or semi-automatic.

Type of Bottles

Another factor to consider is the type of bottles you are using, as it will influence your processing. For example, linear bottle unscrambler can feed limited types of bottles, but if you have containers with different shapes and sizes, then rotary bottle unscrambler is best option.

Auxiliary Devices

It is a matter of fact, that you will need other supportive devices for automatic high speed bottle unscrambler such as bottle capping machine, induction sealer or labeling machine. Hence, it is significant to make a list of these machines, to complete the production line for your manufacturing.

Technical Assistance

From installation of machine to technical training of staff, the support of vendor is required in every initial step. This elicits the importance of technical assistance on part of manufacturer, hence; do not forget to satisfy yourself by looking into the remote support provided by seller.

Quality Assurance

While making such big purchase, you should at least get quality assurance confirmed by the supplier in form of warranty. Moreover, you can also go for examining the quality of machine in by checking its compliance with the regulations fixed by GMP, FDA and ISO.

Conclusion

An automatic high speed bottle unscrambler is becoming the obligatory machine for almost every industry. Without its use, the production efficiency of your firm will surely face certain challenges of time waste, labor cost and low output. Therefore, one must acknowledge its importance and take suitable decision on right time to make their business more productive, lucrative and effective, for which the only solution is an automatic high speed bottle unscrambler. If you are intending to go for it, feel free to approach us via given link!

Don't forget to share this post!

CONTACT US

Tell us your raw material and project budget to get quotations within 24 hours.

WhatsApp Us: +86 181 7101 8586

The Buyer's Guide

Want to get Best Price Automatic High Speed Bottle Unscrambler from China?

Tell us your material or budget, we'll reply you ASAP within 24 hours

Automatic High Speed Bottle Unscrambler: The Complete Buying Guide In 2024 Read More »
