Ultra Fine Powder Grinder: The Complete Buying Guide In 2024

Industries like food processing, pharmaceutics, chemical and cosmetics that grind material into small fine particles mostly use ultra fine powder grinder to ease their process. These machines break down the solid materials into small particles with high speed and precision.

Ultra-Fine-Powder-Grinder

Ultra Fine Powder Grinder -photo credits: vibrosievingmachine

In order to select the best type of ultra fine powder grinder, Allpack is providing you this complete buying guide that can resolve your queries and allow you to select the best ultra fine powder grinder for your production setup. So go through this guide and enjoy reading it!

    Add a header to begin generating the table of contents

    1. What Is An Ultra Fine Powder Grinder?

    Ultra-Fine-Powder-Grinder

    Ultra Fine Powder Grinder: vibrosievingmachine

    Ultra fine powder grinder is also called superfine powder grinder, which a type of grinding equipment that is used to grind materials into extremely fine powders. The machine is designed in a way that it grinds hard materials like rice, sugar, grains and etc.

    Ultra fine powder grinder typically grinds the material with high-speed rotating blades that break down the material into smaller particles. The machine further uses airflow for separating the fine powders from the coarser particles.

    2. What Materials Can And Can Not Be Ground Using An Ultra Fine Powder Grinder?

    Some of the materials that are compatible with ultra fine powder grinder and others that cannot be ground are as follows

    Materials That Can Be Cut Using An Ultra Fine Powder Grinder

    An ultra-fine powder grinder is typically used to grind particles to a size of less than 10 microns. Some materials that can be ground using an ultra-fine powder grinder are

    • Minerals

    Mineral-Powders

    Ultra fine powder grinders are used to grind various minerals like calcite, talc and kaolin. These minerals are ground with too much fine particles up to 15 microns.

    • Plastics

    Plastic-Granulars

    Different types of plastics like PVC, polyethylene and polypropylene can be ground into ultra fine powders using an ultra fine powder grinder.

    • Food Products

    Food-Powders

    Food products including herbs, spices, and sugar particles can easily be ground using ultra fine powder grinders.

    • Chemicals

    Chemical-Powders

    Lastly, pigments, medicines and dyes are the few chemicals that are efficiently and precisely ground using an ultra fine powder grinder

    Materials That Cannot Be Cut Using An Ultra Fine Powder Grinder

    Some of the materials are not compatible with these machines. An example of these materials is

    • Materials With High Moisture Content

    High-Moisture-Powders

    Wet food materials or damp chemicals that have high moisture content in them are not suitable for grinding using an ultra fine powder grinder. The reason remains that the moisture can cause clogging or clumping of machine. Moisture contents are mostly present in hygroscopic materials that absorb moisture from the environment like paper, salt, sugar, cement and etc.

    • Fibrous Materials

    Fibrous-Granulars

    Some fibrous materials such as paper, wood, and textiles are typically not suitable with an ultra fine powder grinder because during the grinding process the materials tend to be matted and tangled.

    3. What Are The Applications Of An Ultra Fine Powder Grinder?

    An ultra fine powder grinder has a wide range of applications in numerous industries. Some of the common applications of an ultra fine powder grinder are

    • Pharmaceutical Industry

    Pharmaceutical-Industry-16

    Pharmaceutical industries use ultra fine powder grinders for grinding active ingredients into fine powders. These fine particles can easily be incorporated into tablets, capsules and other forms of medication.

    • Food Industry

    Food-Powders

    An ultra fine powder grinder grinds spices, herbs, and other food ingredients into fine powders. These powders are used in various food preparation and meal items.

    • Chemical and Cosmetic Industry

    Chemical-Powders

    Ultra fine powder grinders are also used for grinding materials used in the cosmetics, chemical and plastic industries. Ground pigments and dyes are mixed with different ingredients to produce high-quality cosmetic products.

    The plastic and cosmetic industry uses ultra fine powder grinders for manufacturing purposes. They are engaged in the manufacturing of a wide range of plastic products, films and coatings.

    4. What Are The Advantages Of An Ultra Fine Powder Grinder?

    Some of the specific advantages of an ultra fine powder grinder are

    • Multi Stages Of Grinding

    Some ultra fine powder grinders are with multiple grinding stages. These stages help the grinder to achieve more uniform and precise particle size distribution.

    • Precise Grinding

    An ultra fine powder grinder is designed in a way that it grinds materials into very small particle sizes with high precision and accuracy. The particle sizes ground by an ultra fine powder grinder can be achieved at a level of fewer than 10 microns.

    • Dust Collecting

    As a result of grinding process, a lot of fine dust particles are been generated which can harm the concerned workforce and environment. It also includes dust collection systems in its structure that help the machine to ensure a clean working environment.

    • Standardize Grinding

    No matter which industry you are, if the process is to deal with fine particles, ultra fine powder grinder can provide standardized grinding at each interval. Highly precise grinding and consistent particle size distribution makes the grinder of stand unique.

    5. What Is The Working Principle Of An Ultra Fine Powder Grinder?

    Working-Principle-Of-Ultra-Fine-Powder-Grinder

    Ultra Fine Powder Grinder -photo credits: yindamachinery

    Some of the steps involved in the process of an ultra fine powder grinder are

    • Initially the material is fed into the grinding chamber of an ultra fine powder grinder. This process is usually done through a hopper or feed tank, present mostly at the top of a grinder or through the conveying system.
    • The second step takes place inside the grinding chamber where material is impacted to impact hammer and this impact causes collision, shearing and fiction.
    • As the air pressure rises, the material enters inside the pulverized.
    • The grinding of material into particles is carried out due to compression and shearing forces.
    • Once the material is ground in to the desired particle size, the material with required sized enters the collection system through impeller and rest is sent back to the pulverized.
    • Like this the system for forming of ultra fine powder grinding remain continue till the process ends.

    6. What Are The Main Components Present In An Ultra Fine Powder Grinder?

    Main-Components-Present-In-An-Ultra-Fine-Powder-Grinder

    The main components of an ultra fine powder grinder are

    Feeding Hopper

    This is the main part of an ultra fine powder grinder where the grinding material is fed into the system. The feeding hopper is mostly made up of hard materials like stainless steel, tungsten carbide or ceramic. These materials can easily withstand with the abrasive nature of the grinding process.

    Motor

    The motors are the power source that drives the rotation of the grinding discs or rollers. Typically an electric motor is present in an ultra fine powder grinder so that it provides high speed and torque required for the grinding process.

    Control Panel

    The control panel is the part that allows the user to control and adjust the grinding process parameters. A panel includes switches, buttons, and other displays that show the operating conditions of an ultra fine powder grinder.

    Dust Collection System

    At the end of an ultra fine powder grinder, a dust collection system is incorporated which controls the dust that has been generated during the grinding process. This system may include a dust collector, a filter, or a ventilation system.

    Mill Chamber

    The mill chamber of an ultra fine powder grinder is part of the grinder that contains the grinding components. It is the area where the raw materials to be ground are introduced and where the grinding process takes place.

    The design of the mill chamber can vary depending on the type of ultra-fine powder grinder. However, in general, it consists of a rotating disc or a set of rotating discs with grinding pins or other grinding components that grind the materials as they pass through the chamber.

    Cyclone Separator

    A cyclone separator is used to separate the ground material from the air or gas stream that carries it. The cyclone separator works on the principle of centrifugal force, which separates particles of different sizes and densities.

    The cyclone separator typically consists of a conical or cylindrical vessel that is designed to create a vortex flow. The ground material and air or gas stream enters the top of the cyclone separator and are forced to spin around the inner walls of the vessel.

    The centrifugal force generated by the spinning motion causes the larger and denser particles to move towards the outer walls of the vessel and settle at the bottom of the cyclone separator.

    The finer and lighter particles are carried along by air or gas stream and are directed toward the outlet at the top of the vessel. These particles may be further processed or collected in a separate container for later use.

    Blower

    The blower is responsible for creating and maintaining the air or gas flow that carries the ground material from the grinder to the cyclone separator or other collection device.

    The blower creates a low-pressure area near the outlet of the grinder, which draws in the air or gas stream and the ground material. The blower then accelerates and compresses the air or gas stream, which increases the velocity and maintains the flow of material through the system.

    • Dust Discharging Valve

    The dust discharging valve is used to control the discharge of dust or fine particles from the grinder to the collection system. This valve helps to minimize the amount of dust that escapes into the surrounding environment and ensures that the collected material is as pure and contaminant-free as possible.

    The dust discharging valve is typically located at the bottom of the grinder or cyclone separator, where the ground material and air or gas stream exit the system. The valve may be manually operated or automated and can be opened or closed to control the flow of material to the collection system.

    7. What Types Of Ultra Fine Powder Grinders Are There?

    There are several types of ultra fine powder grinders depending upon their applications and usage. Some of the most common types of ultra fine powder grinders are

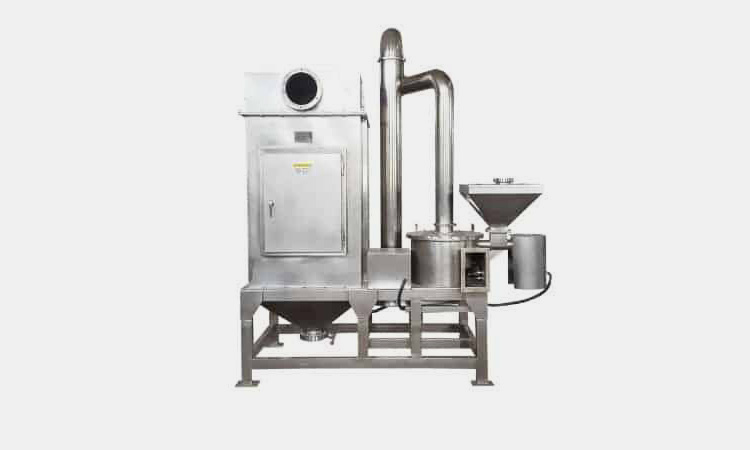

    • Compact Design Ultra Fine Powder Grinder

    Compact-Design-Ultra-Fine-Powder-Grinder

    Compact Design Ultra Fine Powder Grinder -photo credits: yindamachinery

    Compact design of an ultra fine powder grinder means that it takes up relatively little space, making it ideal for use in environments where space is at a premium. This type of grinder typically uses a high-speed rotor and a series of grinding plates or blades to grind materials down to a very fine powder.

    • Split Design Ultra Fine Powder Grinder

    Split-Design-Ultra-Fine-Powder-Grinder

    Split Design Ultra Fine Powder Grinder-photo credits: yindamachinery

    Split design ultra fine powder grinder contains two main parts: a grinding unit and a motor unit.

    The grinding unit is located at the bottom of the machine and contains the grinding chamber, grinding plates and other components that are involved in the grinding process.

    The motor unit is located at the top of the machine and houses the motor, control panel and other components that are involved in driving and controlling the grinder.

    A split design ultra fine powder grinder allows for easy access to the grinding chamber, making it easier to clean and maintain. The motor unit can be removed from the top of the machine, leaving the grinding unit exposed and easily accessible.

    • Low Temperature Ultra Fine Powder Grinder

    Low-Temperature-Ultra-Fine-Powder-Grinder

    Low Temperature Ultra Fine Powder Grinder-photo credits: yindamachinery

    Low temperature ultra fine powder grinder keeps the temperature of the materials being ground low. This is achieved by using a cooling system that reduces the temperature of the grinding chamber, grinding plates or blades and the material being ground.

    Low temperature ultra fine powder grinder can prevent the heat generated during the grinding process from causing damage to the material being ground or altering its properties.

    8. What Specifications Of Ultra Fine Powder Grinders Do You Need?

    What-To-Consider

    Some of the common specifications that each buyer should consider are

    • Material Capacity

    The capacity of the material that a machine can handle is an important specification to be considered. This refers to the amount of material that can be processed by the machine in a given time. The capacity depends on the size of the grinding chamber, the motor power, and other factors. All these factors are to be considered primarily.

    • Particle Size Range

    The particle size range of an ultra fine powder grinder is that factor that tells how much the grinder is capable of producing fine particles in a given time. An ultra fine powder grinder should be capable of producing the desired particle size distribution which may range from a few microns to several hundred microns.

    • Grinding Media

    The type and size of grinding media used in an ultra fine powder grinder can impact the grinding efficiency and fine particle size distribution. Checking the material of grinding media is an important consideration as it is directly involved with the grinding process.

    • Grinders Construction

    The material of construction that an ultra fine powder grinder is made up of is also an important consideration. It will directly impact the durability and life of the grinder. An ultra fine powder grinder should be made of materials that are strong against the abrasive nature of grinding process.

    9. What Are The Differences Between Ultra Fine Powder Grinding And Fine Powder Grinding?

    The detail differences among an ultra fine powder grinding and fine powder grinding is as

    • Particle Size

    An ultra fine powder grinding is typically used for materials that are to be reduced to a particle size of less than 10 microns.

    Ultra-fine-powder

    While fine powder grinding is mainly used for materials that are to be grinded at a particle size in between 10 and 100 microns.

    Fine-powder

    • Equipment Used For Grinding

    An ultra fine powder grinder uses machines like compact design ultra fine powder grinder, split design ultra fine powder grinder, low temperature ultra fine powder grinder and etc.

    Whereas a fine powder grinder uses basic super fine powder grinder, manual fine powder grinder or automatic fine powder grinder.

    Powder-Grinder

    • Processing Time

    Ultra fine powder grinding may require longer processing times to achieve the required level of precision and smaller particle size.

    Fine powder grinding does not require such longer processing times and can be adjusted at medium levels.

    10. What Are The Differences Between Ultra Fine Powder Grinder And Other Type Powder Grinders?

    Ultra fine powder grinder can be differentiated with other types of powder grinders on the basis of working method, grinding material and production capacity.

    Ultra Fine Powder Grinder VS Continuous Feeding Mill

    Continuous-Feeding-Mill

    Working Method

    • Working Methods of Ultra Fine Powder Grinder

    The material is initially fed into the grinding chamber of an ultra fine powder grinder usually through a hopper or feed tank. Inside the grinding chamber, the material is impacted to impact hammer and this impact causes collision, shearing and fiction. As the air pressure rises, the material enters inside the pulverized. The grinding of material into particles is carried out due to compression and shearing forces.

    • Working Methods of Continuous Feeding Mill

    A continuous feeding mill is a type of machine used for grinding and processing materials in a continuous and in an uninterrupted manner. A continuous feeding mill involves the feeding of raw materials into a hopper or container where they are then transported by a conveyor belt or auger system to a grinding chamber. In the grinding chamber the materials are ground and processed to the desired particle size. The grinded material is then discharged from the machine.

    Grinded Materials

    • Grinded Materials By Ultra Fine Powder Grinder

    Granular-Material

    Materials that are commonly ground using an ultra fine powder grinder belong to the groups of minerals, pigments, chemicals, and food ingredients. Some examples of materials are talc, calcium carbonate, spices, starches, barite, herbicides, insecticides, titanium dioxide, iron oxide, and carbon black.

    • Grinded Materials By Continuous Feeding Mill

    grains-and-cereals

    Continuous feeding mills are used to grind a wide range of materials including grains, cereals, spices, herbs, and other food products. They are also used to process a variety of non-food materials, such as chemicals, minerals, and pharmaceuticals.

    Ultra Fine Powder Grinder VS Powder Grinder

    Powder-Grinder

    • Working Methods of Powder Grinder

    Powder Grinder is a type of machine used for grinding and processing herbs, spices and other plant materials. The working method of an herb grinding machine typically involves the feeding of raw materials into a grinding chamber or bowl where they are ground and processed by a set of rotating blades or burrs.

    Grinded Materials

    • Grinded Materials By Powder Grinder

    Herbs-and-Spices

    The materials that can be ground using a herb grinding machine include a wide range of herbs, spices, and other plant materials, such as roots, leaves, flowers, and seeds. Some examples of herbs and spices that are commonly ground using a herb grinding machine include peppercorns, cinnamon, basil, oregano, and thyme.

    Conclusion

    Most of the industries require highly smart grinding mechanism to break down heavy materials into small and fine particles. While selecting the right type grinder many manufacturers get confused in between different types of grinding solution. Allpack provides you variety of solution in this regard and is always available to assist you. If you still find any query, contact our customer service center that is available 24/7 or visit our website http://www.allpackchina.com/.
