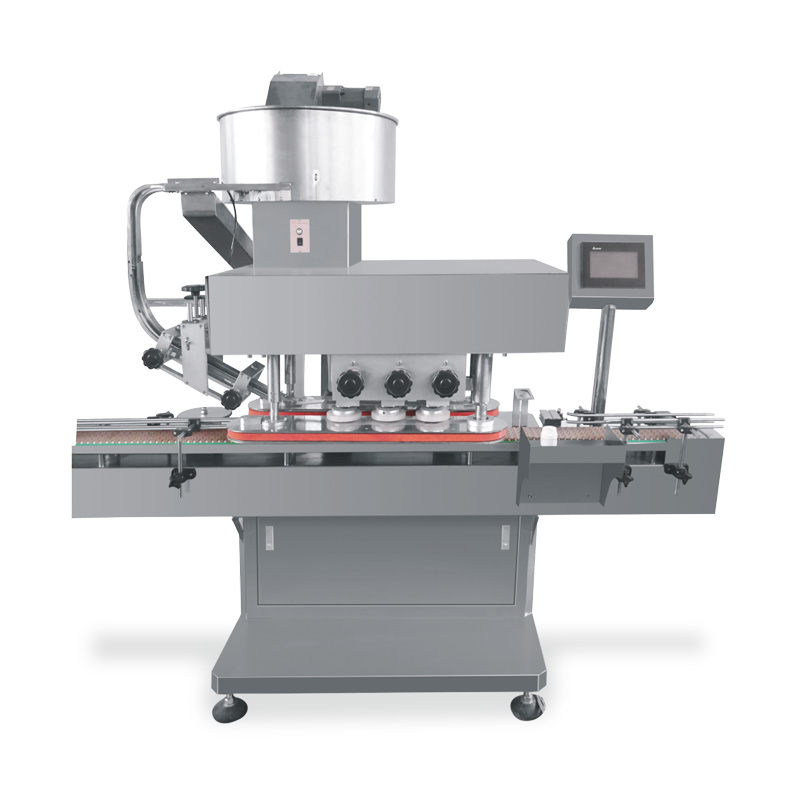

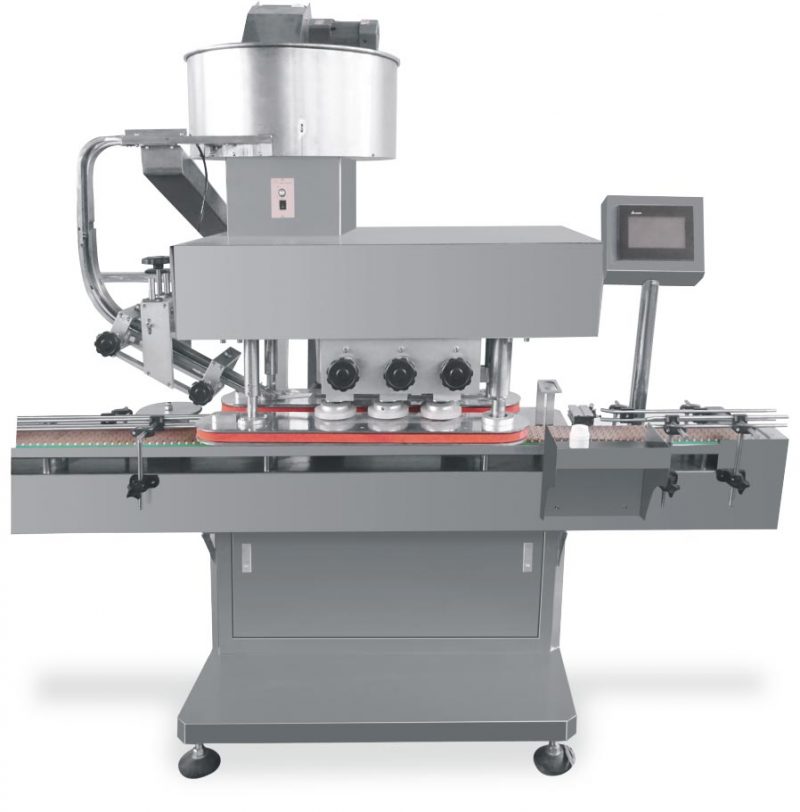

JF-2000-32 Grain Counting Bottling Packaging Linkage Production Line



JF-2000-32 Grain counting bottling packaging linkage production line is made up of JF-2000 bottle unscramble,JF32 electronic counting machine,JF-C120 automatic desiccant inserter(cotton inserter or paper inserter),JF-D903 high speed capping screwing machine,JF-M1 water-cooled induction sealer,JF-T1 high speed round bottle side face labler(coding machine).

  1. Wide applicability,with our original anti-dust technology,it can be used for tablets(including abnormal tablets),capsule gels(including abnormal gels,transparent gels and opaque gels)pearls and most kind of  tabloids.
  2. High-intelligence:intelligent design of each machine with interactive operating multi-language panel Can save 10-20 kinds of different operating parameters and easy to load for different products.Self-diagnose,display errors and make alarms.Well cooperation between each machine and in the whole line.
  3. High efficiency.Take purposed to operate,easy tope rate,to adjust,to clean and to maintain Low working cost,low maintain cost 3 workers will be enough to operate.
  4. Small in size innerpacking room 30 m’ max) and low cost in power.
  5. Control system:adopting PLC and touch screen control.


Model Applicable Capacity Power supply Power Gas consumption Dimension
JF-2000-32 #000-5 capsule ,soft gel capsule,Φ5.5-Φ22 tablets,pills 100 bottle/min 220v/50HZ 8.0KW 1.5m³/min 11500*2500
