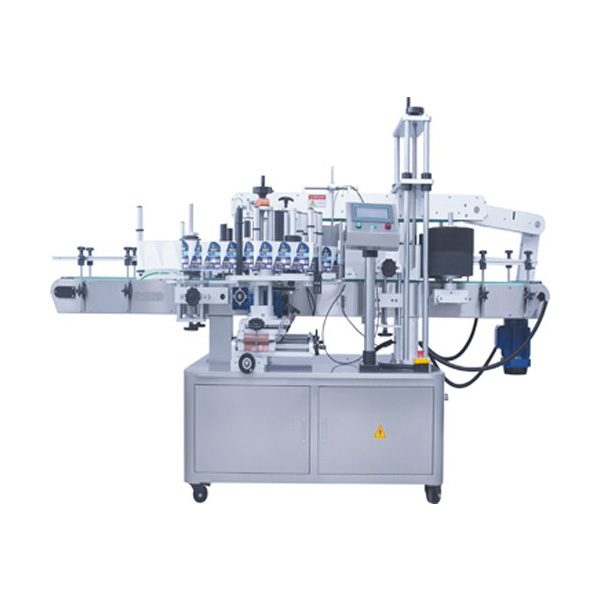

KP-160 Double Side Labeling Machine

Description

Introduction:

For flat bottles, round bottles, square bottles of single and double side labeling, such as shampoo flat bottles,
oil flat bottles, hand sanitizer double side labeling round bottles, two with stickers, double standard to improve
production efficiency, widely used in daily chemical, cosmetics, petrochemical, pharmaceutical and other industries.

Feature:

Wide range of applications, which can meet the entire circumference of round bottle labeling or semi-circle label, bottle label switching between simple and easy to adjust;

Labels coincide high standard with bypass adopt corrective institutions, marked with no easy road, labeling parts of the
x/y/z direction and the inclination of eight three degrees of freedom is adjustable,adjust no dead ends,labels coincide with high ;

Labeling quality, using standard belt cover sexual repression, labeling smooth, wrinkle, improve the quality of packaging;

Flexible, stand-labeling bottles, bottles with automatic function, stand-alone production, can also be connected to production line;

Intelligent control, automatic photoelectric tracking, with no object no labeling, no label auto-correction and auto-detection function labels,
stickers and labels to prevent leakage of waste;

High stability, Delta PLC + touch screen + Japan Keyence Electric label sensor composed
of advanced electronic control systems, support equipment 7 × 24-hour operation;

Adjustment is simple, labeling speed, transmission speed, divided bottle can realize stepless speed, adjust as needed;

Rugged, using three adjustment mechanism, take advantage of the stability triangle, the whole solid and durable. Stainless steel
and high-alloy steel, meet GMP production requirements;

Specification:

(The following technical parameters for the standard model, other special requirements and functions can be tailor-made).

◆ Suitable label length (mm): 20mm ~ 200mm

◆ Applicable Label width (backing paper width / mm): 20mm ~ 160mm

◆ Applicable Dimensions (length × width × height / thickness): Length (transport direction): 20mm ~ 250mm

Width (transport width direction): 30mm ~ 90mm,  Height: 60mm ~ 280mm

◆ Applicable standard roll diameter (mm): φ280mm

◆ Applicable standard roll diameter (mm): φ76mm

◆ Labeling accuracy (mm): ± 1mm

◆ The standard speed (m / min): Stepping: 5 ~ 19m/min , Servo: 5 ~ 40m/min

◆ Labeling speed (pcs / min): Stepping: 30 ~ 160pcs/min,  Servo: 50 ~ 200pcs/min

◆ Conveyor speed (m / min): 16m/min

◆ Weight (kg): about 330kg

◆ Frequency (HZ): 50HZ

◆ Voltage (V): 220V

◆ Power (W): 1100W (traction stepper),  1600W (traction servo)

◆ Device dimensions (mm), (L × W × H): 3000mm × 1450mm × 1600mm
