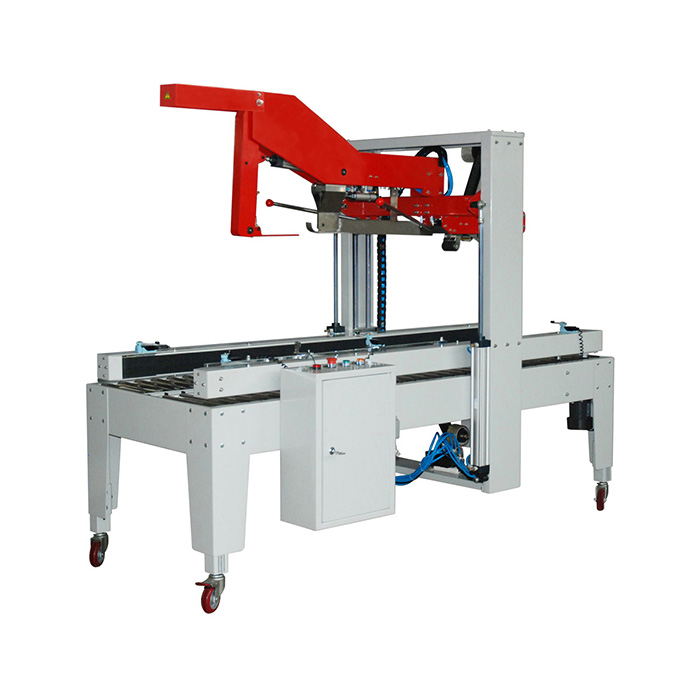

Automatic Carton Sealer / FXJ-5050ZQ


  • The structure is simple and easy to adjust
  • Driven by side belts, upper and bottom tape head can seal the carton at the same timeThe carton front flap, side flap and back flap can be
  • folded automatically, fast and smoothly
  • By adopting mechanical-electricalinteration technology,the machine can adjust the carton width, height and other parameters automatically
  • lt is suitable for a variety of automatic production sites

Product Detail:


Voltage (VIHz) AC 220/50 110/60
Air Compressor (Mpa) 0.4-0.6
speed (m/min) 22
Max.Carton Size (LxWxH)(mm) 600×500×500
Min. Carton Size (LxWxH)(mm) 250×150×180
Adhesive Tape Materials BOPP, PVC adhesive tape, water-free adhesive tape
Height of Table (mm) 660-84
idth of Adhesive Tape (mm) 48,60,76(optional)
External Dimensions (LxWx H)(mm) 2270×1030×(1705-1945)
Net Weight (kg) 280
