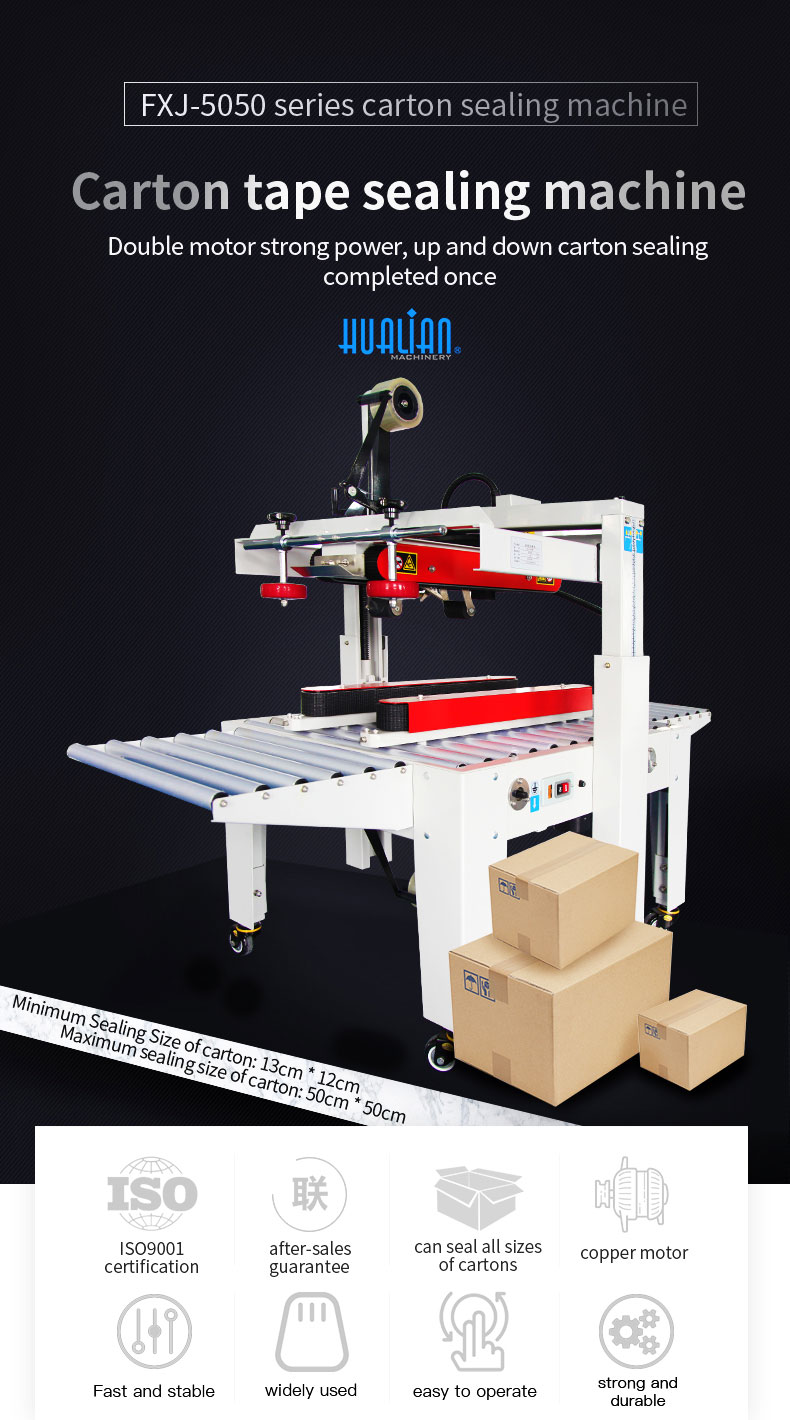

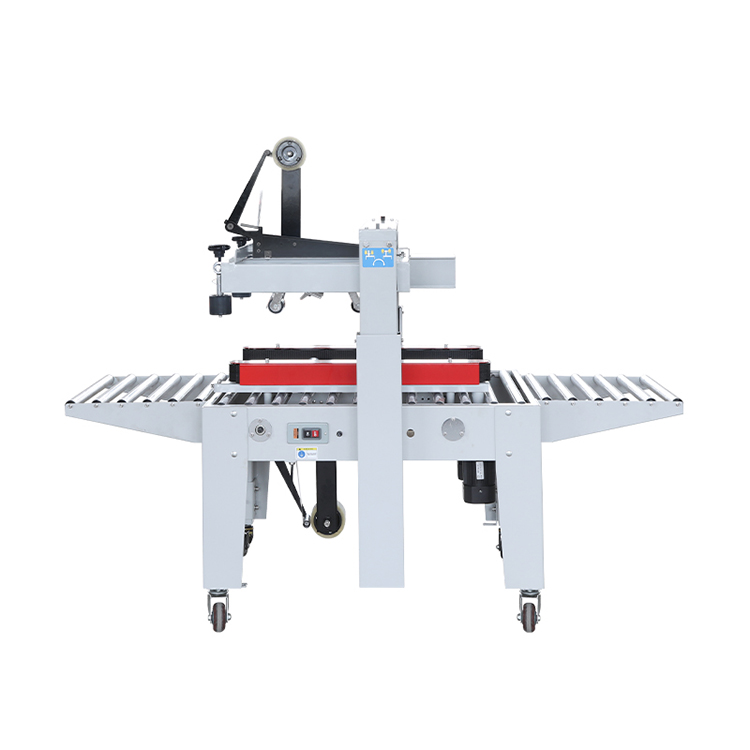

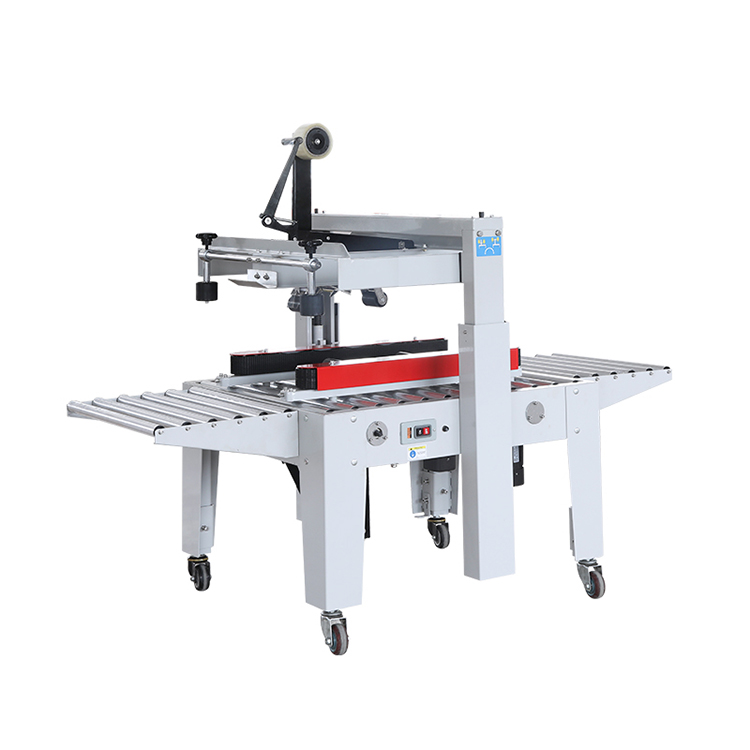

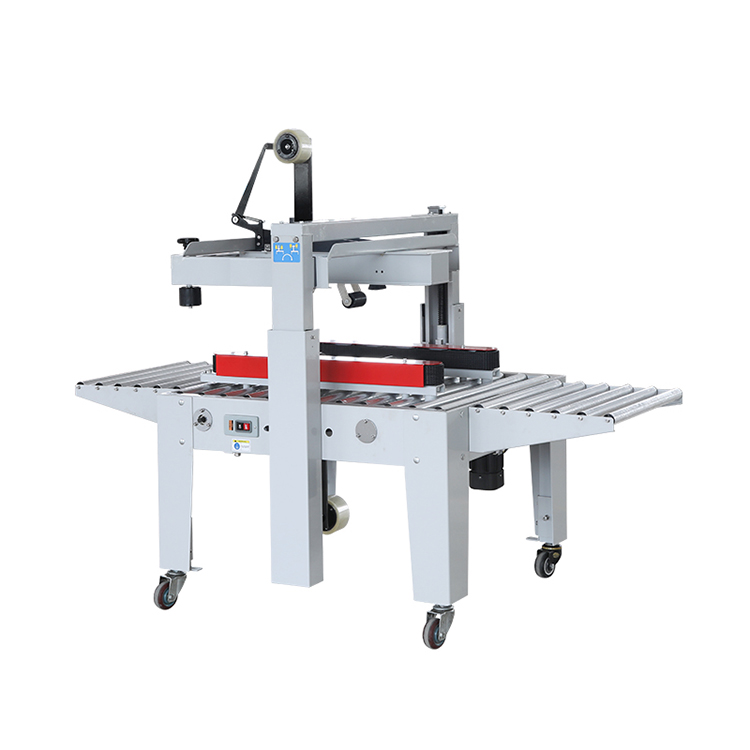

Semi automatic Carton Sealer / FXJ-5050A

Introduction:

  • FX] series is designed to seal carton by applying adhesive tape.
  • cost effective,High speed.
  • Easy size changeovers.
  • For integration into production line or as stand alone machine.
  • lt’s widely used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industry.

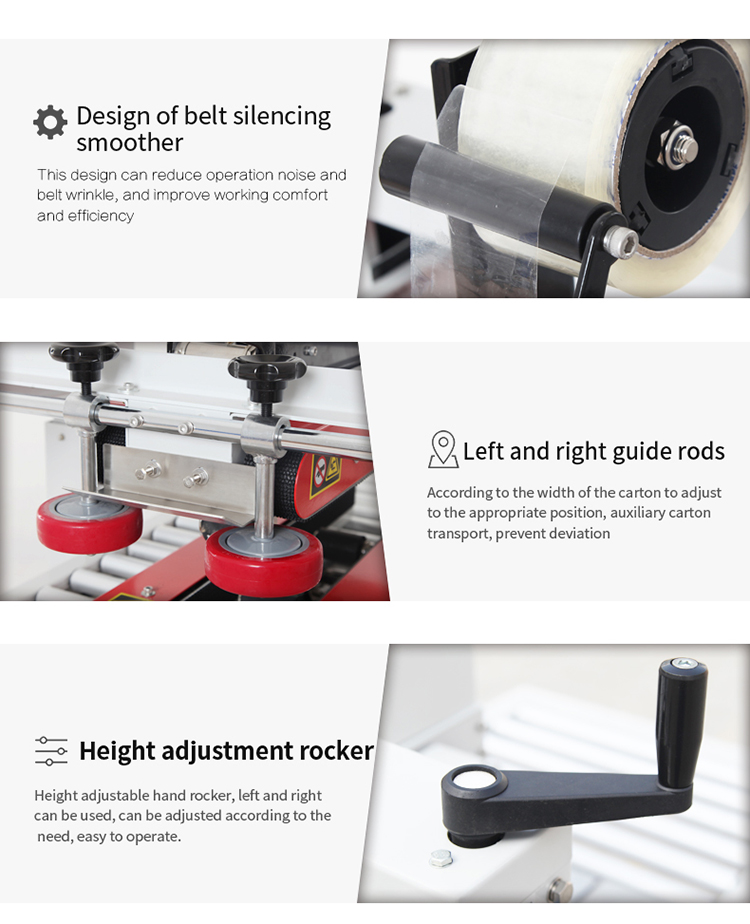

  • Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons.
  • Printed tape can be used to improve enterprise image.

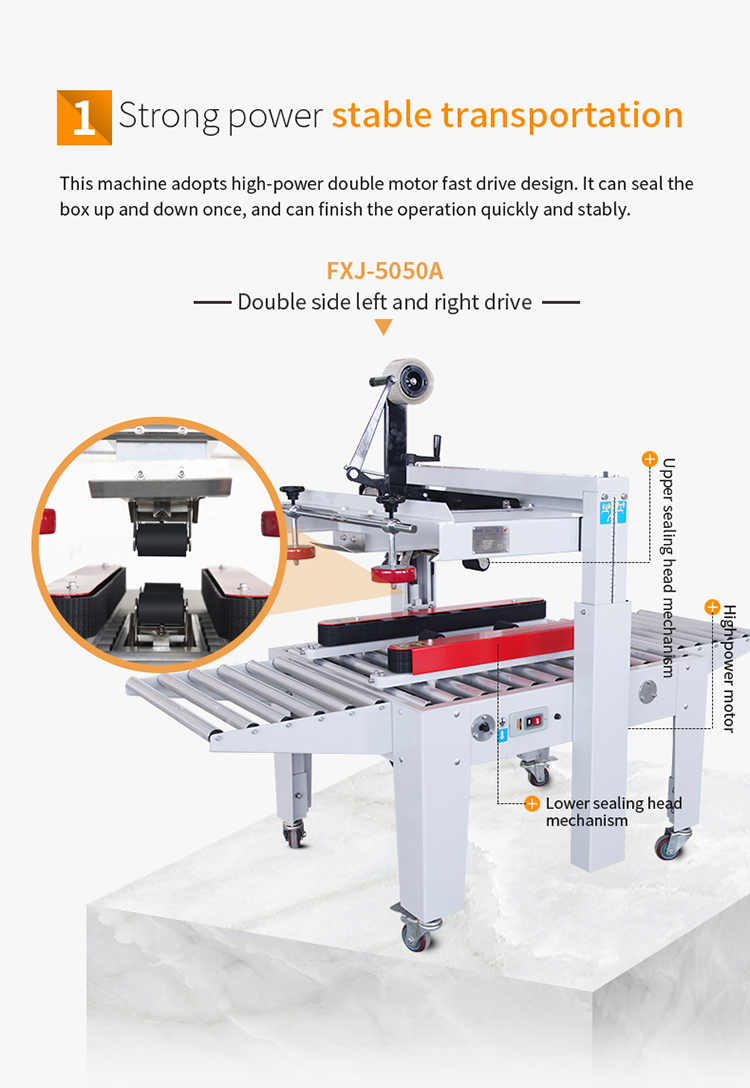

  • FXJ-A series: side drive belts, upper&bottom tape head, ideally suited for narrow cartons.

FXJ-5050A-B-11

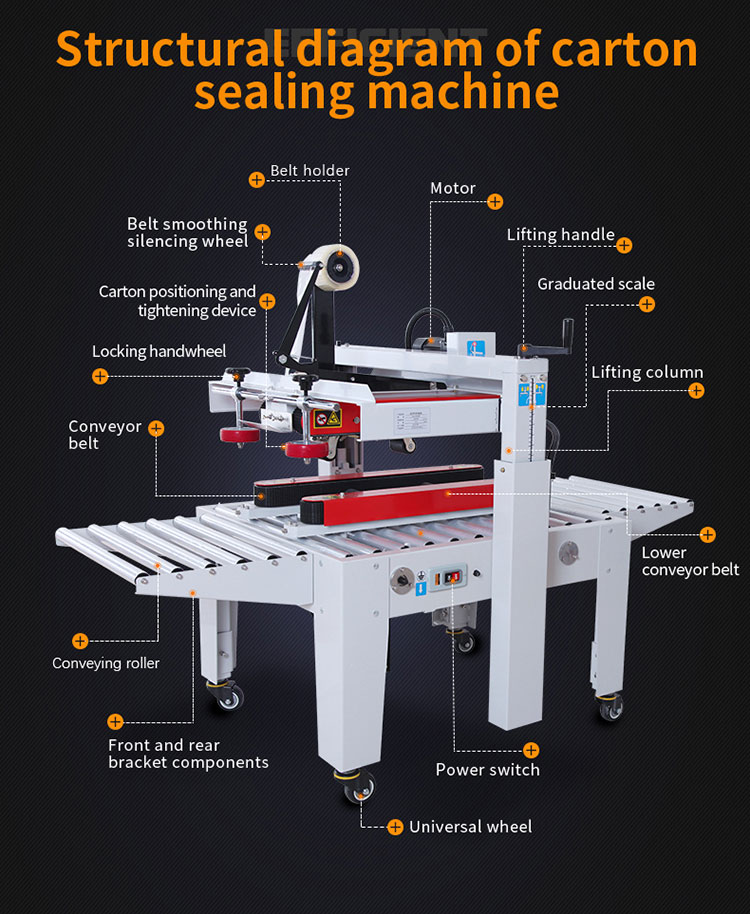

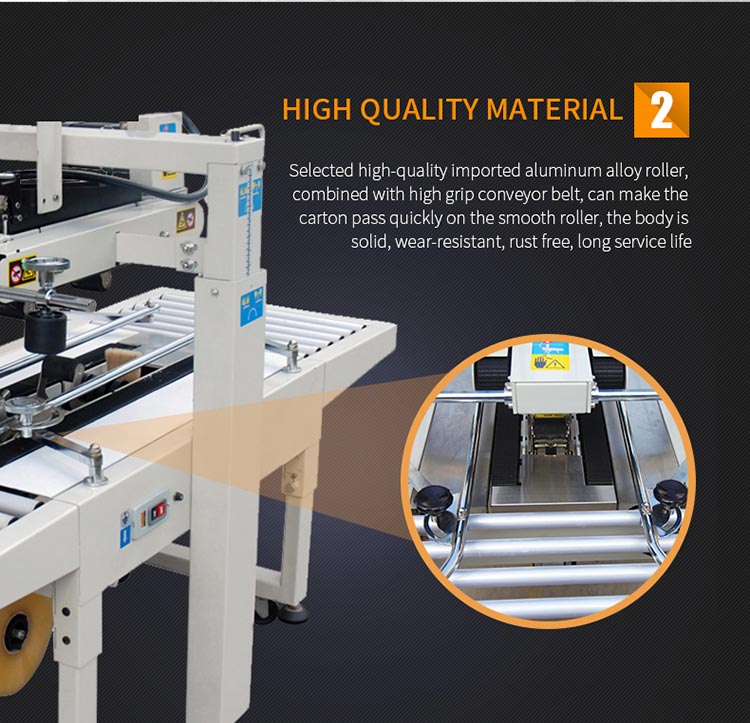

Semi automatic Carton Sealer-6

FXJ-5050A-B-6

FXJ-5050A-B-16

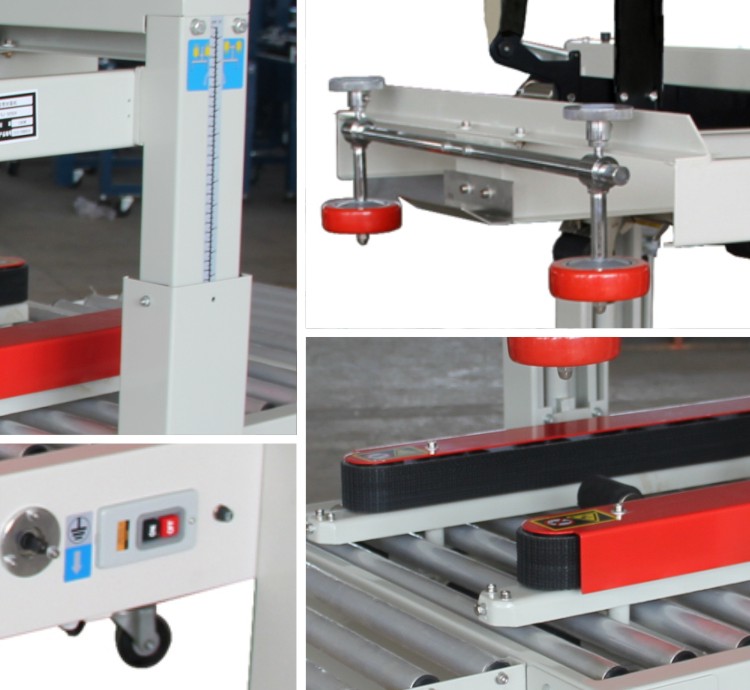

Product Detail:

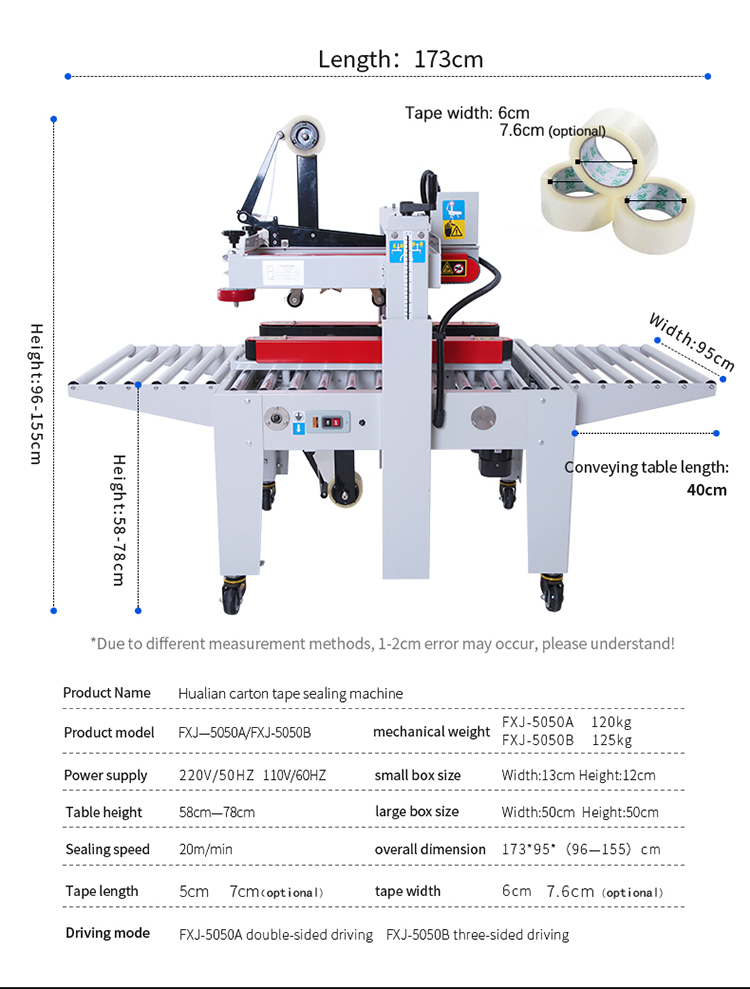

Specification:

MODEL FXJ-5050A
Voltage (V/Hz) AC 220/50 110/60
Power (W) 200
Max.Carton size (WxH)(mm) 500×500
Min.Carton Size (WxH)(mm) 130×120
Speed (m/min) 20 m/min (30 cartons/min)
Adhesive Tape Materials BOPP, PVCadhesive tape, water-free adhesive tape

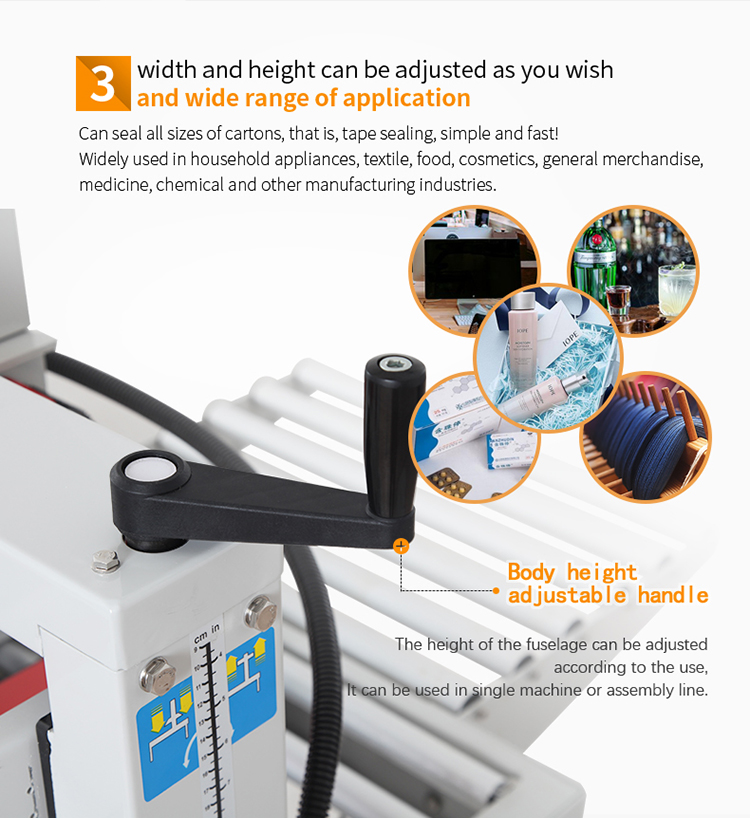

Height of Table (mm) 580-780
Width of Adhesive Tape (mm) 48,60,76 (optional)
External Dimensions (LxWx H)(mm) 1730x950x(960-1550)
Net Weight (kg) 120
