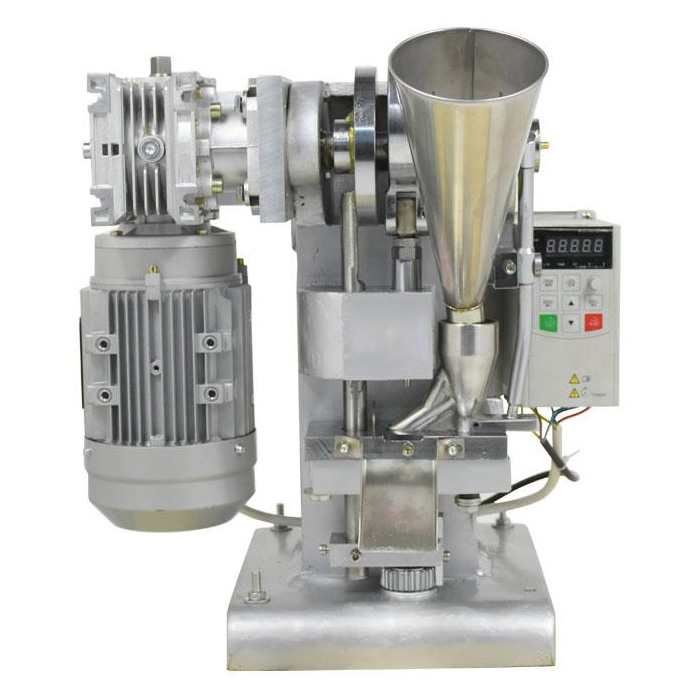

single punch tablet press machine TDP-2



TDP – 2 small desktop tablet press is a small electric tablet press, can be a variety of different sizes of granular, powder materials wafer or all kinds of special-shaped plate, is suitable for pharmaceutical factory, food factory, chemical plants, family clinics, laboratories, schools, scientific research units trial production and small batch production of Chinese and western tablets, sugar tablets, calcium, and other industry is the ideal equipment. This machine is equipped with a punch die, the filling depth of materials, pressing thickness can be adjusted, that is, the weight of products, thickness and hardness can be adjusted, as long as the replacement of different molds can be pressed different products. All controllers and operating parts are properly laid out; Worm gear drive, low noise, high safety factor; The strip speed is adjustable, suitable for high precision.


Tablet pressure (Kn) 15
Tablet diameter (mm) 12
Filling depth (mm) 12
Tablet thickness (mm) 6
Production Capacity (PCS /h) 4000
Motor power (Kw) 0.75
Overall size (mm) 700*370*800
Machine weight (Kg) 45
Packing weight (kg) 60
