HVB-1020F Automatic Vacuum Packaging Machine

Add to Wishlist
Add to Wishlist


1.lt adopts continuous packaging with higher efficiency.

2.lt could be connected with the automatic conveying system and make up automatic flow work.

3.The height of the conveyor could be adjusted to meet products with liquid so as to avoid spoil of theliquid.lt adopts PLC automatic control system, independent screen convenience operation.

4.The machine hull is in stainless steel which is more durable and easier for clean.

5.Water-cooling protective function to the heating bars improve the service life of the heating bars.


Product Detail:


Model HVB-1020F
Voltage (V/Hz) AC 380/50 220/60
Motor power (W) 550+370
Sealing Power (W) 1500
Ultimate Vacuum Pressure (Kpa) 1
cooling Type water-cooling

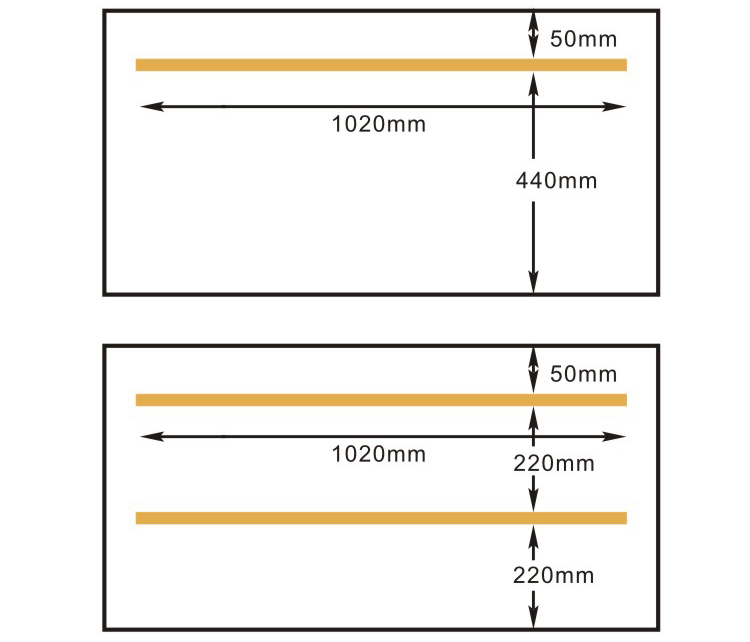

sealing Length (mm) 1020
sealing Width (mm) 10
Capacity(Times/min) 4-8
Chamber Dimension (LxWxH)(mm) 1080×500×100
xternal Dimensions (LxWxH)(mm) 1580×1770×1100
Applied bag length(mm) ≤450
Net Weight (Kg) Approx.610
