Introduction:
1.The products after packing can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for longer time.
2.The machine can vacuum pack several products at the same time, which isefficient in continuous production in midde or small scale.
3.lt adopts double-balanced turnover device of the vacuum lid for smooth turnover of the lid.
4.lt adopts relay control, while PCB control is as optional.
5.lt could be equipped with automatic turnover of the lid for easier turnover of the lid.
6.The vacuum chamber could be added with PP insert plate for products with different heights to improve the vacuum efficiency.
7.lt could be equipped with dust filter for the products similar to powder.
8.The material of the machine hull and the vacuum pump could be customized.
9.The vacuum chamber is designed to be flat without blind angle, which is convenient to wash and clean.

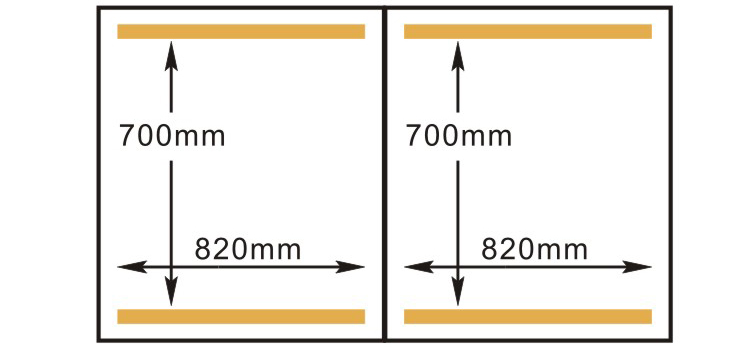

Dimension：
Product Detail：
Specification:
| Model | HvC-720S/2B |
| Voltage (V/Hz) | AC 380/50 220/50 110/60 |
| Motor power (W) | 2200 |
| Sealing Power (W) | 1500 |
| Ultimate Vacuum Pressure (Kpa) | 1 |
| Sealing Width (mm) | 10 or 2×3 |
| Chamber Dimension (LxWxH)(mm) | 800×630×175 |
| Vacuum Pump capacity (m3/h) | 63 |
| Material for Vacuum Chamber | sUS304 |
| External Dimensions (LxWxH)(mm) | 1670×850×975 |
| Net Weight(Kg) | Approx.375 |
