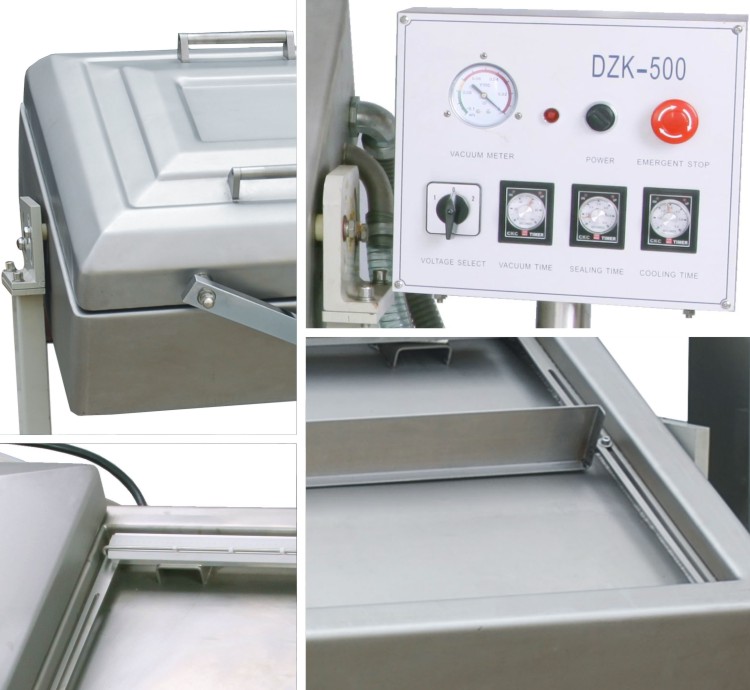

DZK-500/S Double Chamber Vacuum Machine


1.The products after packing can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for long storage.

2.The vacuum chamber is inclined designed for products which are easy to pour.

3.With height adjustable support plate, for packing different bags sizes.

4.lt is suitable for the products like liquid, coffee, tea, etc. which requires vertical or square package.

5.lt could be equipped with mould to square the vacuum effect for easier stocking.


Product Detail:


Model DZK-500/S
Voltage (VIHz) AC 380/50 220/50 110/60
Motor power (W) 1800
Sealing Power (W) 600
Ultimate Vacuum Pressure (Kpa) 1
Sealing Width (mm) 10
Chamber Dimension (LxW*H)(mm) 550×500×180
Vacuum Pump capacity (m3/h) 2×20
Material for Vacuum Chamber suS304
External Dimensions (LxWxtH)(mm) 1690×710×1055
Net Weight (Kg) Approx.220
