HVC-720/2SA Double Chamber Vacuum Machine

Introduction:

1.The products after packing can be prevented from oxidation,going mould, insects or getting damp, thus can be kept fresh for longer time.

2.The machine can vacuum pack several products at the same time, which is efficient in continuous production in middle or small scale.

3.lt adopts double-balanced turnover device of the vacuum lid for smooth turnover of the lid.

4.lt adopts relay control, while PCB control is as optional.

5.lt could be equipped with automatic turnover of the lid for easier turnover of the lid.

6.The vacuum chamber could be added with PP insert plate for products with different heights to improve the vacuum efficiency.

7.lt could be equipped with dust filter for the products similar to powder.

8.The material of the machine hull and the vacuum pump could be customized.

9.The depth of vacuum chamber could be customized.

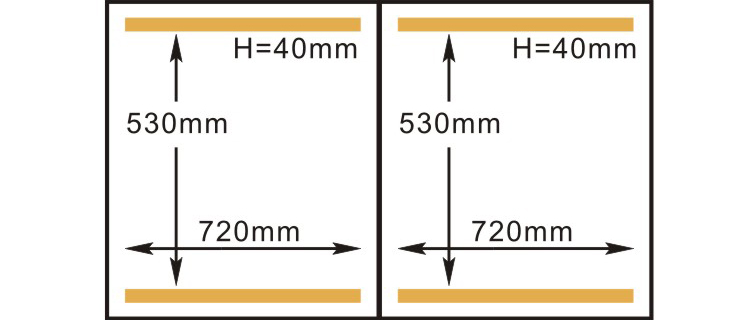

Dimension:


Product Detail:


Specification:

Model Hvc-720S/2A
Voltage (VIHz) AC 380/50 220/50 110/60
Motor power (W) 2200
Sealing Power (W) 1500
Ultimate Vacuum Pressure (Kpa) 1
Sealing Width (mm) 10 or 2×3
Chamber Dimension (LxWxH) (mm) 800×630×195
Vacuum Pump capacity (m3/h) 63
Material for Vacuum Chamber suS304
External Dimensions (LxWxH) (mm) 1670×850×1000
Net Weight (Kg) Approx.375
