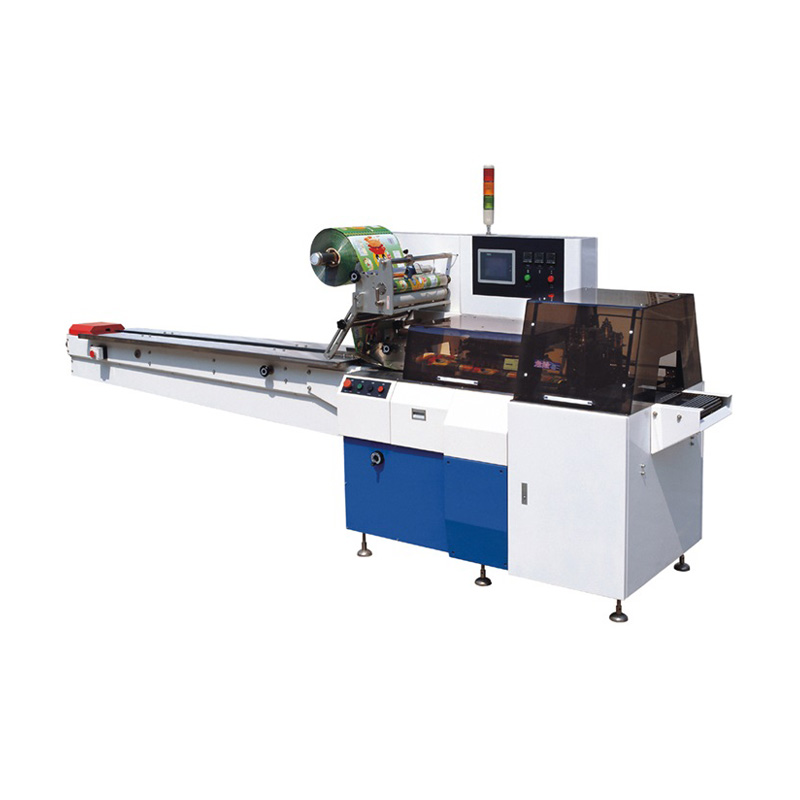

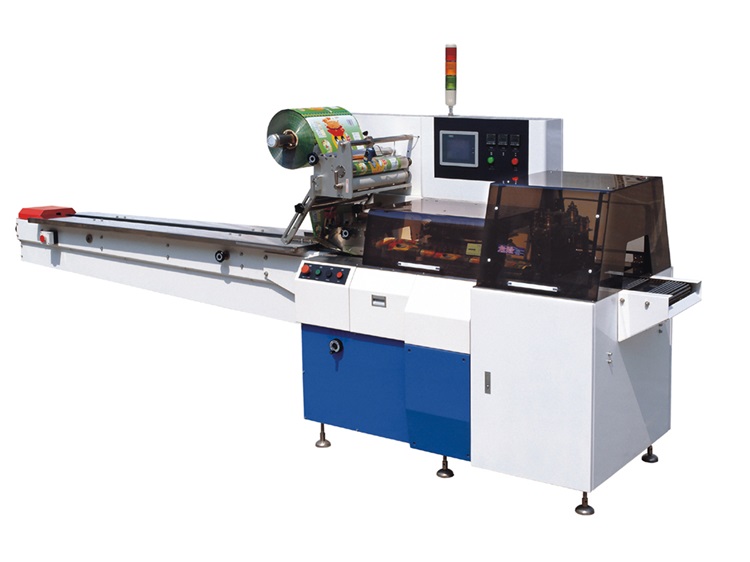

Automatic Horizontal Packaging Machine / DXDZ-350W/450W/630W


lt can be suitable for a variety of specifications for food and non-food packaging of continuous type packing machine.

lt not only can be used without trademark packaging, packaging materials and to be able to use a trademark in advance design of drum materials for high speed packing.

In packaging production du to the positioning color code printed on the packaging material between error and stretching of packaging materials and mechanical transmison,the influence of such factors as scheduled on packaging materials ofsealing and cutin parts may deviate from the correct position, and produce error.

Product Detail:


Voltage (VIHz) AC 220/50 110/60 AC 220/50 220/60
Power (Kw) 2.4 3.2
Film Width (mm) Max.350 Max.450 Max.630
Length of Bag (mm) 110-330 20-450 120-600
width of Bag (mm) 30-130 80-200 80-250
Height of Product (mm) 10-60 10-80 10-80
Film Roll Diameter (mm) Max.320
Packaging Speed (bags/min) 30-120 20-75 20-50
External Dimensions (LxW*H)(mm) 3670×810×1450 4380×870×1500 4380×970×1500
Net Weight (kg) 800 960
