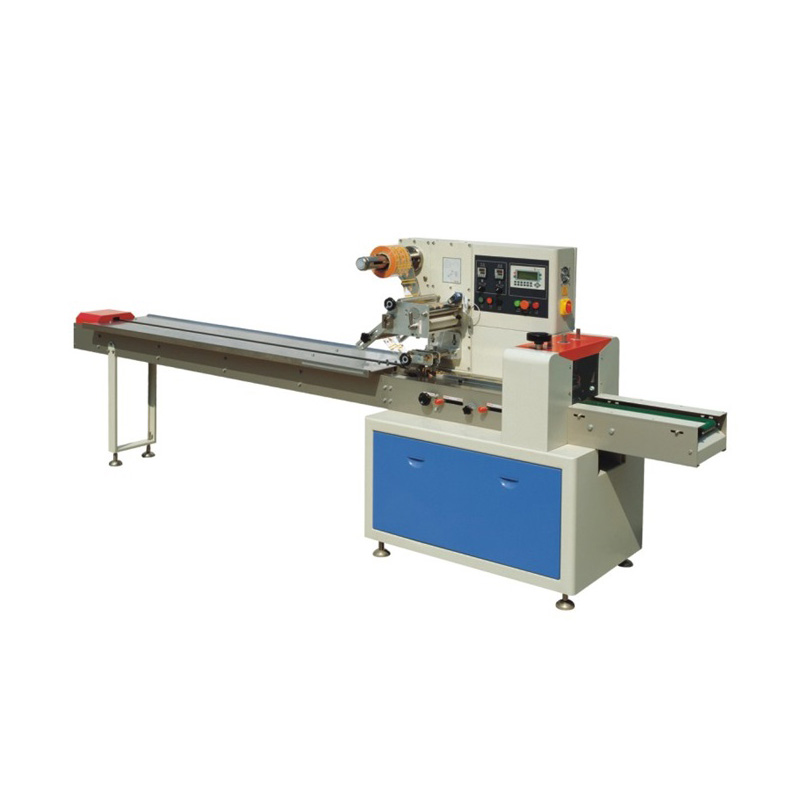

Automatic Horizontal Packaging Machine/ DXDZ-250B/D/S


lt is suitable for packaging all kinds of solid materials with regular shapes,such as biscuits, breads and sweets for food, daily necessities, and industrial parts. Forthedisperse material the packaged object needs to be placed in the box first, so that it can form a regular whole package.

Touch mode man-machine interface control, parameter setting convenient, high speed and high efficiency.

Using photoelectric tracking technology, digital input, sealing and cutting position is accurate.

Fault self-diagnosis and alarm display.

Adjustable temperature, intelligent control, can adapt to a variety of packaging materials.

Double frequency control, the bag length is set and cut, no need to adjust the air.

Product Detail:


Voltage (VIHz) AC 220/50 220/60
Power (w) 2400
Film Width (mm) Max.25
Length of Bag (mm) 65-190or120-280 45-90
Width of Bag (mm) 30-110 45-95
Height of Product(mm) Max.40 Max.55 Max.35
Film Roll Diameter (mm) Max.32
ackaging speed (bags/min) 40-230 60-330
External Dimensions (LxWxH)(mm) 377O×670×1450
Net Weight (kg) 600
