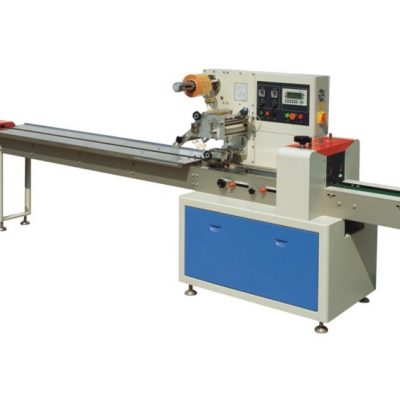

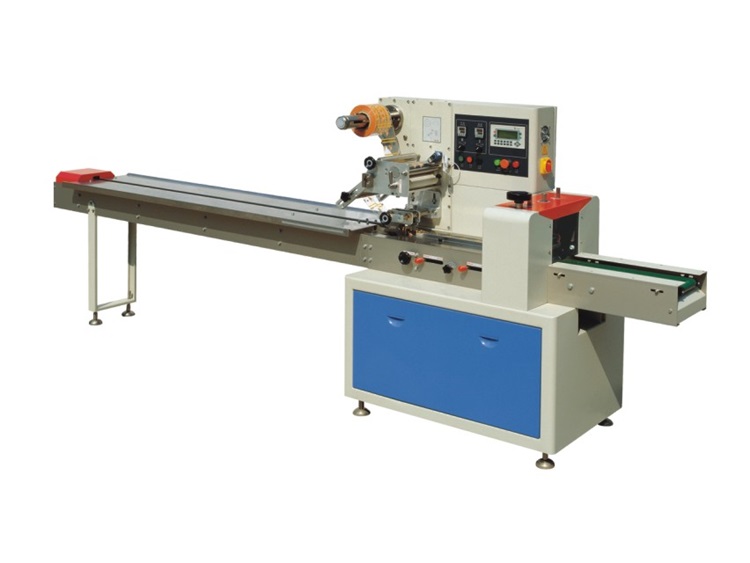

Automatic Horizontal Packaging Machine / DXDZ-320B/D

Description

Introduction:

lt is suitable for packaging l kinds of solid materials with regular shapes,such as biscuits,breads and sweets for food, daily necessities, and industrial parts. For the dispersed material, the packaged object needs to be placed in the box first, so that it can form a regular whole package.

Touch mode man-machine interface control, parameter setting convenient, high speed and high efficiency.

Using photoelectric tracking technology, digital input, sealing and cutting position is accurate.

Fault self-diagnosis and alarm display.

Adjustable temperature, intelligent control, can adapt to a variety of packaging materials.

Double frequency control, the bag length is set and cut, no need to adjust the air.

Product Detail:

Specification:

MODEL DXDZ-320B DXDZ-320D
Voltage (VIHz) AC 220/50220/6o
Power (Kw) 2600
Film Width (mm) Max.320
Length of Bag (mm) 65-190or120-280 90-220or150-330
width of Bag (mm) 50-160
Height of Product (mm) Max.40 Max.55
Film Roll Diameter (mm) Max.320
Packaging speed (bags/min) 40-230
External Dimensions (LxWxH) (mm) 3700×720×1450
Net Weight (kg) 630
Remarks Fill gas equipment (optional)
