Introduction:

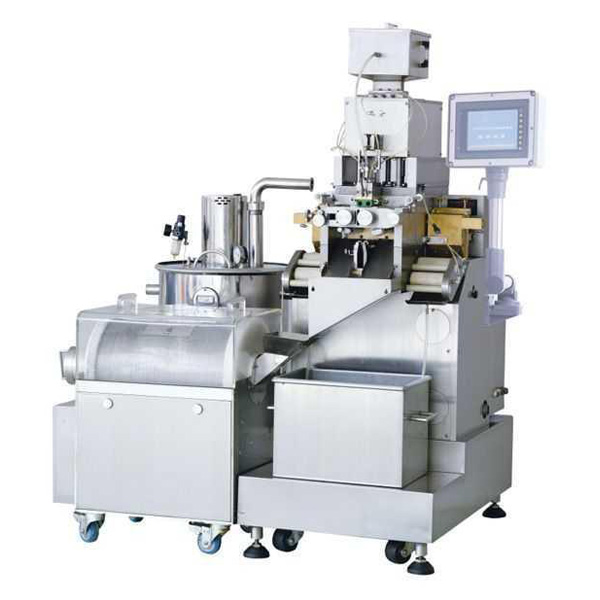

ZTHT-125 Atuto Production line of Soft Capsule ,Output: 2000 pieces / hour. 500mg of each piece.
The 125 type softgel encapsulation machine is easy to operate.Its control system is PLC + touch screen, this machine absorbs advance technology from China and aborad,we produce this machine according to GMP quality system and ISO system. meanwhile the processing of soft capsule and production characteristics are performed as GMP and related guidelines.
Feature:
- Cold system with integrated cooling fan .
- Low energy consumption ,convenient installation the temperature accuracy.
Machine model suitable for small laboratories . - Low noise ,high accuracy (loading error is less than +/-2%), to solve the problem with the waste of raw materials , raw materials can do more times the same experiment.
- This machine adopt 50Hz frequency control ,roll-mode speed 0-2.5 RMP. 2 Plunger feed, single plunge feed rate 0-1.5ml.
Specification:
| Model Name | ZTHT-125 |
| Die roll size | 103mm(Dia)X 125mm(Length) |
| Speed | 0-4 RPM (Frequency control) |
| Piston number | 8 Ea |
| Loading accuracy | ≤±0.5% |
| Feeding amount single plunger | 0-2ml |
| Electric Spec | 220V/380V |
| Required power | 5 Kw |
| Dimension | 1,280mm X 615mm X 1,600mm |
| Weight | 350 Kg |
| Control mode | PLC+Touch Screen |
| Output | 30000grain/h |
