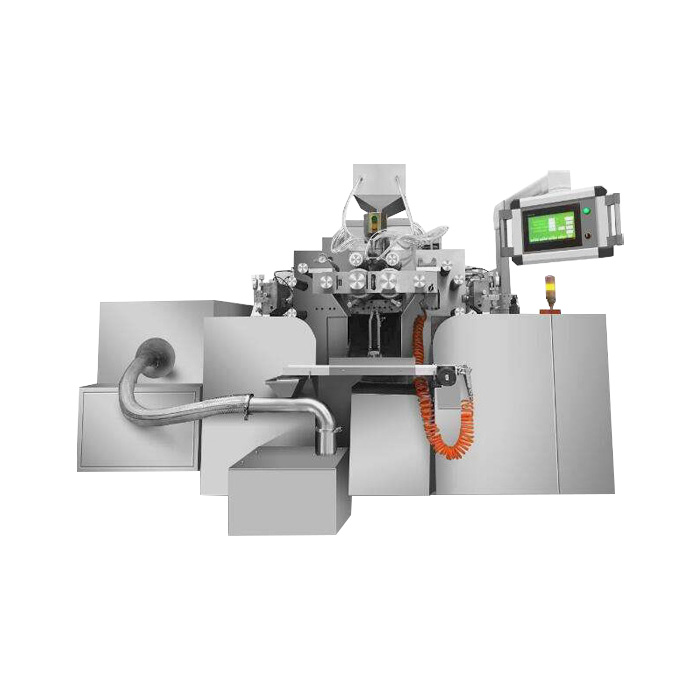

ZTHT-200 Softgel Encapsulation Machine



ZTHT-200 Softgel Encapsulation Machine can produce different cosmetic capsule,the output of this machine is 80000 pieces / hour, 500mg of each piece.Its opreating system is fullly automatic with PLC + touch screen,all of the electrical control components import from German Siemens company.The production of this machine is fast,accurate and stable,this system has a self-checking function.

  1. Simple structure in linear type ,easy in installation and maintation.
  2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
  3. High pressure double crank to control the die opening and closing.
  4. Running in a high automatization and intellectualization,no pollution
  5. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .


Model Name ZTHT-200
Die roll size 150mm(Dia)X 200mm(Length)
Speed 0-4 RPM (Frequency control)
Piston number 20 Ea
Loading accuracy ≤±0.5%
Feeding amount single plunger 0-2ml
Electric Spec 220V/380V
Required power 15 Kw
Dimension 2,180mm X 915mm X 1,982mm
Weight 1000 Kg
Material SUS 304 for Contact area
Output 70000grain/h
