Description

Introduction:

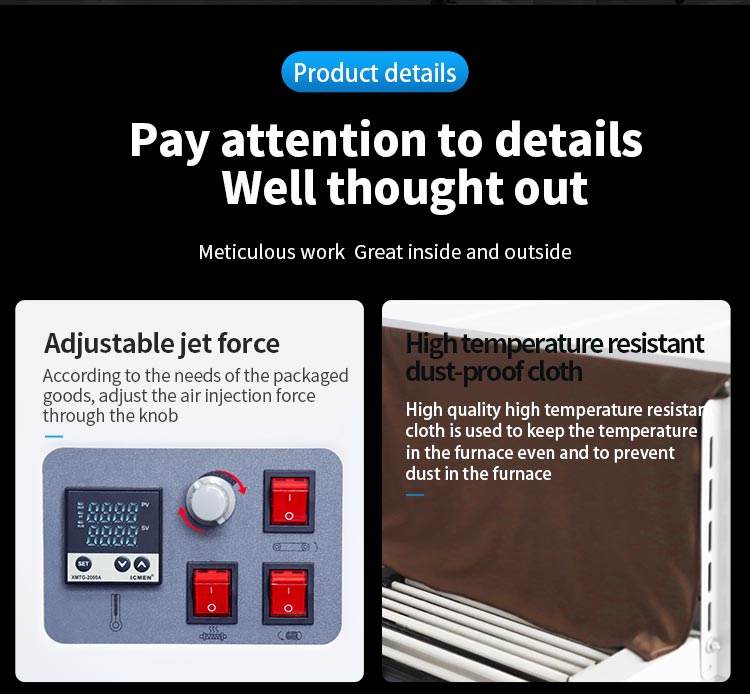

BS-A seres shrink tunnel adopts hot-wind & down-cyclone structure, intelligence temperature control, and AC variable speed regulation. There are two optional conveyors, including Teflon belt type and roller type.

Features:
Both the height of the tunnel and shutters on the two sides are adjustable.
Shrink wrapping machine BS-4535LA&BS-6535LA are designed with a lengthened double hot wind tunnel for a higher and better-shrinking effect

Application:
BS-A series shrink tunnels are applied to heat shrinkable film such as PVC, POF, PP etc.

Product Detail:

BS-4535LA-11

BS-4535LA-11

Shrink Tunnel-215


Specification:

MODEL BS-4535LA
Voltage(VIHz) 380/50(3PH)220/60(3PH)
Power(kw) 9.6
Loading(kg) 30
speed(m/min) 0~10
Tunnel Size (LxW*H)(mm) 1200×450×(50-350)
External Dimensions(LxW*H)(mm) 1600×650×1200
Net Weight(kg) 120
