Shrink Tunnel BS-4525A
Shrink Tunnel-2

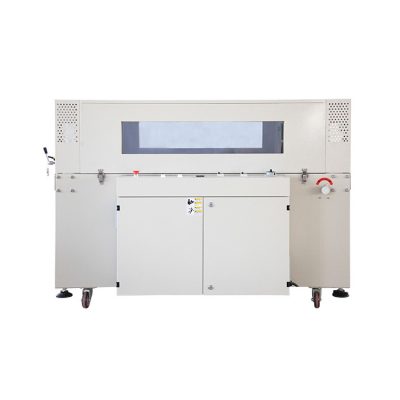

BS-A series shrink tunnel

Description

Introduction:

BS-A series shrink tunnel adopts hot wind &. down-cyclone structure, intelligence temperature control, and AC variable speed regulation. There are two optional conveyors, including Teflon belt type and roller type.

Features:

Both the height of tunnel and shutters on the two sides are adjustable.

Shrinkwrapping machine BS-3020A &BS-4525A adopts single hot wind tunnel,

Shrinkwrapping machine BS-4535LA&.BS-6635LA is designed with a lengthened double hot wind tunnel for a higher and better shrinking effect.

Application:
BS-A series shrink tunnel are applied to heat shrinkable film such as PVC, POF, PP etc.

Product Detail:

Specification:

MODEL BS-6535LA
Voltage(V/Hz) 380/50(3PH) 220/60(3PH)
Power(kw) 9.6
Loading(kg) 30
Speed(m/min) 0~10
Tunnel Size (LxW*H)(mm) 1200×650×(50-350)
External Dimensions(LxWxH)(mm) 1600×850×1200
Net Weight(kg) 150
