Introduction:
1.lt adopts continuous packaging with higher efficiency.
2.lt could be connected with the automatic conveying system and make up automatic flow work.
3.The height of the conveyor could be adjusted to meet products with liquid so as to avoid spoil of the liquid.lt adopts PLC automatic control system, independent screen convenience operation.
4.The machine hull is in stainless steel which is more durable and easier for clean.
5.Water-cooling protective function to the heating bars improve the service life of the heating bars.

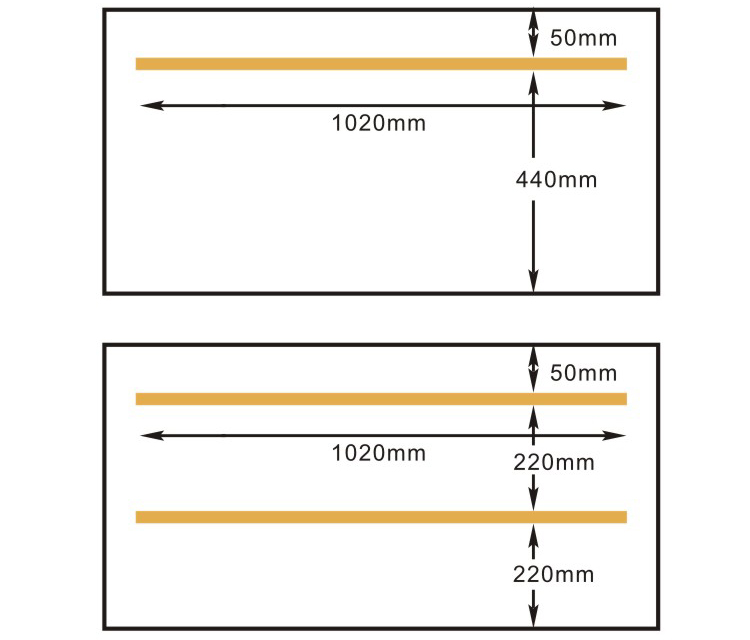

Dimension：
Product Detail：
Specification:
| Model | HVB-1020F/2 |
| Voltage (V/Hz) | AC 380/50 220/60 |
| Motor power (W) | 550+370 |
| Sealing Power (W) | 3000 |
| Ultimate Vacuum Pressure (Kpa) | 1月1日 |
| cooling Type | water-cooling |
| Sealing Length (mm) | 1020 |
| Sealing Width (mm) | 10 |
| Capacity(Times/min) | 4月8日 |
| Chamber Dimension (LxWxH)(mm) | 1080×500×80 |
| External Dimensions (LxWxH) (mm) | 1580×1770×1100 |
| Applied bag length(mm) | ≤190 |
| Net Weight(Kg) | Approx.610 |
