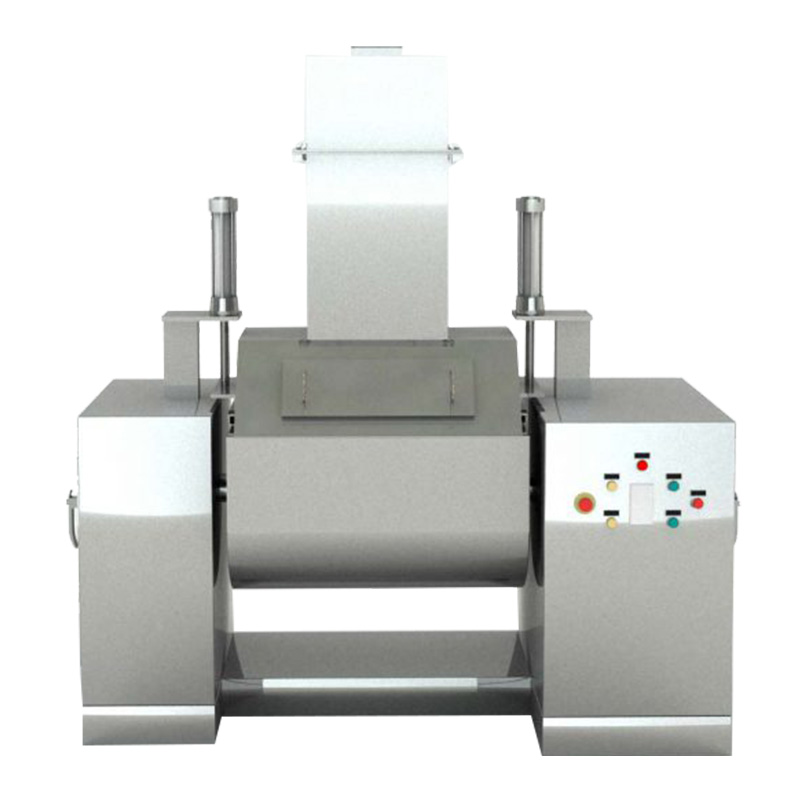

CH Series Horizontal Tanker Typed Mixer

Category:

Introduction:

As a whole stainless steel horizontal tank type mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.

S type agitating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly, operate with electrical control, it can set mixing time to make automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and reaching the high homegeneous mixing.

Feature:

New machine design, compact structure, beautiful appearance, degree of homogeneity of 99%, volume loading coefficient of 0.8. Rotary high low, smooth operation, reliable performance, easy to operate. Barrel outer wall of the body are mirror polished, no dead comer, easy to discharge, easy to clean, no cross-contamination to meet GMP requirements.

Specification:

Model Type of
paddle
Barrel
volume
Max loading
volume
Max loading
weigh
Speed of
agitating paddle
Turning
angle
Stir
Motor
Discharging
motor
CH-30 S Type single paddle 20L 20L 20kg 24r/min ﹤105° 0.75kw 0.12kw
CH-50 S Type single paddle 30L 30L 30kg 24r/min ﹤105° 1.5kw 0.18kw
CH-100 S Type single paddle 60L 60L 60kg 24r/min ﹤105° 2.2kw 0.55kw
CH-150 S Type single paddle 90L 90L 90kg 24r/min ﹤105° 3kw 0.75kw
CH-200 S Type single paddle 140L 140L 140kg 24r/min ﹤105° 4kw 0.75kw
CH-300 S Type single paddle 180L 180L 180kg 24r/min ﹤105° 5.5kw 1.1kw
CH-400 S Type single paddle 250L 250L 250kg 24r/min ﹤105° 7.5kw 1.5kw
CH-500 S Type single paddle 300L 300L 300kg 24r/min ﹤105° 7.5kw 1.5kw
CH-600 S Type single paddle 380L 380L 380kg 24r/min ﹤105° 11kw 2.2kw
