Introduction:
- The structure is simple and easy to adjust
- Driven by side belts, upper and bottom tape head can seal the carton at the same timeThe carton front flap, side flap and back flap can be
- folded automatically, fast and smoothly
- By adopting mechanical-electricalinteration technology,the machine can adjust the carton width, height and other parameters automatically
- lt is suitable for a variety of automatic production sites

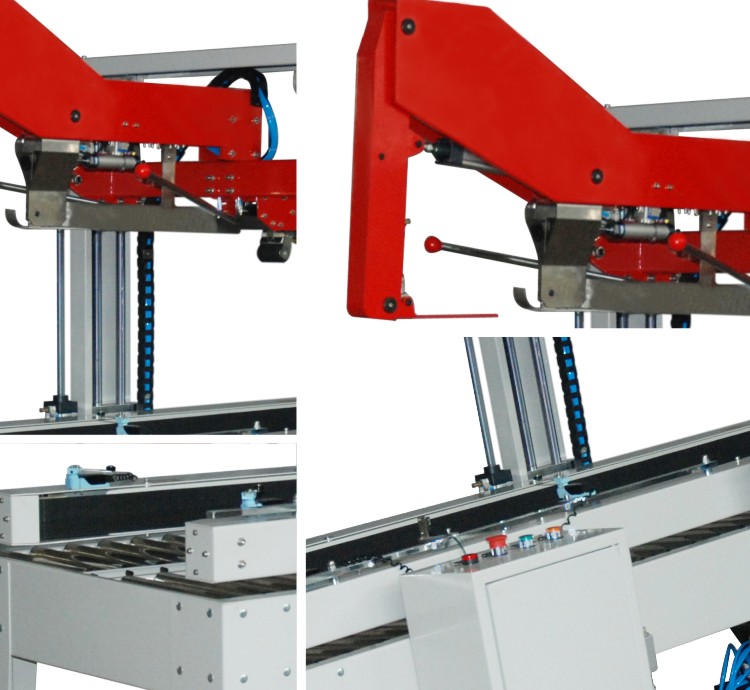

Product Detail:
Specification:
| MODEL | FXJ-5050ZQ |
| Voltage (VIHz) | AC 220/50 110/60 |
| Air Compressor (Mpa) | 0.4-0.6 |
| speed (m/min) | 22 |
| Max.Carton Size (LxWxH)(mm) | 600×500×500 |
| Min. Carton Size (LxWxH)(mm) | 250×150×180 |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 660-84 |
| idth of Adhesive Tape (mm) | 48,60,76(optional) |
| External Dimensions (LxWx H)(mm) | 2270×1030×(1705-1945) |
| Net Weight (kg) | 280 |
