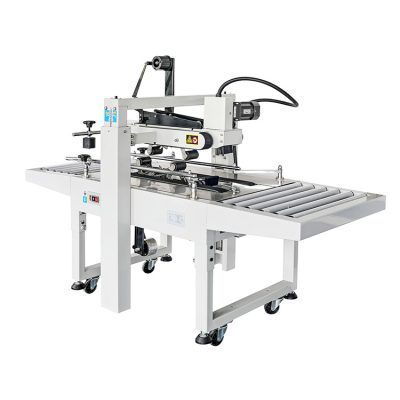

Semi automatic Carton Sealer / FXJ-6050

Introduction:

1.FXJ] series is designed to seal cartons by applying adhesive tape.

2.Cost effective, High speed

3.Easy size changeovers

4.For integration into production line or as stand-alone machine

5.lt’s widely used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industry.

6.Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons

7.Printed tape can be used to improve enterprise image

8.Model R -6050.:top and bottom drive belts,used in circumstances where cartons sie is not changed frequently especially ideal for sealing uniform and high cartons

Product Detail:

6050yingwenban-1

6050yingwenban-4

Semi automatic Carton Sealer-6

6050yingwenban-11

6050yingwenban-8

Semi automatic Carton Sealer-6

Semi automatic Carton Sealer-1

Specification:

MODEL FXJ-6050
Voltage (VIHz) AC 220/50 110/60
Power (W) 200
Max. Carton Size (WxH)(mm) 500×600
Min. Carton Size (WxH)(mm) 180×130
speed (m/min) 20 m/min (30 cartons/min)
Adhesive Tape Materials BOPP,PVCadhesive tape, water-free adhesive tape
Height of Table (mm) 630-780
Width of Adhesive Tape (mm) 48,60,76 (optional)
External Dimensions (LxWx H)(mm) 1755×800×(960-1605)
Net Weight(kg) 150
