Automatic Carton Sealer / FXJ-5050Q

Description

Introduction:

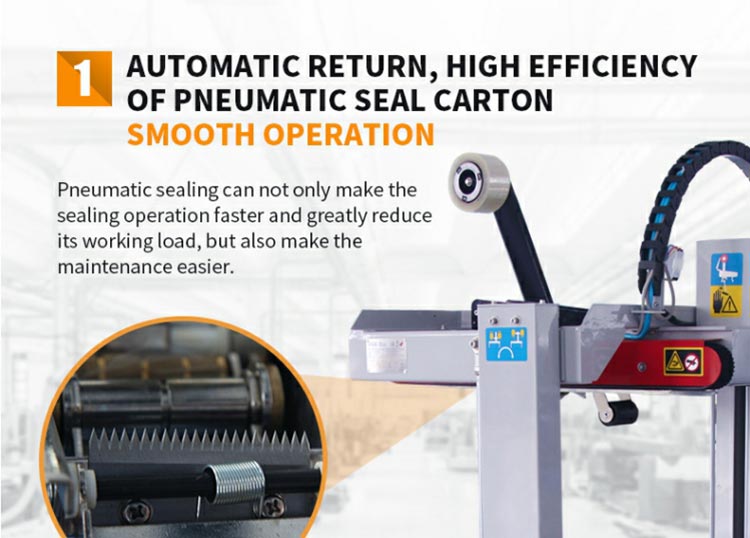

  • Top and bottom drive bels, pneumatic controls for upper & bottom tape head, used in circumstances where carton size is changed frequently at lower speed or where carton size is not changed frequently at highest speed medium.
  • Automatic adjustments to obtain required widths and heights.

Product Detail:

Specification:

MODEL FXJ-5050Q
Voltage (VIHz) AC 220/50 110/60
Air Compressor (Mpa) 0.5-0.6
Speed (m/min) 24 m/min (35 cartons/min)
Max.Carton Size (WxH)(mm) 500×500
Min.Carton Size (W*H)(mm) 200×120
Adhesive Tape Materials BOPP, PVC adhesive tape, water-free adhesive tape
Height of Table (mm) 580-780
Width of Adhesive Tape (mm) 48,60,76 (optional)
External Dimensions (LxWx H)(mm) 1970×780×(1280-1460)
Net Weight(kg) 160
