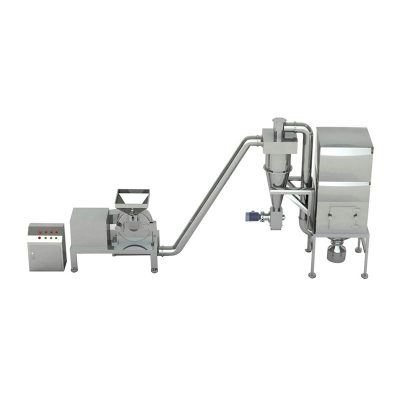

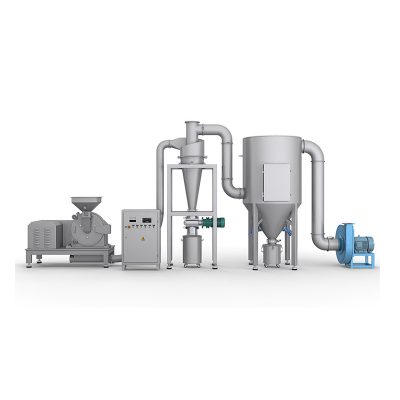

WF Series Dust Collecting Fine Crusher

Category:

Introduction:

Main Application:Applied for such trades as pharmaceutical, chemical and foodstuff ect., This machine is a new generation fine crushing equipment combining crushing and dust collection as a whole.

Working principle:This machine is a hammer typed crusher with high speed. The material is fed into the crushing chamber through a hopper by a conveyor and crushed by high speed rotating hammer. The crushed material is enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by the dust collector through a bag. Designed according to “GMP” standard and wholly made of stainless steel, this machine has no flying dust during production. And can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.

Feature:

This machine is simple in structure, easy to assemble and clean the crushing chamber, and all parts contacting the material are made of stainless steel,acid and corrosion resistant, making crushed material be in conformity with hygiene requirement. In addition, this machine has smooth operation, convenient move, low noise, high crushing effect and low power consumption.

Specification:

Model Production Capacity Feeding Size Crushing Fineness Crushing motor Feeding motor Dust collecting motor Fine Crusher Overall dimension Dust Collecting Overall dimension weight
WF–180B 30-80kg/h ≤1mm 80-400mesh 2.2kw 0.18kw 1.5kw 850x600x1350mm 550*550*1350mm 320kg
WF-320B 100-300kg/h ≤5mm 80-400mesh 11kw 0.18kw 1.5kw 1150x550x1350mm 600*550*1350mm 450kg
