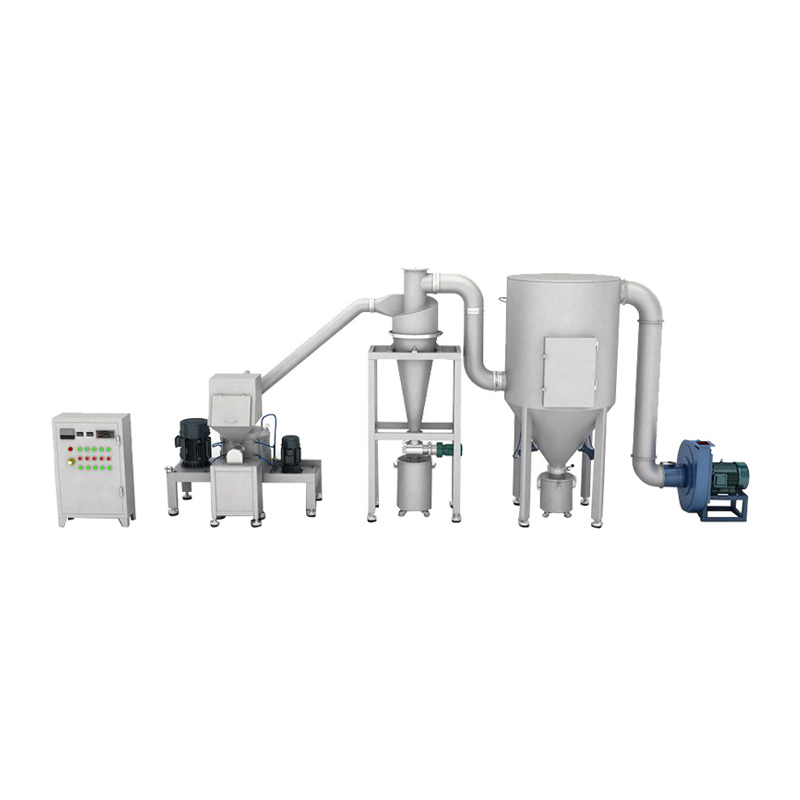

WFJ Series Dust Collecting Fine Crushing Set

Category:

Introduction:

Main Application:Comprised of main frame, auxiliary machine and electrical control cabinet, this machine has such performances as winnowing, screen or mesh free, uniform size and continuous operation, and has reached the international advanced level, thus being widely used for material crushing in pharmaceutical, chemical and foodstuff trades etc..

Working principle:The material is fed into the crushing chamber by a screw conveyor, cut and crushed by high speed rotating blade and conveyed to the cyclone separator by means of negative pressure air conveyance before being discharged by bag type collector, and the dust is filtered and recovered by dust collector through filter barrel Having no dust flying during production, it can improve utilization rate of the material and reduce the cost of enterprise.

Feature:

This machine is simple in structure, easy to assemble and clean the crushing chamber, and all parts contacting the material are made of stainless steel,acid and corrosion resistant, making crushed material be in conformity with hygiene requirement. In addition, this machine has smooth operation, convenient move, low noise, high crushing effect and low power consumption.

Specification:

Model Production Capacity Feeding Size Output size Total power Main Speed overall dimension weight
WFJ-300 10-100kg/h ≤10mm 60-450mesh 13.5kw 5800r/min 4200*1200*2700mm 1000kg
WFJ-450 50-250kg/h ≤10mm 60-450mesh 19.3kw 5200r/min 4300*1350*2700mm 1500kg
WFJ-520 80-500kg/h ≤10mm 60-450mesh 39.05kw 5000r/min 7920*1480*3290mm 2500kg
WFJ-630 200-1500kg/h ≤10mm 60-450mesh 75.3kw 4500r/min 9500*1800*3730mm 3200kg
