Laser Marking Machine

PORTABLE FIBER LASER MARKING MACHINE RMD-PL400A

Description

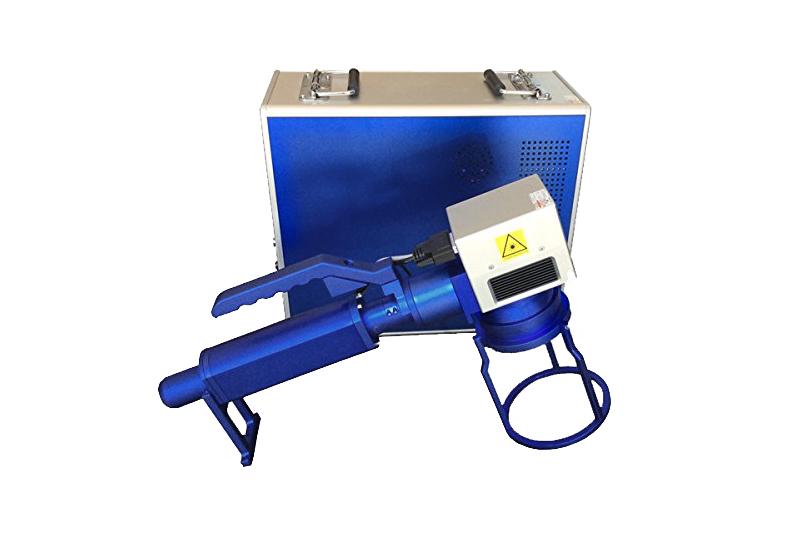

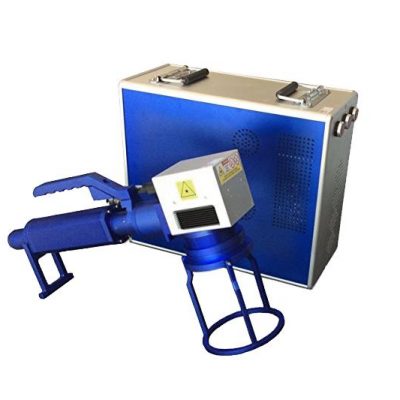

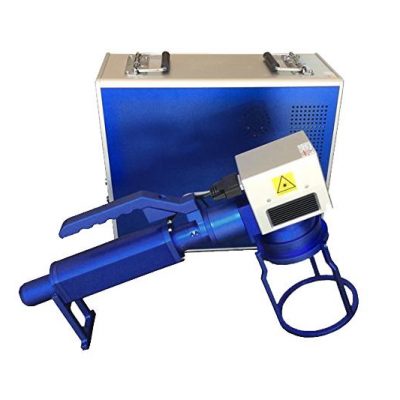

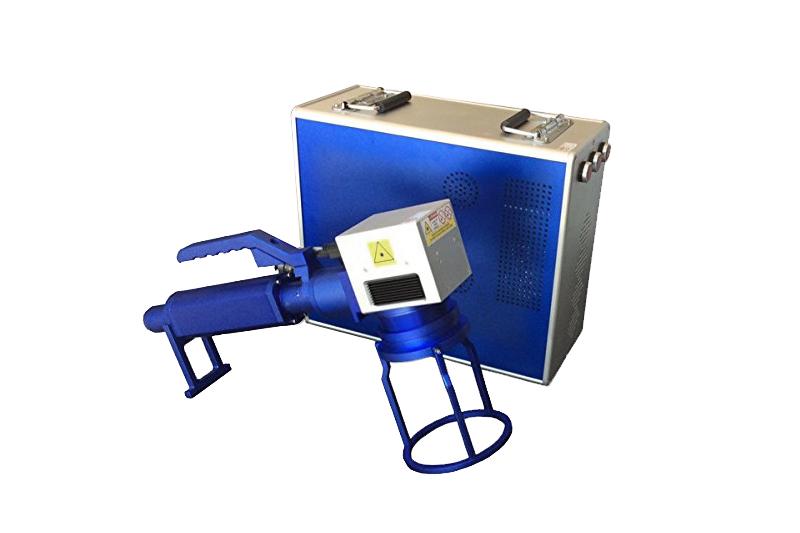

PORTABLE FIBER LASER MARKING MACHINE RMD-PL400A

This Fiber Laser Marking Machine with perfect performance and high speed, can be highly integrated with all optical electronics and mechanical devices such as the laser, computer, automatic control. And more, the laser is characteristic with high peak power and excellent beam quality. Good touch interface and powerful control system can be extremely enjoyed by you. With modular design, separate laser generator and lifter, it can marker on bigger area and complicated surface on aluminum, copper, gold and silver without the shadow and virtual open phenomenon for engraving bar codes, decorative map, LOGO, factory number, production date.
PL400a is the handheld Fiber laser marking system with standard configuration allows many different marking options to meet any production need. PL400a has an extremely versatile unit which can be moved easily for convenient operation to many locations and is capable of marking materials ranging in size from minuscule to considerably large equipment that would not fit into traditional marking systems.
PL400a Series Fiber laser marking machine used for engraving metallic and some non-metallic material, specially used in the area which need good demand of the depth, smoothness and accuracy. PL400a handheld Fiber Laser Marking Machines are available in three different powers as 20W / 30W/ 50W.

Application Field:

Materials:Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )

Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)

Industry:Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

Product Advantages:

1. Optical Fiber Laser, environment friendly, easy maintenance.

2. Life of the laser can be up to 100000 hours.

3. Runs without consumable spare parts, no need maintenance, great for continuous working.

4. Good touch interface and powerful control system.

5. Advanced digital high speed scanning galvanometer.

6. Small volume, quick speed, good stability

7. New & Original EZCAD Laser marking software

PCX, DXF, support PLT, BMP, SHX, TTF font can be used directly

8. Software running on the WINDOWS platform, English interface, compatible with Coreldraw, AutoCAD, software such as Photoshop file

Technical Parameters:

Machine Model PL400A-20 PL400A-30 PL400A-50
Laser Power 20w 30w 50w
Laser Wavelength 1064nm 1064nm 1064nm
Fiber Length 2.5m 2.5m 2.5m
Cable Length 1.5M or Customize longer
Laser Unit Using Life 100,000 Hours 100,000 Hours 100,000 Hours
Marking Speed ≤7000mm/s(Character marking speed and production line speed depend on material, character size and desired marking quality)
Marking Speed 2-3 digital(2*3mm)/0.01s 3-5 digital(3*5mm)/0.01s 3-5 digital(3*5mm)/0.01s
Marking Deepth 0.01-0.1mm(Based on Material) 0.01-0.2mm(Based on Material) 0.01-0.2mm(Based on Material)
Min.Line Width 0.01mm 0.01mm 0.01mm
Min.Character Height 0.2mm 0.2mm 0.2mm
Marking Filed F160/110*110mm,F210/145*145mm,F254/175*175mm,or Customize longer
Power Supply 220V/110V 50HZ/2A 220V/110V 50HZ/2A 220V/110V 50HZ/2A
Power Consumption 600W/Hour 600W/Hour 600W/Hour
Cooling Air Air Air
Positioning Visible Red Power Visible Red Power Visible Red Power
Operating Temperature 0°C-40°C 0°C-40°C 0°C-40°C
