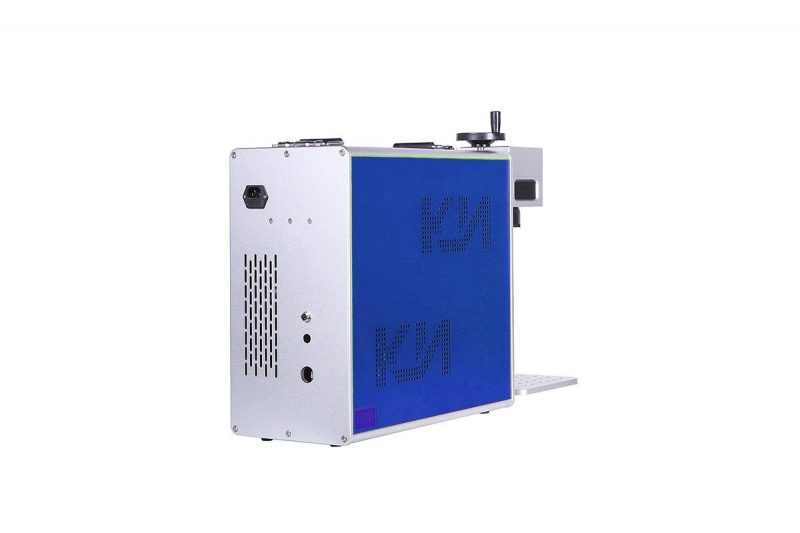

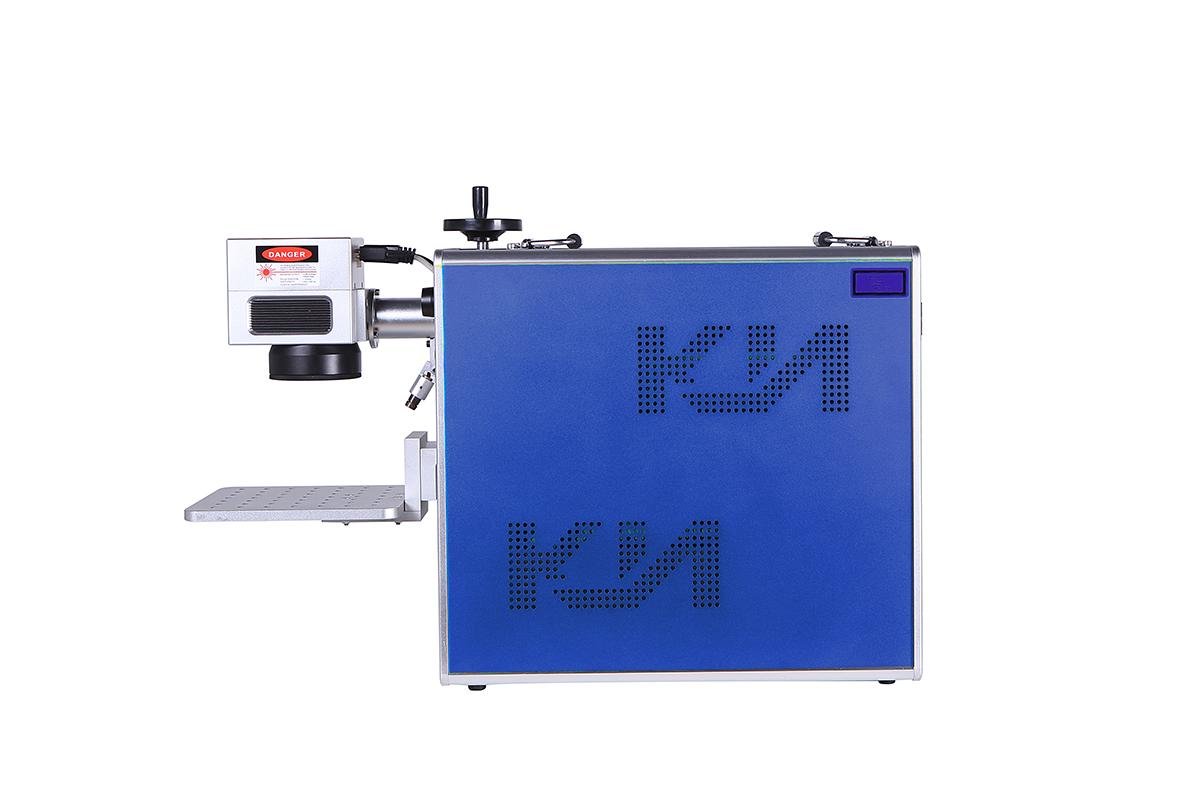

HANDHELD FIBER LASER MARKING MACHINE RMD-PL400B

HANDHELD FIBER LASER MARKING MACHINE RMD-PL400B

The precision fiber laser marking machine offers a complete solution for fast speed marking on metal and non-metal materials,such as some hard plastics. The mini fiber lasermarker meets user’s various requirements for elaborate patterns.
This type of small laser marking machine is worldwide accepted in the market of less weight metal marking. The machine also can be called mini fiber laser marking machine,small laser marking machine,mini fiber laser marker,small fiber laser marker,mini fiber laser engraver,mini fiber laser engraving machine,laser engraving machine metal.

Application Field:

Materials:Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )

Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC PR PE pipe, medical equipment, packaging bottles, etc.)

Industry:Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

Product Advantages:

1. Optical Fiber Laser, environment friendly, easy maintenance.

2. Life of the laser can be up to 100000 hours.

3. Runs without consumable spare parts, no need maintenance, great for continuous working.

4. Good touch interface and powerful control system.

5. Advanced digital high speed scanning galvanometer.

6. Small volume, quick speed, good stability

7. New & Original EZCAD Laser marking software

PCX, DXF, support PLT, BMP, SHX, TTF font can be used directly

8. Software running on the WINDOWS platform, English interface, compatible with Coreldraw, AutoCAD, software such as Photoshop file

Technical Parameters:

Machine Model PL400B-20 PL400B-30 PL400B-50
Laser Power 20w 30w 50w
Laser Wavelength 1064nm 1064nm 1064nm
Fiber Length 2.5m 2.5m 2.5m
Cable Length 1.5M or Customize longer
Laser Unit Using Life 100,000 Hours 100,000 Hours 100,000 Hours
Marking Speed ≤7000mm/s(Character marking speed and production line speed depend on material, character size and desired marking quality)
Marking Speed 2-3 digital(2*3mm)/0.01s 3-5 digital(3*5mm)/0.01s 3-5 digital(3*5mm)/0.01s
Marking Deepth 0.01-0.1mm(Based on Material) 0.01-0.2mm(Based on Material) 0.01-0.2mm(Based on Material)
Min.Line Width 0.01mm 0.01mm 0.01mm
Min.Character Height 0.2mm 0.2mm 0.2mm
Marking Filed F160/110*110mm,F210/145*145mm,F254/175*175mm, or Customize longer
Power Supply 220V/110V 50HZ/2A 220V/110V 50HZ/2A 220V/110V 50HZ/2A
Power Consumption 600W/Hour 600W/Hour 600W/Hour
Cooling Air Air Air
Positioning Visible Red Power Visible Red Power Visible Red Power
Operating Temperature 0°C-40°C 0°C-40°C 0°C-40°C
