NJP-3800C Fully Automatic Capsule Filling Machine

NJP-3800C Automatic Capsule Filling Machine

Description

video:

Introduction:

NJP-3800C automatic capsule filling machine produced by our company is the innovative product of the third generation. It not only covers all the functions and effects of the domestic capsule filling machine of the same model, but also has four innovative technologies: a. structure of the machine base has been improved; b. turntable structure has been innovated; c. filling structure has been innovated; 4. Finished capsule outlet structure has been innovated; 5. Device to separate the powder and defective capsule has been innovated, three of which has been issued the utility model patent certificate by the national intellectual property administration, PRC. The technologies innovations have improved significantly the operation efficiency, achieving a capsule separating rate of 99.99% and a qualified rate of finished capsule of 99.8%. The new machine is easier to maintain and operate, being well received by customers at home and abroad.
Feature:

  1. Opening and locking of capsule can be controlled automatically which is safe and convenient.
  2. Equipped with inching control system, which makes it easy and convenient for cleaning, loading and unloading of upper and lower dies.
  3. Equipped with gate control security system and mechanical failure security system, which provides functions of automatic alarm and shutdown.
  4. Automatic alarm and shutdown will be activated when lacks empty capsule or powder.
  5. Rich functions designed on the HMI, including counting and displaying functions during the production, and it is able to link with printer, if needed, for printing information including date of production, lot number, quantity, etc.

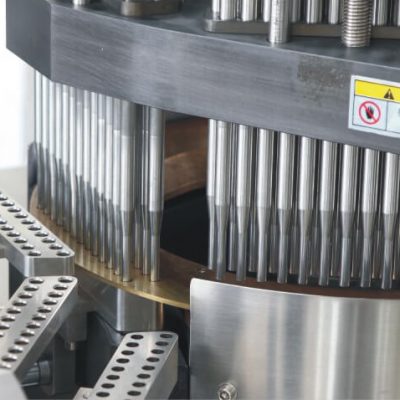

  6. Shafts of capsule absorbing, pushing, locking, as well as defective capsule rejecting are all sealed with two layers of sealing ring, among which the first sealing adopts Nitrile Butadiene Rubber (NBR) to prevent lubrication from losing, and the second sealing uses imported silicone rubber sealing ring (SIL) to prevent powder from entering bearings, which has effectively solved the problem of bearing damage and shaft jamming because of powder leakage.

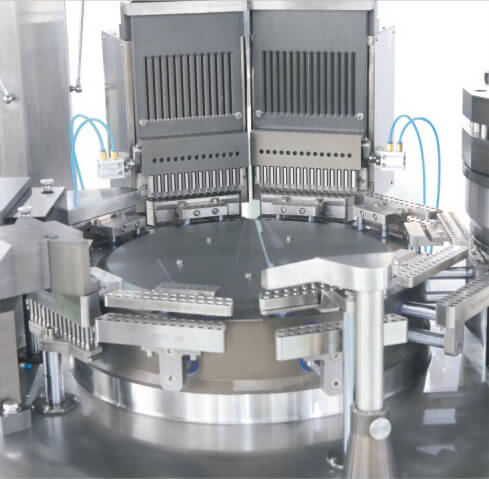

  7. The two horizontal shafts of high-precision fully enclosed turntable adopts PTFE oil-free bearings, which are sealed with imported silicone rubber sealing ring (SIL) for preventing powder from entering the inside room of the turntable, ensuring running accuracy of the turntable, without needing to maintain and add lubrication permanently.
  8. The plane cams are running in the mode of double rails, where the two axes run out separately. It can improve the operation accuracy and meanwhile eliminate the possibility of collision between the lower die and the dosage disc.
  9. The high precision cam splitter uses optical dividing head of German Zeiss. The dividing spindle is machined in the CNC all at once, which has ensured accuracy dividing of the turntable and dosage disc while the machine runs fast, thus ensuring the precision of filling. Higher precision of cam splitter also provides the machine longer service life.
  10. The operating cams are all processed with 20crmoti carburizing and quenching treatment, and then machined in CNC grinding machine all at once, which has ensured the accuracy and unity of the cams and provided a longer service life.

Specification:

Model NJP-3800C
Filling capacity 228000pcs per hour
Weight 2200Kg
Dimension 1500×1200×2200mm
Power supply 380/220V   50Hz
Total power 10.5KW
Segment bores 27 holes
Vacuum 120m3/h-0.04-0.08Mpa
Dust collector 24.5Kpa  210m3/h
Air compression Air consumption 7m3/h  Pressure 7-8Kg
Operating noise <75DB(A)
Filling percentage Empty capsule 99.9%   filled capsule 99.8%
Capsule size 00,0,1,2,3,4,5#   safety capsule A-E
Filling accuracy Western medicine ±3%   Chinese medicine ±4%
Suitable for Powder, Granule, Pellet, Tablet.
