| Model |

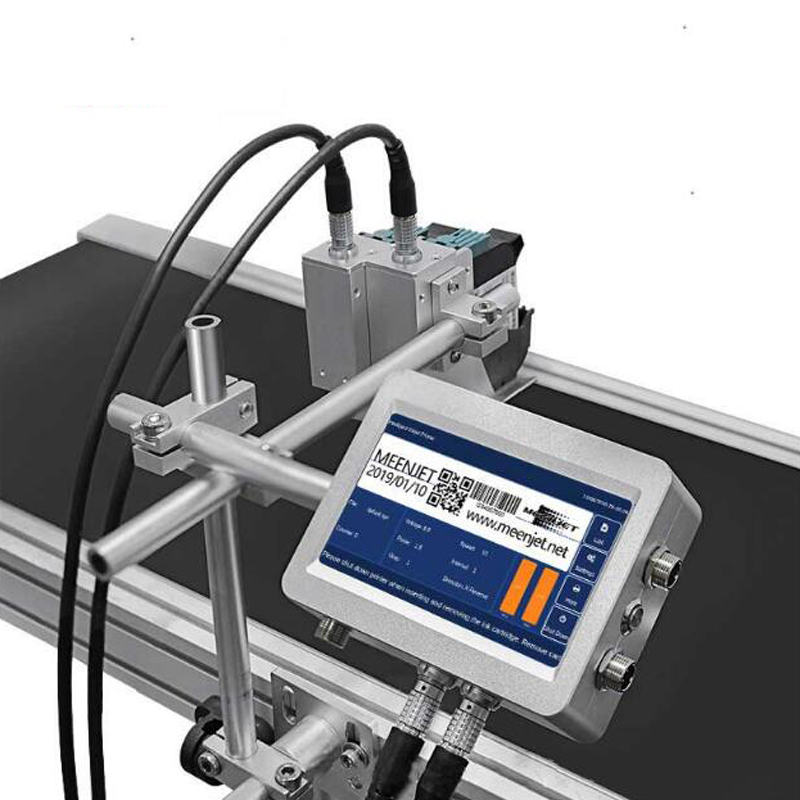

MX2 Batch Coding Machine |
| Nozzle |
TIJ 2.5 Thermal foaming nozzle |
| Operating system |
Linux |
| CPU |
Quad core 1.4Hz |
| DPI |
600 maximum |
| Screen size |
5 inch |
| Language |
English, Chinese, Turkish, Arabic, Korean, Italian |
| Shape features |
Aluminum alloy |
| Dimension |
Controller: 130*100*42mm, Print head: 90*110*107mm |
| Net weight |
Controller: 0.5KG, Print head: 0.5KG |
| Printing height |
12.7*2 mm |
| Printing distance |
2-5 mm |
| Print content |
Text, time, batch number, serial number, logo, QR code, barcode |
| Storage |
the system can store more than 1000 message (external USB makethe information transfer in a free way) |
| Printing length |
2000 characters for each message, no limitation on length |
| Printing speed |
70m/min |
| Ink colour |
Black, white, red, yellow, blue, green |
| External interface |
USB, Photoelectric interface, RS232 |
| Powerconsumption |
30 W |
| Voltage |
220V±20% AC input, 30V/10A DC output |
| Workingenvironment |
Temperature:0 – 45℃（best 20-30℃）; Humidity: 40% – 60% Rh |
| Printing material |
board, carton, stone, pipe, cable, metal, plastic product, electronic, thefiber board, light steel keel, aluminum foil, etc. |
