Description
Introduction:
1.FBH series is our largest heavy duty Continuous Sealer. Designed to handle and seal extra large and/or extra heavy
2.Typica poducts being packaged with these unts are Constructon Aggregates,PRet Food,Grains, harcoal, Mulch, Smoking Chips,Rocks, Textiles, ertlizers,Pellets,etc. Equipped with a sealing system capable of sealing the thickest bag materials.
3.Two Pairs of Brass Heating Bars
4.One pair of Brass Cooling Bars with Forced-air Cooling System
5.You can equip with any conveyor you want to work with this machine.

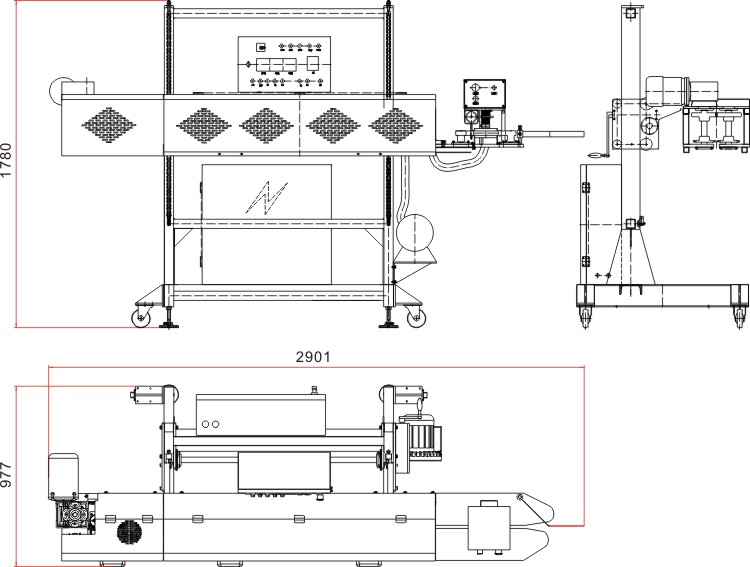

Dimension：

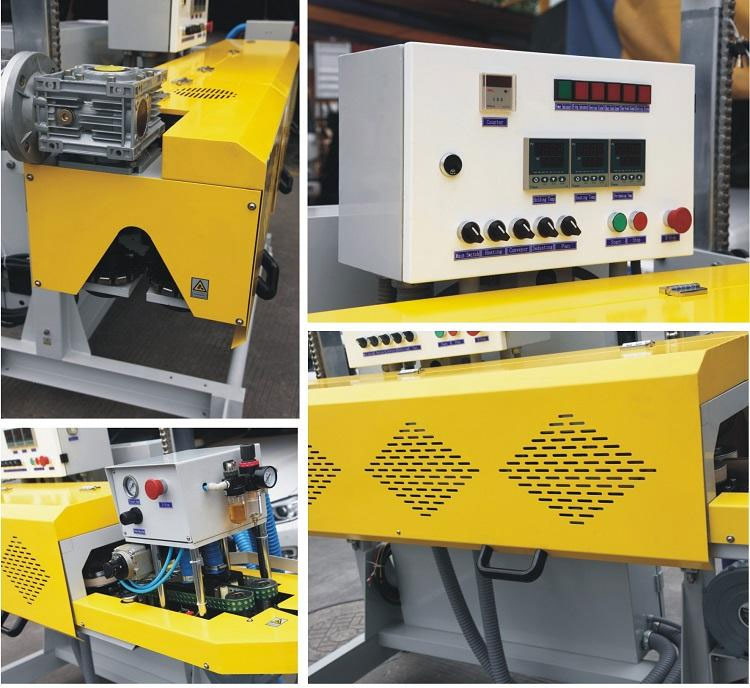

Product Detail：
Specification:
| MODEL | FBH-32 | FBH-32D |
| Voltage (V/Hz) | (3PH)AC 380/50 | |
| Gross Power (KW) | 4 | 4.5 |
| Transmission Power (KW) | 0.75 | |
| Heating Power | 0.5×6 | |
| Deduster Powe | — | 0.6 |
| Sealing Speed (m/min) | 0-12 | |
| Film Material | PE、PP、 film | |
| Bag Thickness | ≤0.8 | |
| Sealing Width | 80—10 | |
| Height From Sealing Center to the Floor (mm) | 750-1450 | |
| Temperature Range | 0-400 | |
| Air Source Pressure (Mpa) | 0.6 | |
| Cooling Type | Air cooling | |
| Deduster | x | √ |
| External Dimension(LxWxH)(mm) | 2830×950×1800 | |
| Net Weight (kg) | 320 | |
