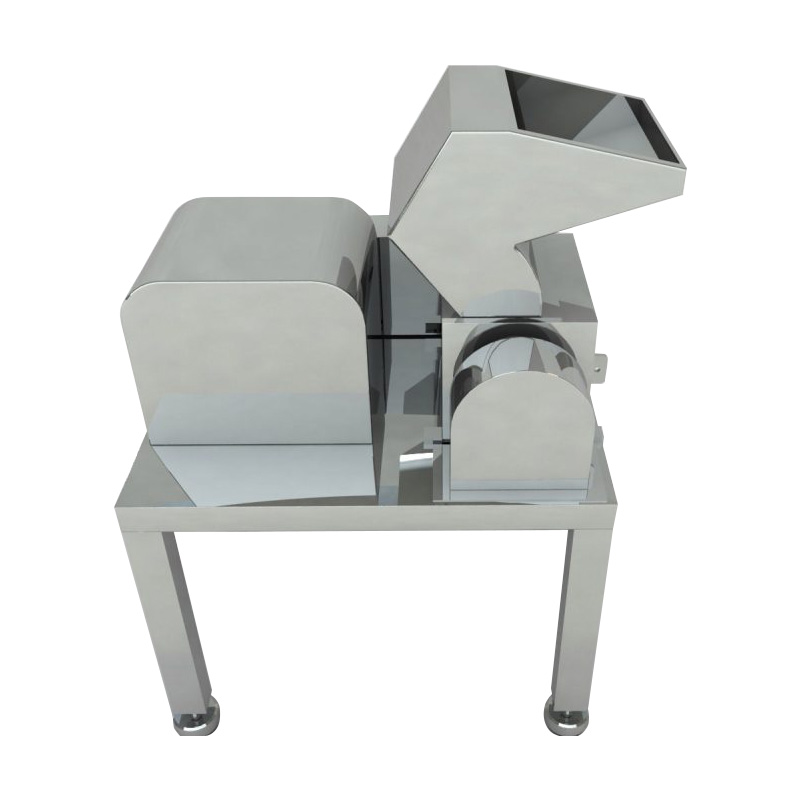

CSJ Series Coarse Crusher

Category:

Introduction:

ain Application:This machine is applied as supporting equipment, before fine crushing process in trades such as pharmaceutical, chemical and foodstuff ect., which has better crushing effect for any material without limitation on its viscosity, hardness, softness and fiber ect.

Working principle:This machine is horizontal crushing structure, and the material is fed into the crushing chamber through a hopper, crushed by cutting and impact of both fixed and rotating knives, and flows of the exit automatically under the effect of rotating centrifugal force. Designed according to GMP standard and wholly made of stainless steel, this machine has simple structure, convenient cleaning and low noise, being the ideal equipment for coarse crushing.

Feature:

This machine is simple in structure, easy to assemble and clean the crushing chamber, and all parts contacting the material are made of stainless steel,acid and corrosion resistant, making crushed material be in conformity with hygiene requirement. In addition, this machine has smooth operation, convenient move, low noise, high crushing effect and low power consumption.

Specification:

Model Prdouction Capacity Feeding Size Output Size Spindle Speed Motor Power Overall Dimension Weight
CSJ-200 IV,V 80-300kg/h ≤100mm 0.5-20mm 480r/min 3KW 900*600*1440mm 200kg
CSJ-300 IV,V 100-800kg/h ≤100mm 0.5-20mm 480r/min 4KW 900*700*1440mm 300kg
CSJ-400 IV,V 200-1000kg/h ≤100mm 0.5-20mm 480r/min 5.5KW 900*800*1440mm 380kg
CSJ-600 IV,V 500-1500kg/h ≤100mm 0.5-20mm 480r/min 11KW 1000*900*1440mm 500kg
