Description
Introduction:
In-house manufacture and technology using top quality
European components.
Aluminum head, tempered tension rollers for longer machine life.
High tension levels achieved through adjustable clip system.
Electronic control of the entire strap tensioning, sealing, cuttingand feed process.
Equipped with seal cooling timer to improve seal quality.
Incorporated selector for polypropylene and polyester strapping.
Prepared for integration into fully automatic lines.
Automatic machine for the vertical strapping of pallets with flat
top irrespective of their sizes.
XFC-1 can achieve multi-passes strapping and stretch film
wrapping over pallet. lt is widely used in various fields such as foreign trade, chemicalindustry, plastics, light
industry, electrical & mechanical.
configuration:

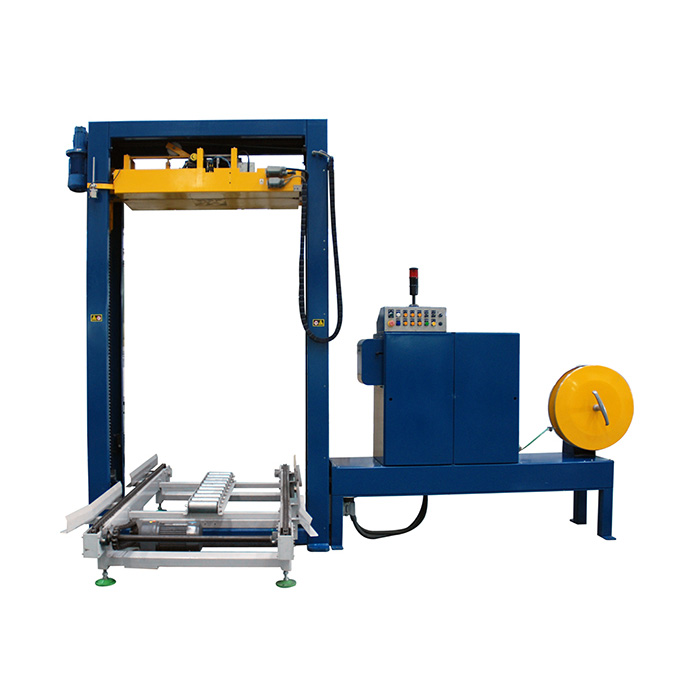

KZDT-100200 VERTICAL PALLET STRAPPING MACHINE WITH TOP SEAL
HL-2100ZAUTOMATIC PALLET STRETCH WRAPPER
SJGL-249/105 CHAIN DRIVE ROLLER CONVEYOR
SJGL-170/105 CHAIN DRIVE ROLLER CONVEYORXKC-1
CONTROL CABINET
Product Detail：
Specification:
| MODEL | KZDT-100200 |
| Voltage (VIHz) | AC 380/50 220/60 3Phase |
| Power (W) | 1000 |
| Max.Strapping size (LxH)(mm) | 1000×2000 (Standard) |
| strapping Speed (seclcycle) | ≤15-30 |
| Strapping Force (V/hz)(N) | 25-900(Adjustable) |
| Width of Strap Used (mm) | Plastic strap 9-15, thickness 0.6-1.1 |
| External Dimensions (LxWx H)(mm) | 3500×650×3045 |
| Net Weight (kg) | 380 |
