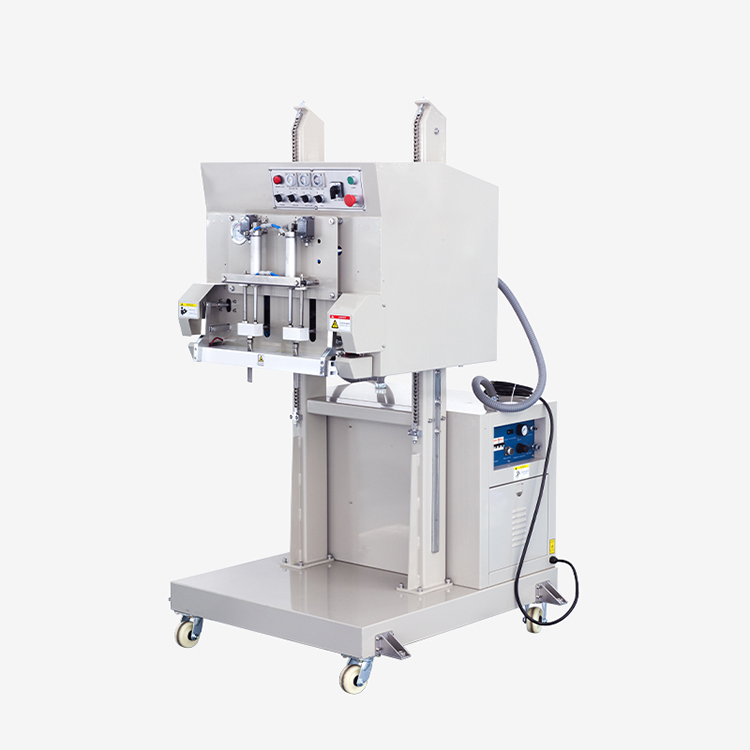

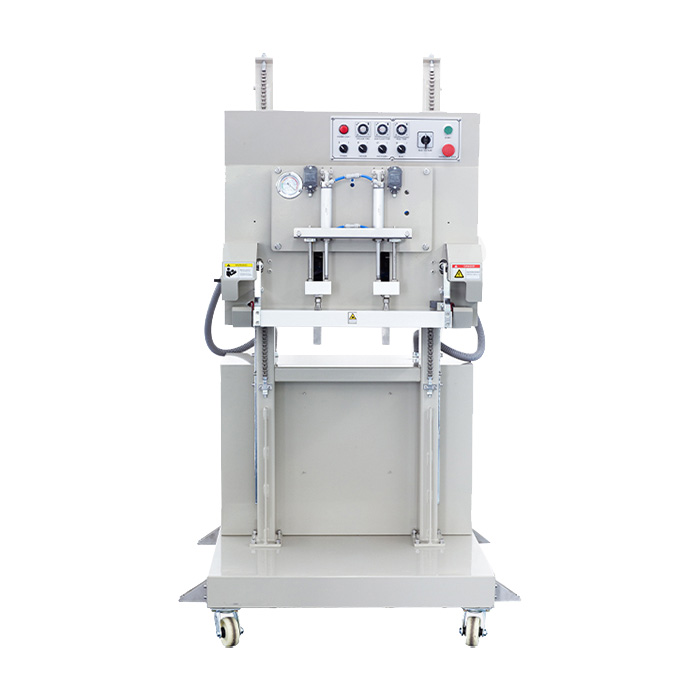

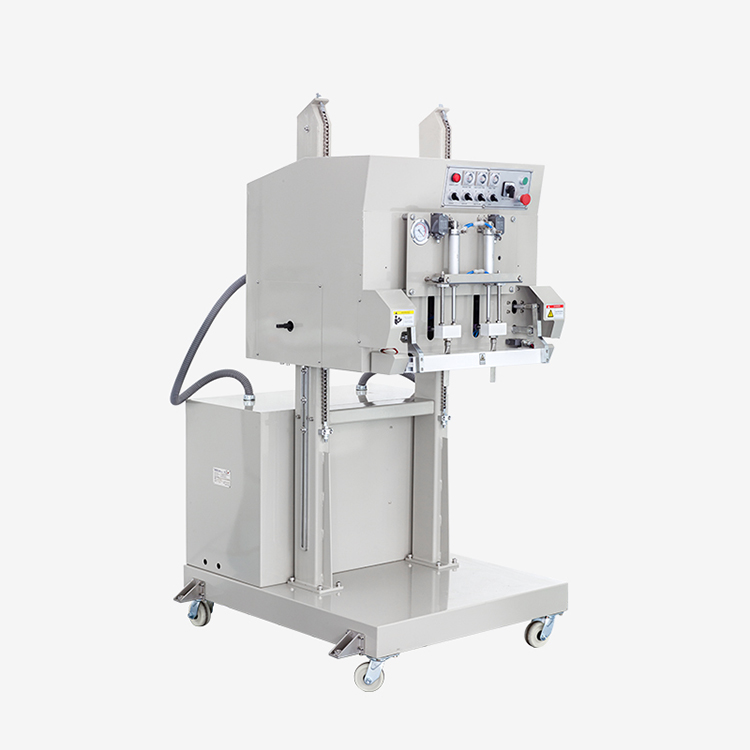

DZQ-60OLD(VS) Vacuum Gas Flushing Packaging Machine

Introduction:

1.D2Q-6C0L and is variant,Mult-Functional vacum GasFlushing Packaging Machine,are muli-functional, both for vacuum sealing, and for gas flushing vacumsealing.

2.Due to chamber-less design with double nozzles, the application is wide for low demands of vacuum percentage but high of inserting gas purity

3.DZQ-600L/S double heating model is special for thick film bag, or compound films.

4.lf heavy duty products,users can use DZQ-60OLD,whose sealing head height is adjustable. This device is helpful for big bag even weighing to tons.

5.The sealing length can be customized to 800mm or 1000mm.

6.For powder more than 100 meshes, machine should be equipped with Helx Subside Filter for collection powder to protect the vacum pump.

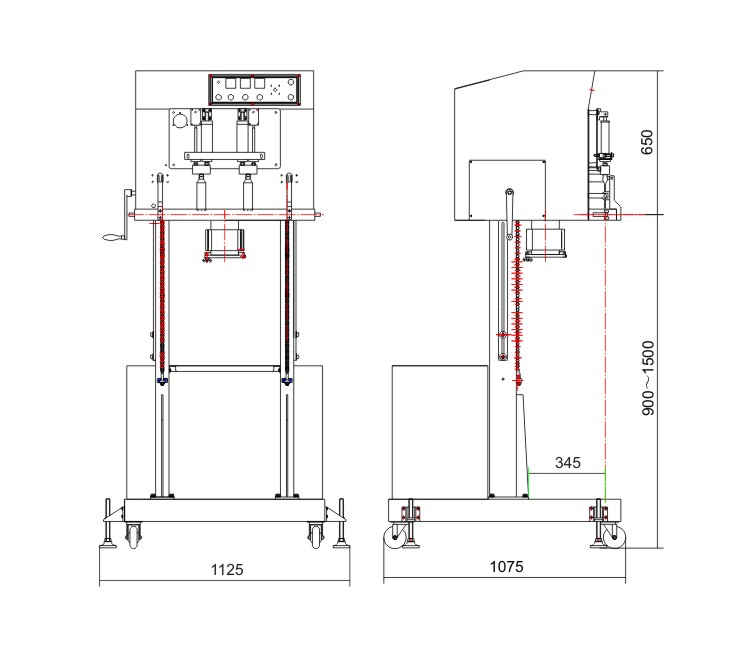

Dimension:

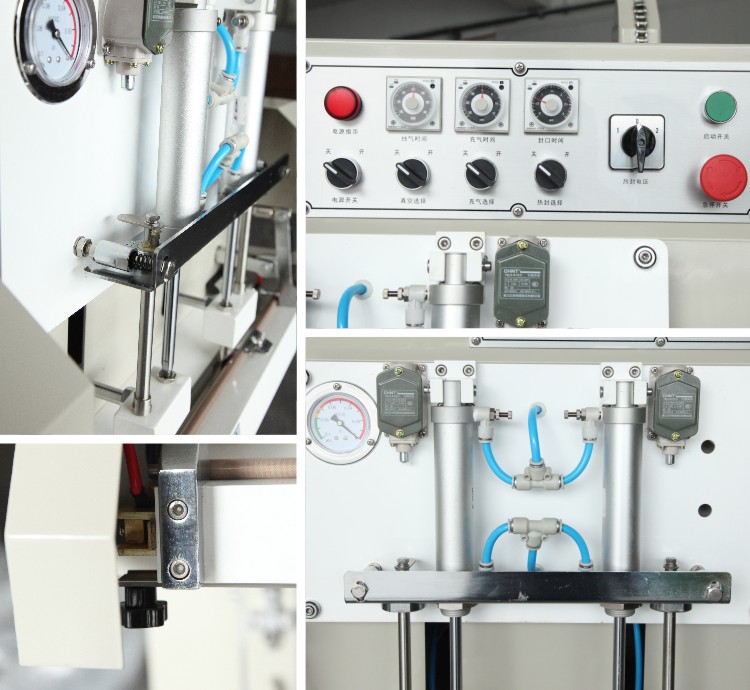

Product Detail:


Specification:

Model DzQ-600LD(/S)
Voltage (VIHz) AC 380/50 220/50
Motor power (W) 900
Sealing Power (W) 600(1000)
Sealing Length (mm) 600 800 1000
Sealing Width (mm) 10
Distance from Sealing Center to Floor (mm) 900-1500
Vacuum Pump Capacity (m3/h) 20
Film Thickness (Single Layer)(mm) ≤0.18
External Dimensions (L×W*H)(mm) 1125×1075×2150
Net Weight (kg) Approx.285
