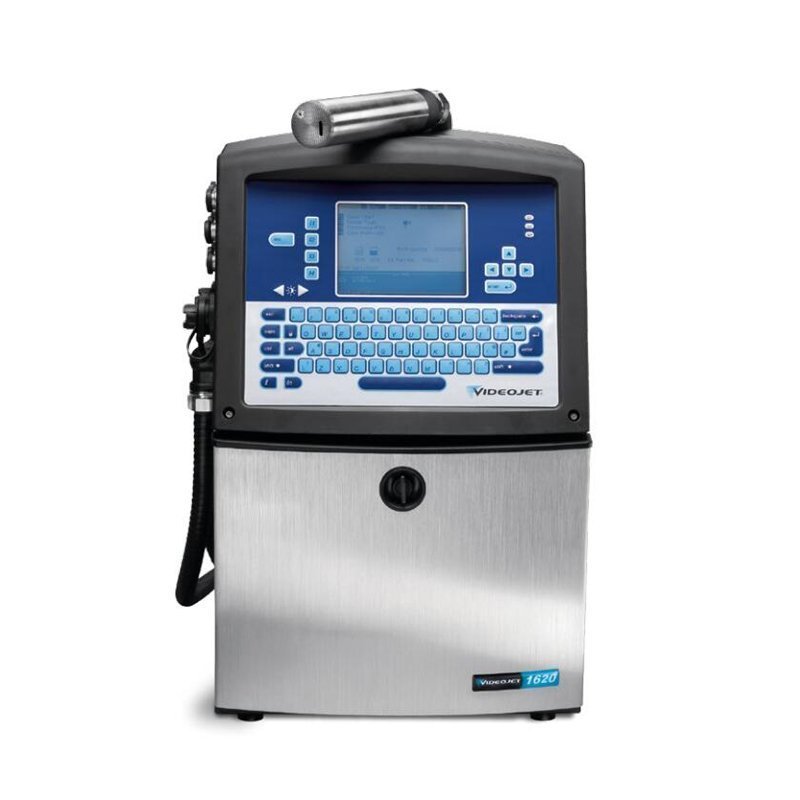

Videojet 1620 HR CIJ Printer


Availability: 999 in stock

SKU: 1566901840016 Category: Tags: ,

Videojet 1620 High Resolution continuous inket printer for industrial applications

The 1620 High Resolution (HR) printer is ideal for micro print applications where legibility is critical and print space is limited. By delivering uncompromised quality down to the smallest 0.6mm print height and speeds of up to 348m/min (1142fpm), the 1620 HR addresses demands for more content in less space.

The HR 40 micron nozzle features printhead enhancements plus specialized rasters to overcome print quality challenges inherent in shortened character heights and fast line speeds.

Speed without compromising quality:
  • High resolution nozzle ensures industry’s smallest print down to 0.6mm text height
  • Videojet’s Precision Ink Drop™ system provides precise character formation, even at the highest speeds and longer throw distances
  • Dynamic Calibration™ adjusts jetting parameters automatically to help ensure high-quality print
  • Superior technology enables you to add content at speeds up to 348m/min for single line codes
Engineered for extended runs:
  • CleanFlow™ technology resists ink build-up that can cause ordinary inkjet printers to shut down
  • Long run time between preventative maintenance; up to 14,000 hour core life
  • Internal pump means no external air, minimizing potential for contaminants to enter ink stream
  • Auto cleaning printhead for fast start-ups even after extended shutdowns
No mess, no waste fluid delivery:
  • Make-up consumption as low as 2.4 ml/hour
  • Smart Cartridge™ fluid delivery system to virtually eliminate spills and ensures the correct fluids are being used
Simple Usability via an advanced user interface:
  • Bright display with WYSIWYG and function keys for easy operation
  • User levels to separate operation from installation and maintenance
  • Prompted user fields to help reduce coding errors
Printheads 1 (40 micron nozzle)
Inks Dye Based
Maximum Lines of Print 3
Maximum Line Speed (1) 348m/min (1142ft/min)
Environmental Protection IP65
Core Life (Maintenance Interval) Up to 14,000 hours
Umbilical Length 3m (9.8ft) optional 6m (19.6ft)
Message Storage Capability 250 complex messages
Smart Cartridge™
Plug and Play Printhead Modules
Communications Ethernet, RS232, RS485
Linear and 2D Bar Codes
Positive Air / CleanFlow™
Expanded I/O Ports and Control
Display (User Interface)
