Printing Sealer-3

Printing Sealer / FRS-10101

Description

Introduction:

1.The machine can sea all kinds of heat-sealable materials, which adopts constant temperature control system and stepless speed adjusting transmission mechanism temperature is adjustable to accommodate a wide range of applications

2.The machine works with a color ribbon printer to print the colored labels while sealing. They are able to print at high speed with instant dry and highly legible letters that have a good adhesion property.

3.Various colors are selectable.

4.Counting device is optional

5.Novel design idea and advanced manufacturing technology is adopted to make the structure of machine more reasonable and perfect. Apart from functions of sealing and printing, model FRSC-1010Ill has function of air suction

6.FRS-1010 series are available in four models: horizontal model (RS-1010), vertical model(FRS-1010. console model FRS-101ll) nd console model ith functon of air suction (FRSC-1010III)

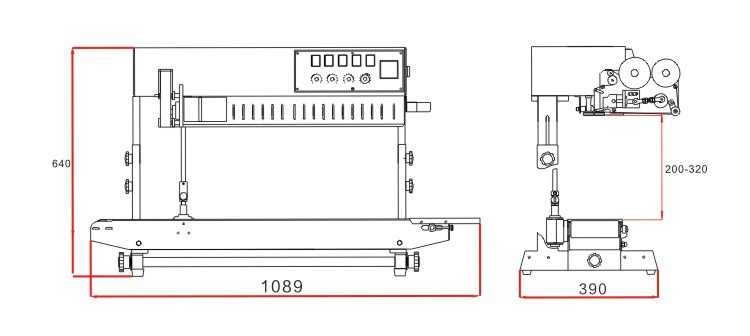

Dimension:

Product Detail:

Specification:

MODEL FRS-10101
Voltage (V/Hz) AC 220/50 110/60
Motor Power (w) 100
suction Pump Power (W) ——
Sealing Power (W) 400×2
Printing Heating Power (W) 50×2
speed (m/min) 0-12(0-16)
sealing Width (mm) 10
Temperature Range (°c) 0-300
Printing Type Color Ribbon
Distance from Sealing Center to Conveyor Table (mm) 10-40
Distance from Base plate to lnterior Conveyor (mm) 85-115
Conveyor Table Size (Lx W)(mm) 1065×205
Max. Conveyor Table Loading for Single Package (kg) ≤1
overall Conveyor Loading (kg) ≤3
External Dimensions(Lx W x H)(mm) 1065×460×500
Net Weight(kg) 41
