G-10 Series TIJ Inkjet Printer


Product Name G-10 Series TIJ Inkjet Printer
Printing Technology TIJ for 2.5
Machine Material Aviation grade aluminum
Screen Parameter 10-inch capacitive touch screen(1024*800px)
Applicable Ink Water ink / solvent ink / UV ink
Cartridge Type 12.7mm or 25.4mm Ink cartridge
Cartridge Change Printer head can change 12.7mm or 25.4mm cartridge
Max Printer Head 4P
Max Printer Height 1P Printer head:Half inch max 12.7mm  /  One inch max 25.7mm

2P Printer head:Half inch max 25mm  /  One inch max 50mm

3P Printer head:Half inch max 37mm  /  One inch max 75mm

4P Printer head:Half inch max 50mm  /  One inch max 100mm

DPI Vertical:300dpi,Horizontal:600dpi/300dpi/200dpi
Printing Speed 200*300dpi :Maximum printing speed 539m/min

300*300dpi :Maximum printing speed 130m/min

600*300dpi :Maximum printing speed 60m/min

Support Font Types 《Based on customer needs to add》
Printing Content Multilingual text / Date / Graphics / Bar code / GS1 code / Two-dimensional code / Counter / Shift / Variable data (code)
Code Type “Code 39” “Code 128”  “UPCA”  “EAN8” “EAN13” “Data Matrix”  “EAN14”  “UPCE” “INT25”  “ITF14”  “Code 93” “PDF417” “Aztec Code”“GS1-QRcode”

“Grid Matrix”  “Code11”   “Code 39+”  “Code 16k” “Code 49” “Flattermarken”  “VIN”  “NVE-18”  “MicroPDF417”  “Micro QR Code”  “GS1 DataBar-14” “GS1DataBar-Exp”  “GS1 Data Bar-Ltd“GS1-DataBar-Stack”   “GS1-DataBar-Stack-Omni” “GS1-DataBar-Exp-Stack” “GS1-EAN128” “GS1-DM”

《Based on customer needs to add》

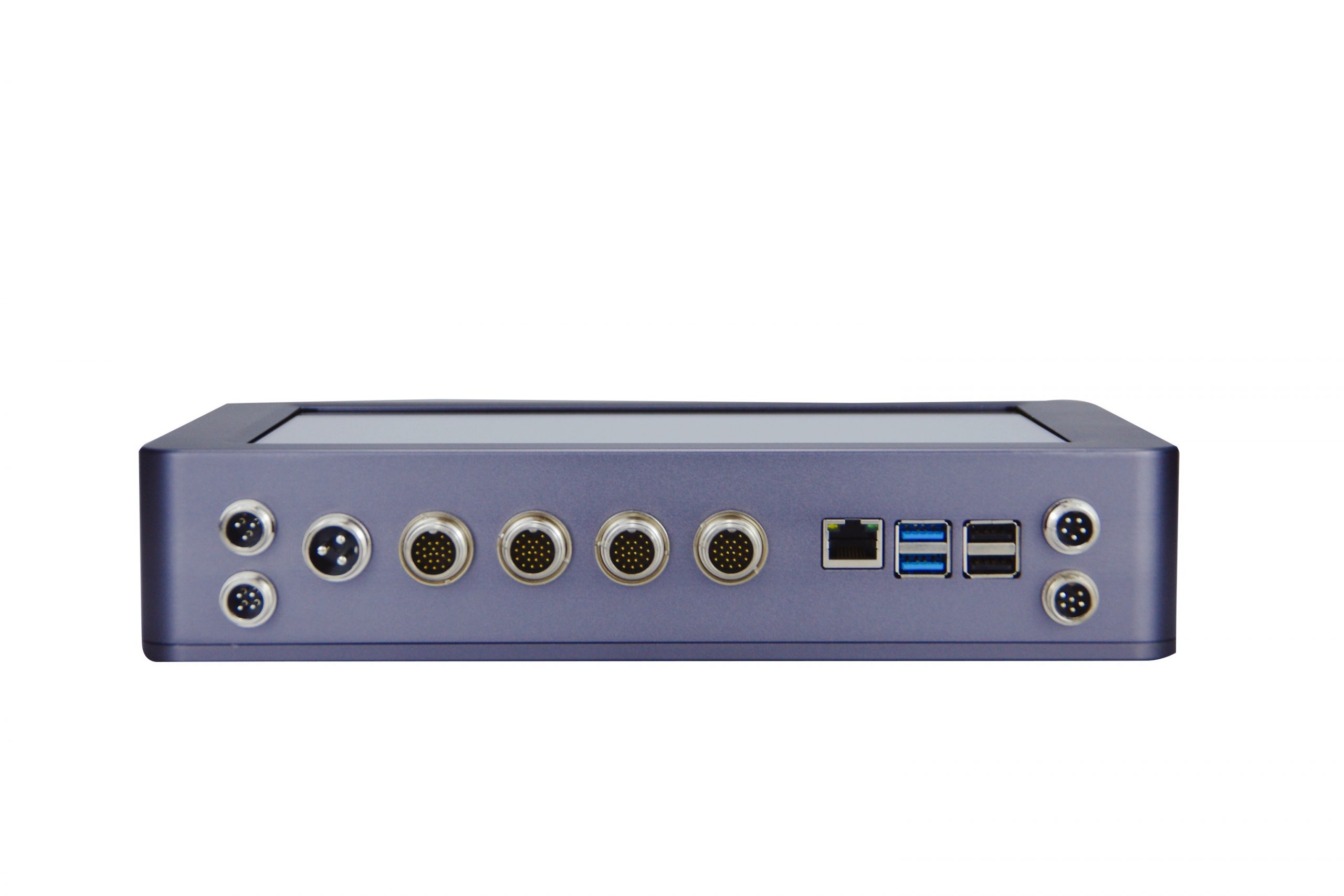

External Interface Ethernet *1USB*4D16-3*1(power)、

D12-3*1(Light eye)、D12-4*1(Encoder)、D12-5*1(Warning light)、D12-6*1(Communication protocol)、D18-22* 4(printer head)

Database Support

File Import Format

PC software format: support MS Excel, MS Access, SQL2000, SQL2005, SQL2008 and other data formats

File import format: .xls/.xlsx/.csv/.txt/table format

Support input

method language

Support 233+ languages

 (Simplified Chinese, Traditional Chinese, English, Japanese, Korean, French, Spanish, Portuguese, French, Italian, Turkish, Thai, Russian, Vietnamese, German, Dutch, Arabic,Ukrainian, Mongolian, Uzbek, Malaysian, Indonesian, etc.)


G-10 Series TIJ Inkjet Printer-4
