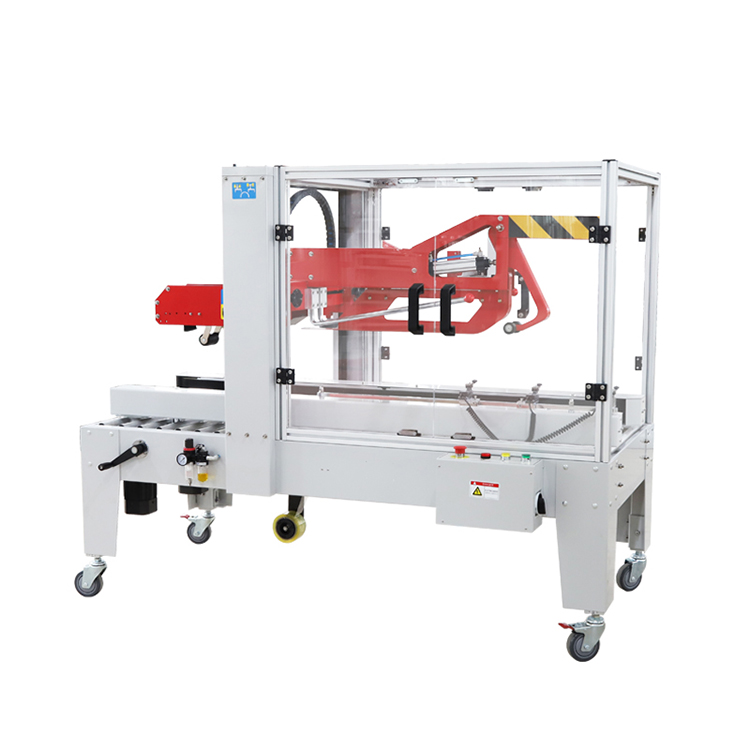

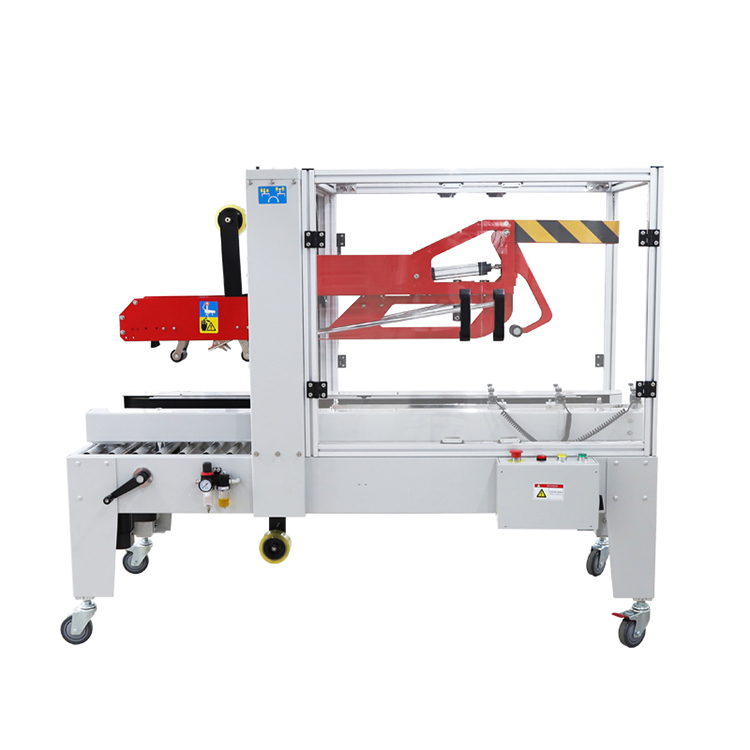

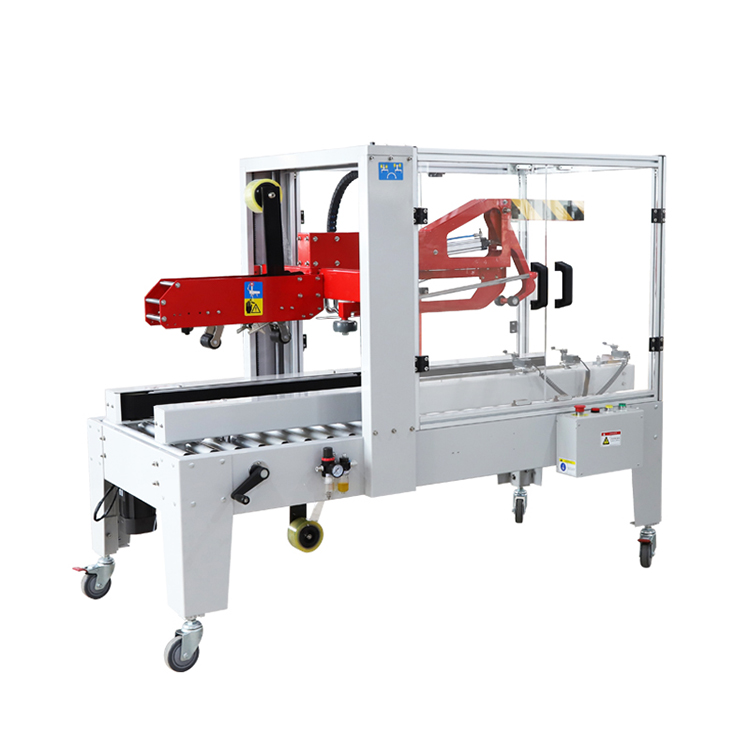

Automatic Carton Sealer / FXJ-5050ZX

Description

Introduction:

  • FX] series is designed to seal carton by applying adhesive tape
  • Cost effective, High speed
  • Easy size changeovers
  • For integration into production line or as stand alone machine
  • Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartonsThe machine folds front/side/rear flaps at high speed
  • Two-side drive belts
  • Designed with upper & bottom tape heads or just upper tape head that are ideal for sealing uniform cartons continuously
  • Model FX-ZDX. ideal for integration into production line that requires high degree of automation thanks to safety guard in the front the machine

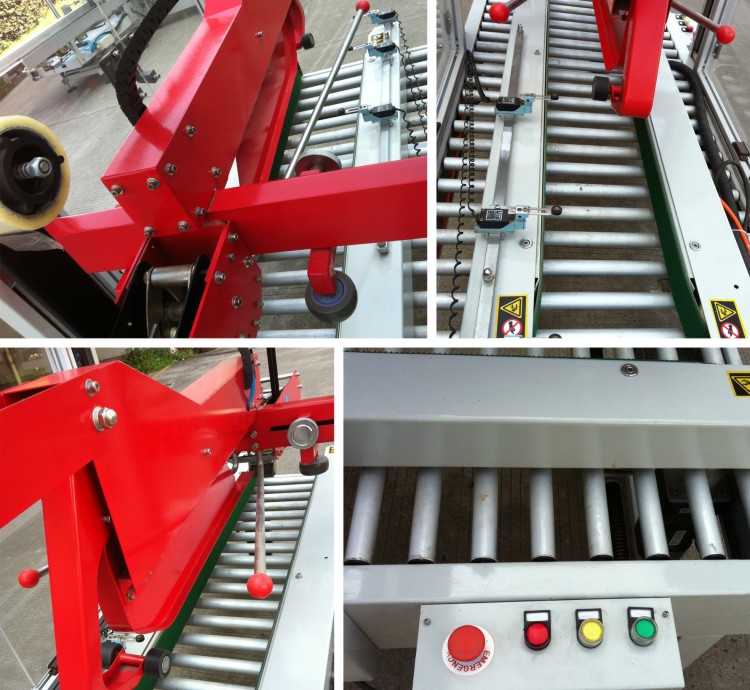

Product Detail:

Specification:

MODEL FXJ-5050ZX
Voltage (VIHz) AC 220/50 110/6o
Power (w) 260
Air compressor (Mpa) 0.4-0.6
speed (m/min) 22 m/min (25 cartons/min
Max. Carton Size (LxWxH)(mm) 600×500×500
Min.Carton size (LxWxH)(mm) 180×180×160
Adhesive Tape Materials BOPP, PVC adhesive tape, water-free adhesive tape
Height of Table (mm) According to customer’s requirement
width of Adhesive Tape (mm) 48,60,76 (optional)
External Dimensions (LxWx H)(mm) 1830×920×(1450-1600)
Net Weight (kg) 280
