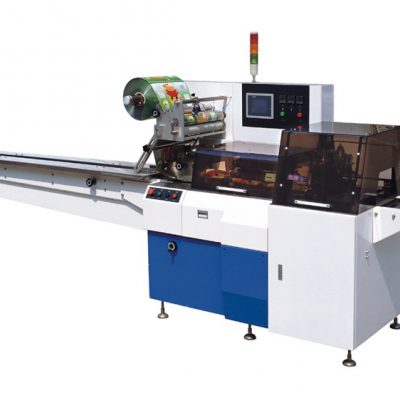

Down-Paper type Horizontal Packaging Machine / DXDZ-450X

Introduction:

Applicable to the packaging of soft longships and bulk materials such as towels,paper towels dried noodles eggroll, sausages squid, popsicles, fudge biscuits and fresh fruit.

Touch mode man-machine interface control, convenient parameter setting, high speed and high efficiency.

Using photoelectric tracking technology, digital input, sealing and cutting position is accurate.

Fault self-diagnosis and alarm display.

Adjustable temperature, intelligent control, can adapt to a variety of packaging materials.

Double frequency control, the bag length is set and cut, no need to adjust the air, one step, save labor and film.

Positioning stop function, non-stick knife, no waste film.

Product Detail:

Specification:

MODEL DXDZ-450X
Voltage (V/Hz) AC 220/50 220/60
Power (Kw) 2.8
Film Width (mm) Max.450
Length of Bag (mm) 65-190 or 120-280
Width of Bag (mm) 50-160
Height of Product (mm) Max.40
Film Roll Diameter (mm) Max.320
Packaging speed (bags/min) 40-230
External Dimensions (LxWxH) (mm) 4020×800×1450
Net Weight (kg) 900
