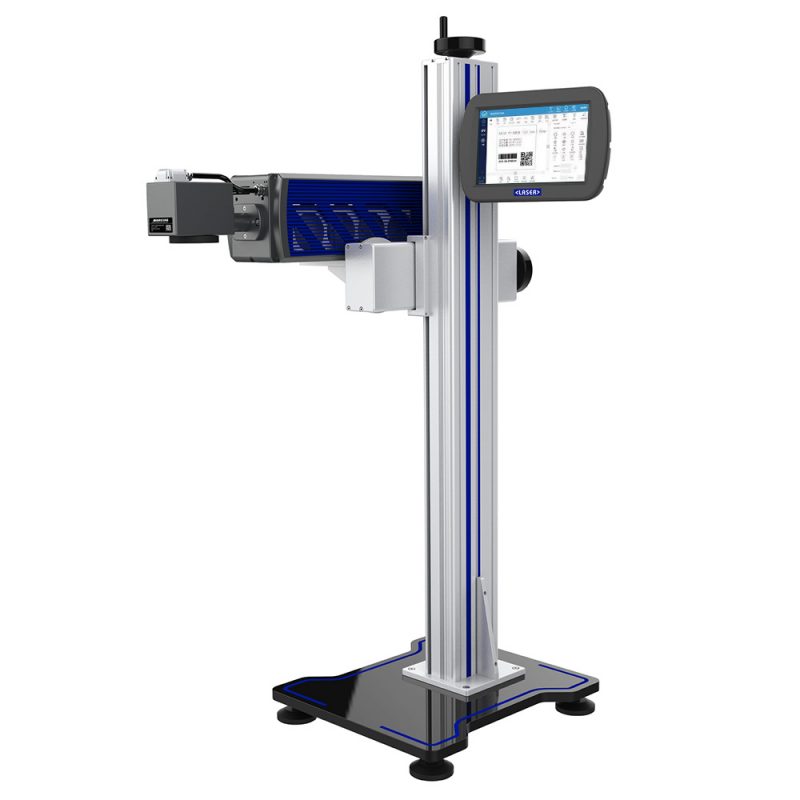

CO2 Laser Coding Machine FC-100B

Category:

Non metal such as paper, wood, acrylic, crystal and ceramics, marble, composite,Using sealed metal RF CO2 laser TH generator ,reach electro-optic conversion rate, compact size, good quality velocity of light.

Description:

Use laser to mark logo or photo on electronic products, daily necessities, packaging, gift, craft, auto parts, digital products, communication goods, building materials, electrical appliances, kitchenware, jewelry, sanitary ware, medical apparatus,photovoltaic product, commodity, hardware, and so on.

Process Materials:

Non-Metal( Suitable for leather, cloth, paper, wood, acrylic, crystal, ceramics, marble, composite materials and other non-metallic materials)

Industry: widely used in embroidery, trademark, buttons, glasses, clothing, sanitary ware, glass products, advertising materials, food and beverage packaging, pharmaceutical packaging, components, handicraft processing, stone, paper packaging, plastic products, paper labels, plastic resin, bamboo wood crafts, PCB board etc.

The marking accuracy is high, the speed is fast, and the engraving depth can be controlled.

With high laser power, it is suitable for engraving and cutting a variety of non-metal products.

No consumables, low processing cost-the laser operating life can reach 30000-40000 hours.

Clear marking, not easy to wear, high efficiency of engraving and cutting.

Machine Model FC100-20 FC100-30 FC100-50
Laser Power 20w 30w 50w
Laser Wavelength Standard 10.6um optional 10.2 or 9.3um Standard 10.6um optional 10.2 or 9.3um Standard 10.6um optional 10.2 or 9.3um
Fiber Length 2.5m 2.5m 2.5m
Cable Length 1.5M or Customize longer
Laser Unit Using Life 30000-40000 Hours 30000-40000 Hours 30000-40000 Hours
Marking Speed ≤12000mm/s(Character marking speed and production line speed depend on material, character size and desired marking quality)
Marking Speed 2-3 digital(2*3mm)/0.01s 3-5 digital(3*5mm)/0.01s 3-5 digital(3*5mm)/0.01s
Marking Deepth ≤0.5mm ≤0.5mm ≤0.5mm
Min.Line Width 0.012MM 0.012MM 0.012MM
Min.Character Height 0.15MM 0.15MM 0.15MM
Marking Filed F160/110*110mm,F210/145*145mm,F254/175*175mm, or Customize longer
Power Supply 220V/110V 50HZ/2A 220V/110V 50HZ/2A 220V/110V 50HZ/2A
Power Consumption 800W/Hour 800W/Hour 800W/Hour
Cooling Air Air Air
Positioning Visible Red Power Visible Red Power Visible Red Power
Operating Temperature 0°C-40°C 0°C-40°C 0°C-40°C
